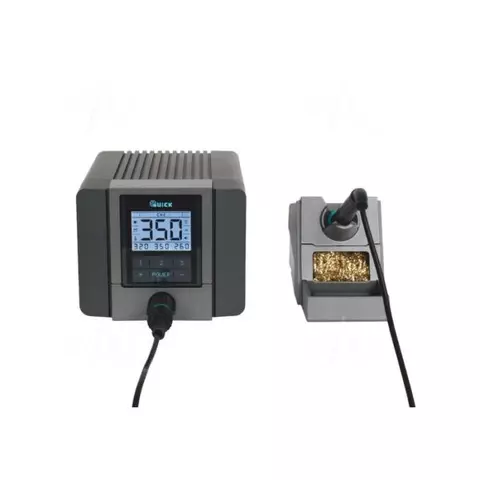

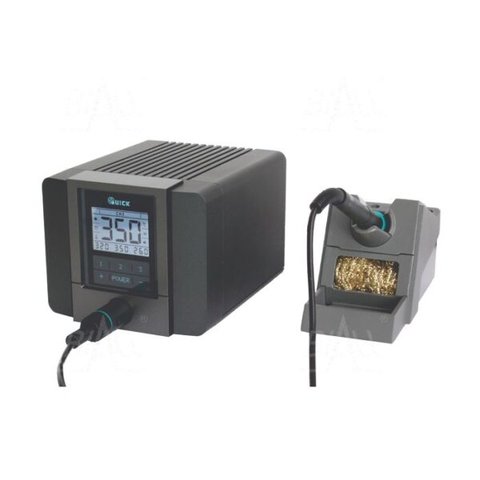

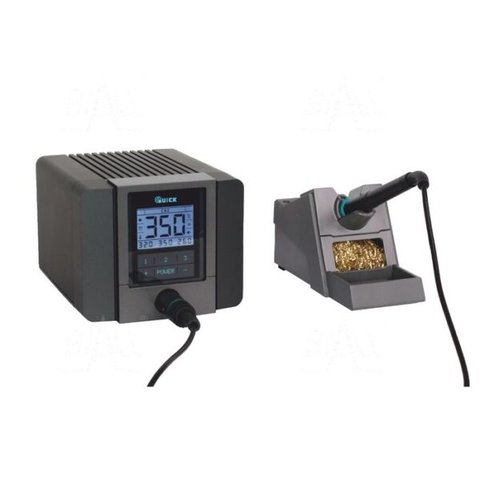

Digital Soldering Station Quick TS1200D (120 W)
id: 914036
3.5 kg Warranty: 6 months
120W digital soldering station with a temperature range of 200~420°C, designed for soldering electronic components and lead-free soldering. Read more
Inform of price reduction
Quick TS1200D is a 120W digital soldering station with a temperature range of 200~420°C designed for soldering electronic components and lead-free soldering. The device is easy-to-use and is equipped with an LCD. It is supplied with TSS02-B soldering iron tip.
Features
- Fast heating and rapid thermal recovery.
- Easy tip replacement.
- Station parameters interlock by means of PIN code.
- Compatible with various types of soldering iron tips.
- Fahrenheit and Celsius temperature switchable.
- Temperature alarm function.
- High-quality LCD for temperature display.
- Saving 3 temperature values for fast adjustment.
- Auto shutdown function.
- Easy digital temperature calibration.
- ESD safe design.
- Modern and compact design.
Technical Specifications
Model | Quick TS1200 | Quick TS1200D |
---|---|---|
Power consumption | 120 W | |
Operating voltage | 110 V/220 V AC | |
Temperature range | 200~420°C | |
Temperature stability | ±2°C (still air without load) | |
Tip to ground resistance | <2 Ω | |
Tip to ground potential | <2 mV | |
Soldering tip | Quick TSS02 series | |
Dimensions | 137 mm × 168 mm × 114 mm | |
Weight | 2.8 kg | |
Computer control (network connection) | yes | no |
Package Contents
- Digital Soldering Station TS1200D (120 W) — 1 pc.
- Soldering Iron Tip TSS02-B — 1 pc.
- Soldering Iron — 1 pc.
- Soldering Iron Stand — 1 pc.
- Power Cord — 1 pc.
- Holder for Quick Tip Change — 1 pc.
- Antistatic Cable — 1 pc.
Compatible Soldering Tips
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
