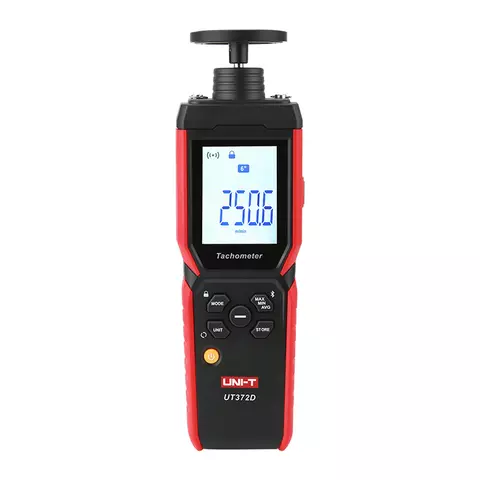

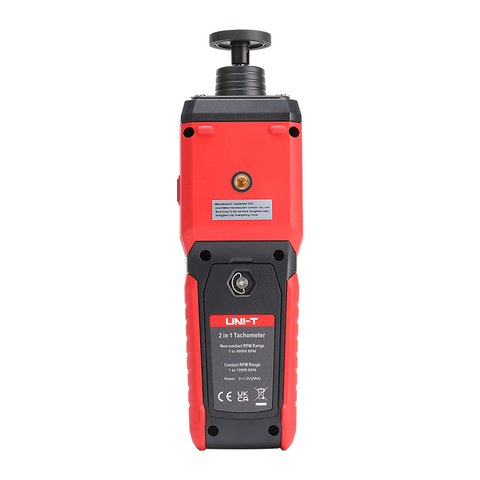

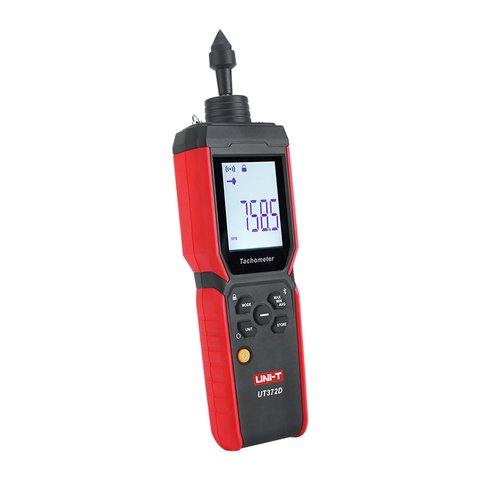

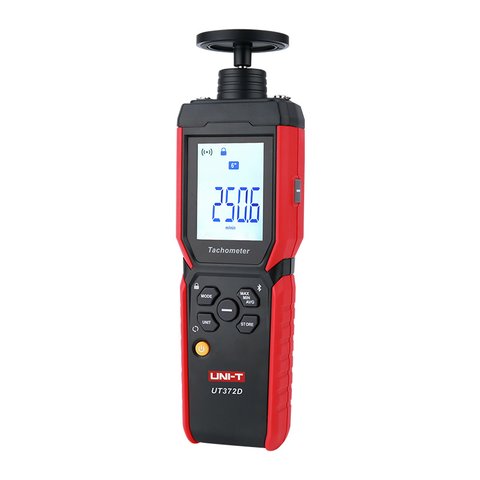

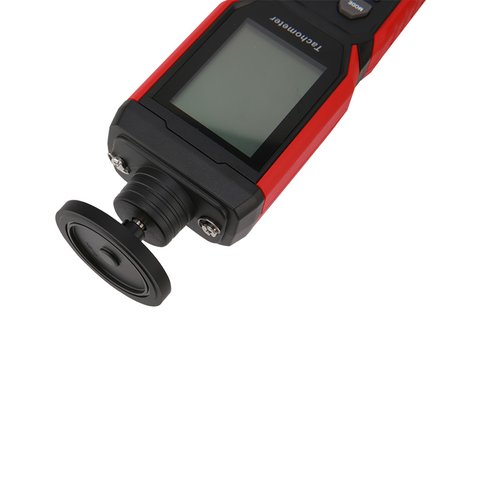

Digital Tachometer 2-in-1 UNI-T UT372D
id: 912231
1 kg Warranty: 24 months
Features contact and non-contact measurements. The tool is used to measure revolutions per minute (RPM), frequency, surface velocity, and length. Read more
Inform of price reduction
UNI-T UT372D is a reliable and safe tachometer, that combines contact and non-contact measurement modes. It is mainly used to measure Revolutions Per Minute (RPM), frequency, surface velocity, and length in the fields of motors, fans, automobiles, papermaking, etc.
Features
- Contact and non-contact measurements.
- Measure the rotational velocity, frequency, count, surface velocity and length.
- MAX/MIN/AVG/HOLD.
- Rotatable backlight LCD.
- Unit conversion.
- Comes with a Bluetooth APP that makes it easy to view data, export charts and perform other operations on the smartphone.
- Auto power off.
- Store up to 10 groups of data.
Technical Specifications
Function/mode | Range | |
---|---|---|
Non-contact (optical) measurement | Rotational velocity (RPM) | 1-99,999 |
Frequency | 1-1,666 Hz | |
Count (REV) | 1-99,999 | |
Target distance | 50~500 mm | |
Contact measurement | Rotational velocity (RPM) | 1-19,999 |
Frequency | 1-333 Hz | |
Surface velocity | 0.1m wheel: 0.1-1,999 m/min 0.4-6,550 ft/min 4-78,700 in/min |
|
6” wheel: 0.15-1,524 m/min 0.5-5,000 ft/min 6-60,000 in/min |
||
Length | 0-99999 (m/ft/in) | |
Accuracy | ±0.02% ±1 digit | |
General Specifications | ||
Contact measurement unit | m/min, ft/min, in/min, m, ft, in | |
Statistical measurement | Max/Min/Last reading/Average | |
Data storage | 10 groups | |
Operating temperature/humidity | 0°C~50°C; ≤80%RH | |
Storage temperature/humidity | -20°C~60°C; ≤80%RH | |
Drop test | 1 m | |
Auto power off | after about 15 minutes of inactivity | |
Power | AAA 1.5V × 3 pcs. | |
Dimensions | 176 mm × 63 mm x 38 mm | |
Weight | about 181 g (without batteries) |
Video
User manual
Download UNI-T UT372D user manual.
Package Contents
- Digital Tachometer 2-in-1 UNI-T UT372D — 1 pc.
- Shaft contact (internal cone) — 1 pc.
- Shaft contact (cone) — 1 pc.
- 0.1 m contact wheel — 1 pc.
- 6-in contact wheel — 1 pc.
- . Reflecting tape — 10 pcs.
- User manual — 1 pc.
- Safety Instructions — 1 pc.
- Quick start guide — 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
