External Vibration Sensor Fluke 805ES
id: 904496
External Vibration Sensor Fluke 805ES
Overview
Description
Specifications
Delivery
Payment
Warranty
Price coming soon
Contact
sales team
sales team
Overview
1.2 kg Warranty: 12 months
An accessory to the Fluke 805 vibration meter Read more
Inform of price reduction
Description

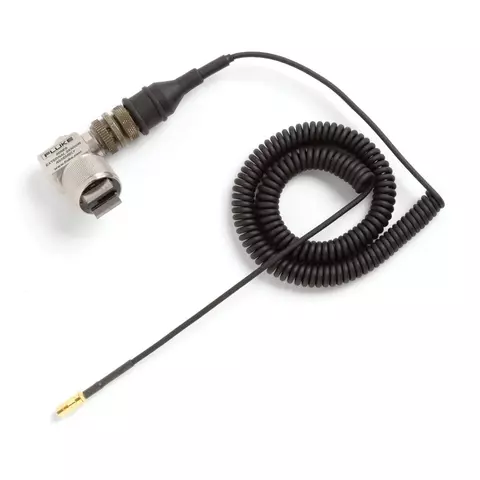

Fluke 805ES is an external vibration sensor designed for use with the Fluke 805 vibration meter in confined and hard-to-reach places, when using the onboard vibration sensor tip is difficult or impossible
Features
- direct connectivity to the SMB connector located in the heel of the Fluke 805 vibration meter;
- firm connection to measurement surfaces thanks to a strong U shaped magnet mount;
- direct attachment to a sensor mounting pad or a threaded hole on measured equipment with a removable sensor magnet;
- 90-degree sensor body enabling access to hard-to-reach places;
- heavy-duty, coiled cable;
- sealed cable connector
Technical Specifications
| Performance | ||
|---|---|---|
| Measurement range | 7 g pk (68.7 m/s² pk) | |
| Frequency range | 0 – 6000 cpm (0 – 100 Hz) |
|
| Relay | 3A Form C 480 VAC | |
| Operating temperature range | -25 – 60°C | |
| Physical Specifications | ||
| Electrical connector | Screw terminals | |
| Screw terminal wiring | 24 – 14 AWG (0.2 – 2.5 mm²) | |
| Mounting hole | 6.4 mm | |
| Cable input | 3/4 – 14 NPT | |
| Sensing element | Magnet | |
| Size | 11.,5 × 83.8 × 110.5 mm | |
| Weight | 1.134 kg | |
Package Contents
- External vibration sensor Fluke 805ES – 1 pc.
Compatibility
- Fluke 805 vibration meter
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
