The F64 ISP BGA Board is a lower-cost solution that covers all major BGA formats and allows you access eMMC and UFS memory chips without needing the original device to power on. Read more
USD 9.00
Description

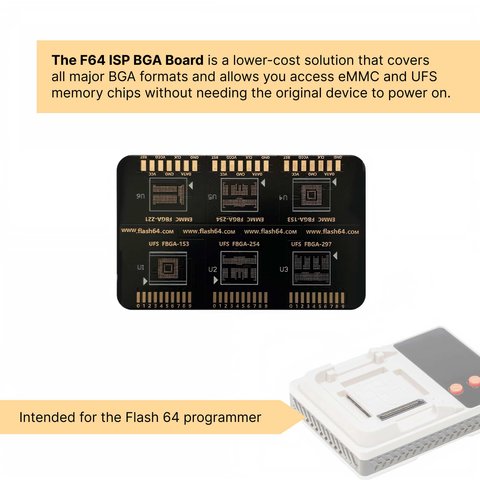

The F64 ISP BGA Board is a lower-cost solution that covers all major BGA formats and allows you access eMMC and UFS memory chips without needing the original device to power on.
How to use this ISP board

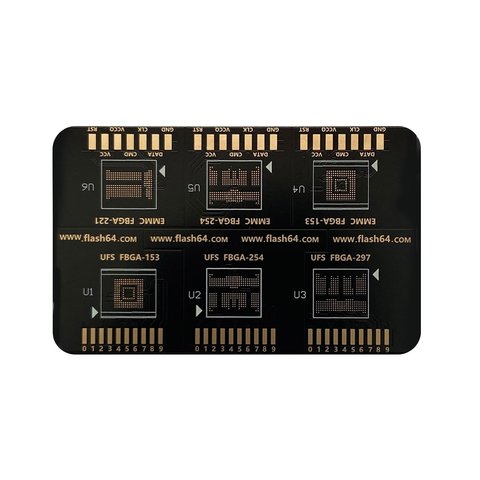

Supported BGA Types
- UFS FBGA-153
- UFS FBGA-254
- UFS FBGA-297
- EMMC FBGA-153
- EMMC FBGA-254
- EMMC FBGA-221
Compatibility
Key Repair Scenarios
| Dead boot (won't power on) | Read memory directly without connection to the CPU or boot ROM |
| Water / physical damage | Chip removed and read independently of broken board |
| Reset FRP | Direct writing to userdata/frp partition |
| Firmware corruption | Write a clean firmware image to the raw NAND |
| Forensic data extraction | Non-destructive physical image of full memory |
| Bad health eMMC repair | Repartition or reset chip via Extended CSD access |

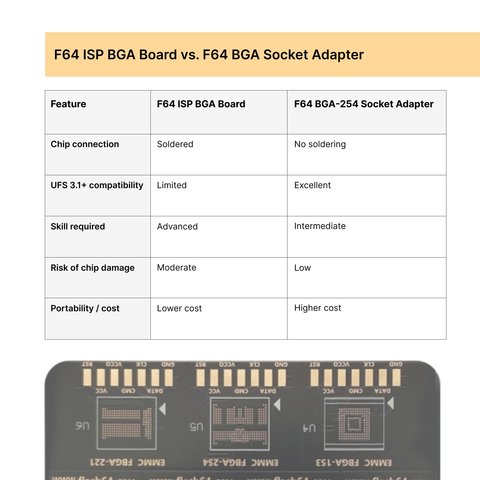

ISP BGA Board vs. F64 BGA Socket Adapter
| F64 ISP BGA Board | F64 BGA-254 Socket Adapter | |
| Chip connection method | Soldered (permanent per session) | Zero-insertion-force (ZIF) clamp — no soldering |
| Best for | Chip-off, physically damaged chips, desoldered NAND | Intact chips removed cleanly with balls preserved |
| UFS 3.1+ compatibility | Limited — flex cable degrades signal at high PWM Gear speeds | Excellent — direct socket contact ensures full signal integrity |
| UFS 2.2 & eMMC | Full-speed, reliable reads and writes | Full-speed, reliable reads and writes |
| Skill required | Advanced — requires BGA soldering proficiency | Intermediate — chip placement and clamping only |
| Reusability | Board reusable; requires re-soldering per chip | Fully reusable with quick chip swaps |
| Risk of chip damage | Moderate — improper reflow can damage pads | Low — no heat applied during connection |
| Portability / cost | Lower cost, lightweight | Higher cost, but faster turnaround per job |

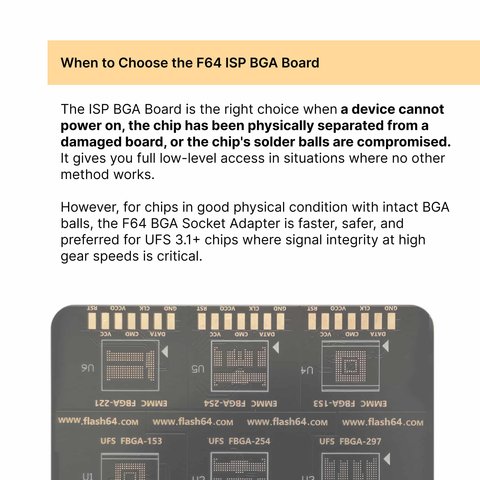

When to Choose the ISP Board
- The ISP BGA Board is the right choice when a device cannot power on, the chip has been physically separated from a damaged board, or the chip's solder balls are compromised. It gives you full low-level access in situations where no other method works.
- For technicians who regularly handle physically damaged devices, the ISP board is a lower-cost, highly versatile solution — one tool that covers all major BGA formats, rather than maintaining a separate socket adapter for every chip variant.
- However, for chips in good physical condition with intact BGA balls, the F64 BGA Socket Adapter is faster, safer, and preferred for UFS 3.1+ chips where signal integrity at high gear speeds is critical.
Package Content
- Flash 64 BGA eMMC / UFS ISP Board - 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
