Fork Meter UNI-T UT256
id: 912312
Fork Meter UNI-T UT256
Overview
Description
Specifications
Delivery
Payment
Warranty
Price coming soon
Contact
sales team
sales team
Overview
0.2 kg Warranty: 24 months
A True RMS auto-ranging fork meter that can measure 60A AC/DC current and detect the presence of voltage via NCV sensor on the tip of the fork Read more
Inform of price reduction
Description

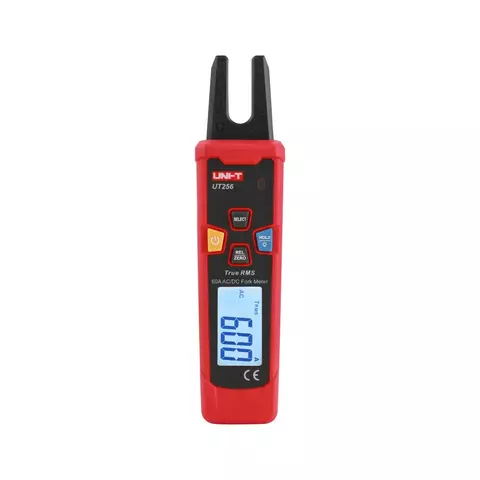

UNI-T UT256 is a CAT III 600V True RMS auto-ranging fork meter. The device is designed for measuring AC/DC current up to 60 A and for voltage detection via the integrated non-contact (NCV) sensor on the tip of the fork. The easy-to-use interface with a bright backlight can help users finish the work efficiently and conveniently. The specially designed slim meter shell and thin fork are quite useful for measuring cables in narrow spaces.
Features
- AC/DC current measurement up to 60 A.
- True RMS measurements.
- Jaw opening: 10 mm.
- Zero function.
- Data hold.
- Relative mode.
- NCV.
- CAT III 600V.
Technical Specifications
| Specification | Range | Accuracy |
|---|---|---|
| DC Current | 60 A | ±(2%＋5) |
| AC Current | 60 A | ±(2%＋5) |
| Features | ||
| NCV | ✓ | |
| Low Battery Indication | ✓ | |
| Data Hold | ✓ | |
| Relative Mode (REL) | ✓ | |
| Zero Mode | ✓ | |
| Backlight | ✓ | |
| Audible and Visual Alarm | ✓ | |
| Auto Power Off | approximately 30 minutes | |
| Drop Test | 1 m | |
| Safety Rating | CAT III 600V | |
| General Specifications | ||
| Power | AAA 1.5V × 2 pcs. | |
| Dimensions | 171 mm × 42 mm × 28 mm | |
| Weight | 120 g (with batteries) | |
User Manual
Download UNI-T UT256 user manual.
Package Contents
- UNI-T UT256 fork meter — 1 pc.
- Case — 1 pc.
- User manual — 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
All rights reserved. This material from gsmserver.com web site may not be published, rewritten or redistributed in whole or part without authorship indicated and backlinks provided.
Specifications
| Type |
|
| Capacitance |
|
| Frequency |
|
| Temperature |
|
| Power |
|
| Duty cycle |
|
| True RMS |
|
| Backlight |
|
| PC connection |
|
| Diode test |
|
| Analog bar graph |
|
| AC Voltage |
|
| DC Voltage |
|
| Continuity test |
|
| Three-phase voltage measurement |
|
| Three-phase current measurement |
|
| Resistance |
|
| NCV |
|
| DC |
|
| AC |
|
| Jaw diameter |
|
