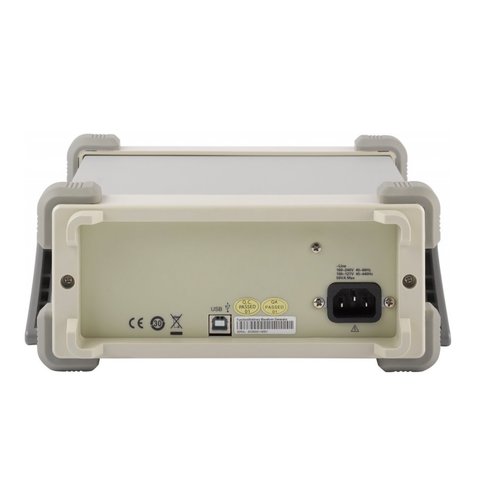

Function/Arbitrary Waveform Generator SIGLENT SDG830
id: 887357
6 kg Warranty: 36 months
Single-channel function/arbitary waveform generator, with 30 MHz frequency, 125 MSa/s sample rate, 14 bits vertical resolution, 16 K wavelength, modulation functions: AM, DSB-AM, FM, PM, FSK, ASK, PWM, Sweep, Burst. Read more
Buy wholesale and save
Inform of price reduction
You may also like
SIGLENT SDG830 Function/Arbitrary Waveform Generator with the innovated EasyPulse technology can generate pulse of low jitter, quick rising/falling edge regardless of frequency effect, while the duty cycle, edge and pulse width could be widely and accurately adjusted.
Features
- DDS technology.
- Single-channel output.
- 125MSa/s sample rate.
- 14bit vertical resolution.
- 5 types of standard output waveform, built-in 46 arbitrary waveforms (including DC).
- Complete set of modulation functions: AM, DSB-AM, FM, PM, FSK, ASK, PWM, Sweep, Burst.
- Abundant input/output: waveform output, Synchronous signal output, external trigger input.
- Standard interfaces: USB Device, USB Host.
- Supplied with powerful arbitrary editing software.
- Supports remote control.
Technical Specifications
Model | SDG805 | SDG810 | SDG830 |
---|---|---|---|
Maximum output frequency | 5 MHz | 10 MHz | 30 MHz |
Output channels | 1 | ||
Sampliing rate | 125 MSa/s | ||
Wave length | 16 kpts | ||
Frequency resolution | 1 μHz | ||
Vertical resolution | 14 bits | ||
Waveform | Sine, Square, Ramp, Pulse, Gaussian white noise, Arbitrary waveform,46 types of built-in arbitrary waveforms | ||
Sine wave | 1 μHz ~ 5 MHz | 1 μHz ~ 10 MHz | 1 μHz ~30 MHz |
Square wave | 1 μHz ~ 5 MHz | 1 μHz ~ 10 MHz | 1 μHz ~10 MHz |
Pulse | 500 μHz ~ 5 MHz | 500 μHz ~ 5 MHz | 500 μHz ~5 MHz |
Ramp/Triangular | 1 μHz ~ 300 kHz | 1 μHz ~ 300 kHz | 1 μHz ~ 300 kHz |
Gaussian white noise | >5 MHz bandwidth (-3dB) | >10 MHz bandwidth (-3dB) | >30 MHz bandwidth (-3dB) |
Arbitrary waveform | 1 μHz ~ 5 MHz | 1 μHz ~ 5 MHz | 1 μHz ~ 5 MHz |
Modulation function | AM, FM, PM, DSB-AM, FSK, ASK, PWM, Sweep, Burst | ||
Standard configuration | USB Host & USB Device | ||
Amplitude | 4 mVpp~20 Vpp (≤10 MHz) , 4 mVpp~10 Vpp (>10 MHz) (High resistence) |
Data Sheet
Download SIGLENT SDG800 Series Data Sheet.
Package Contents
- SIGLENT SDG830 Function/Arbitrary Waveform Generator — 1 pc.
- Quick start guide — 1 pc.
- USB Cable — 1 pc.
- 220V AC EU power cord (unit is 220V and 110V selectable) — 1 pc.
- CD inlcuding Software / manual (Windows XP, Vista, 7) — 1 pc.
