Function/Arbitrary Waveform Generator UNI-T UTG2062B
id: 890102
4 kg Warranty: 24 months
Dual-channel DDS/arbitary waveform generator, with 60 MHz frequency, 320 MS/s sample rate, 16 bits vertical resolution, 1 Mpts memory depth , functions: AM, FM, PM, ASK, FSK, PWM, Sweep, Burst. Read more
Buy wholesale and save
Inform of price reduction

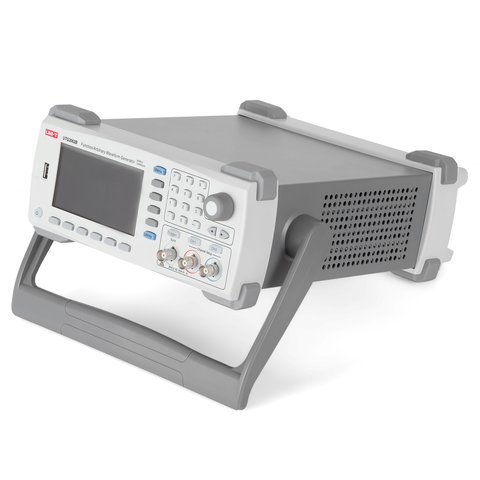

UNI-T UTG2062B is a high quality bench-top DDS/arbitrary waveform generator, featuring a large, full-colour screen, labelled buttons and dual ports for measuring 2 channels simultaneously. It is capable of generating multiple waveform types, including sine, square, ramp, pulse, noise, DC, arbitrary and harmonic. It uses output frequency of 60 MHz, frequency resolution of 1 μHz and has vertical resolution of 14 bits. The UTG2062B also features multiple modulation types which are AM, FM, PM, ASK, FSK, PSK, PWM, BPSK, QPSK, OSK, DSB-AM, SUM, QAM.
Built-in USB interface allows the device to be connected up to a PC or other similar device via the included USB cable.
Features
- Produces sine, square, ramp, pulse, noise, DC, arbitrary and harmonic signals.
- 1 μHz frequency resolution.
- Two equivalent-performance channels, 16 Mpts memory depth.
- Vertical resolution of 16 bits.
- Output amplitude range: 1 mVpp-10 Vpp (50 Ω); 2 mVpp-20 vpp (1 MΩ).
- Multiple modulation types: AM, FM, PM, ASK, FSK, PSK, PWM, BPSK, QPSK, OSK, DSB-AM, SUM, QAM.
- 4.3 inch 64 K colour TFT LCD screen ((480 × 272).
- Complies with EN 61010-1 and CAT III 300V.
Technical Specifications
Max frequency | 60 MHz |
Channels | 2 |
Sampling rate | 320 MS/s |
Waveforms | Sine, square, ramp, pulse, noise, DC, arbitrary, harmonic |
Modulations | AM, FM, PM, ASK, FSK, PSK, PWM, BPSK, QPSK, OSK, DSB-AM, SUM, QAM |
Working modes | Output on/off, continuous, modulation, sweep, burst |
Memory depth | 8 pts ~ 16 Mpts |
Vertical resolution | 16 bits |
utput amplitude range | 1 mVpp-10 Vpp (50 Ω); 2 mVpp-20 vpp (1 MΩ) |
Frequency Specifications | |
---|---|
Sine | 1 μHz ~ 60 MHz |
Square | 1 μHz ~ 25 MHz |
Ramp | 1 μHz ~ 3 MHz |
Pulse | 1 μHz ~20 MHz |
Noise | 60 MHz (-3 db) |
Arbitrary | 1 μHz ~15 MHz |
Harmonic | 1 μHz ~30 MHz |
Resolution | 1 μHz |
Accuracy | ±0.5ppm 25°C |
Interfaces | USB Host, USB Device, LAN |
General Specifications | |
Power | 100 - 240 V (AC), 50 - 60 Hz |
Display | 4.3-inch TFT LCD, WVGA (480 × 272) |
Weight | 3.2 kg |
Dimensions | 265 × 110 × 320 mm |
User Manual
Download UNI-T UTG2062B user manual.
Software
Download UNI-T UTG2062B Software.
Package Contents
- Function/Arbitrary Waveform Generator UNI-T UTG2062B — 1 pc.
- BNC Cable — 1 pc.
- Alligator Clips — 1 set.
- Power Cord — 1 pc.
- USB Cable — 1 pc.
- PC software CD — 1 pc.
