Overview
4.5 kg Warranty: 24 months
Single channel function/arbitrary waveform generator with 5 MHz bandwidth. Generates sine, square, ramp, pulse, noise, DC, and 20 arbitrary waveforms. Read more
Discontinued
Description

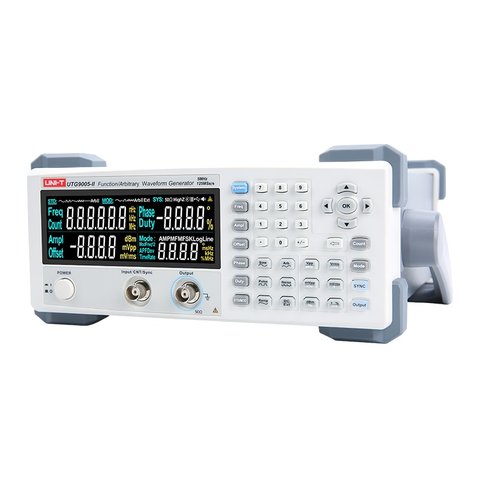

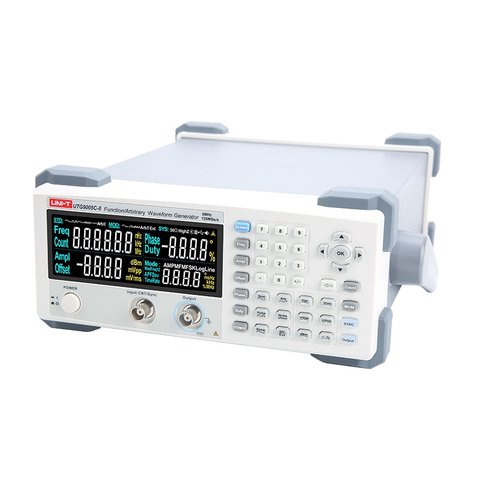

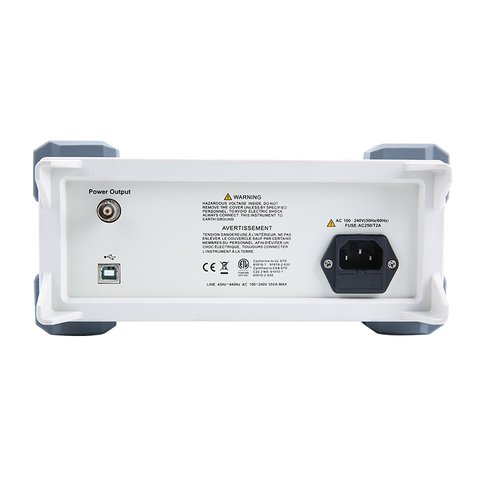

UNI-T UTG9005C-II is a single channel function/arbitrary waveform generator which uses the direct digital synthesis technology to generate accurate, stable, pure, and low-distortion waveform output, and the resolution is as low as 1 μHz. It is a high-performance and multifunctional device with the convenient operation interface, excellent technical indicators and large EBTN LCD.
Features
- Output waveforms: sine, square, pulse, ramp, noise, DC, arbitrary (20 sets).
- Output frequency range: 1 μHz~5 MHz.
- Equipped with high frequency broadband 6-bit frequency counter, frequency range: 100 mHz ~ 100 MHz.
- 4 W power output.
- EBTN LCD display.
Technical Specifications
| Channel | 1 |
| Bandwidth | 5 MHz |
| Sampling rate | 125 MS/s |
| Vertical resolution | 14 bits |
| Waveforms | sine, square, pulse, ramp, noise, DC, arbitrary (20 sets) |
| Sweep modes | logarithmic, linear |
| Frequency Characteristics | |
|---|---|
| Sine | 1 μHz~5 MHz |
| Square | 1 μHz~5 MHz |
| Ramp | 1 μHz~200 kHz |
| Pulse | 1 μHz~5 MHz |
| Arbitrary | 1 μHz~1 MHz |
| Resolution | 1 μHz |
| Output Characteristics | |
| Impedance | 50 Ω (High Z) |
| Amplitude range | 1 mVpp~10 Vpp (50 Ω); 2 mVpp~20 Vpp (high Z) |
| DC offset range | -5 Vpp~5 Vpp (50 Ω) (AC+DC); -10 Vpp~10 Vpp (high Z) (AC+DC) |
| Amplitude resolution | 1 mV |
| General Characteristics | |
| Power | 100~240 VAC, 50 Hz/60 Hz |
| Display | EBTN LCD |
| Weight | 2.8 kg |
| Dimensions | 265 mm × 110 mm × 320 mm |
User Manual
Download UNI-T UTG9005C-II user manual.
Package Contents
- Function/Arbitrary Waveform Generator UNI-T UTG9005C-II — 1 pc.
- USB Interface Cable — 1 pc.
- Power Cord — 1 pc.
- BNC Cable with Alligator Clips — 1 pc.
- PC Software CD — 1 pc.
