Function/Arbitrary Waveform Generator UNI-T UTG932E
id: 903396
1 kg Warranty: 24 months
Ultra-compact high-precision 2-channel waveform generator featuring 30 MHz bandwidth and 200 MSa/s sampling rate. Available modulations are AM, FM, PM, FSK. Read more
Inform of price reduction
You may also like

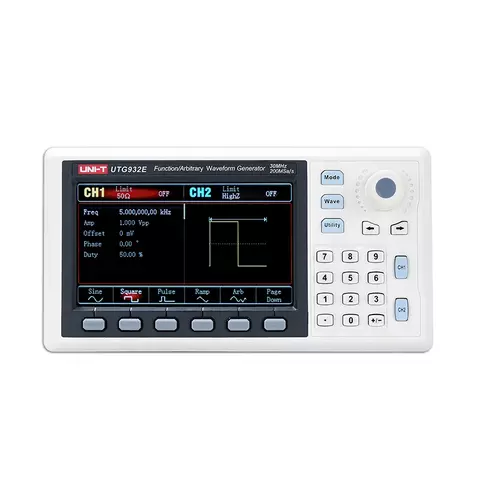

UNI-T UTG932E is an ultra-compact 2-channel function/arbitrary waveform generator that uses direct digital synthesis (DDS) technology to produce accurate, stable, pure, and low-distortion output signals, and the resolution is as low as 1 μHz. It is a high-performance multifunctional device features a user-friendly interface, excellent technical specifications and a bright 4.3-inch TFT LCD.
Features
- Weight only 330 g, dimensions are 172 mm × 90 mm × 68 mm.
- Output waveforms: sine, square, pulse, ramp, noise, DC, arbitrary (26 sets).
- Modulation available: amplitude (AM), frequency (FM), phase (PM), frequency shift keying (FSK).
- Output frequency range: 1 μHz-30 MHz.
- Built-in high-accuracy broadband six bit frequency counter (up to 100 MHz).
- Two equivalent-performance channels.
- Uses complete direct digital synthesis (DDS) technology.
- Sampling rate is 200 MSa/s, vertical resolution is 14 bits.
Technical Specifications
Model | UTG932E | UTG962E |
---|---|---|
Channel | 2 channels (CH1 / CH2) + external input | |
Bandwidth | 30 MHz | 60 MHz |
Sampling rate | 200 MS/s | |
Vertical resolution | 14 bits | |
Waveforms | sine, square, pulse, ramp, noise, DC, arbitrary (26 sets) | |
Sweep modes | logarithmic, linear | |
Frequency Specifications | ||
Sine | 1 μHz~30 MHz | 1 μHz~60 MHz |
Square | 1 μHz~15 MHz | 1 μHz~20 MHz |
Ramp | 1 μHz~400 kHz | 1 μHz~400 kHz |
Pulse | 1 μHz~15 MHz | 1 μHz~20 MHz |
Arbitrary | 1 μHz~10 MHz | 1 μHz~10 MHz |
Resolution | 1 μHz | |
Output Specifications | ||
Impedance | 50 Ω (High Z) | |
Amplitude range | 1 mVpp~10 Vpp (50 Ω); 2 mVpp~20 Vpp (High Z) | |
DC offset range (AC+DC) | ±5 V (50 Ω); ±10 V (high Z) | |
Amplitude resolution | 1 mV | |
General Specifications | ||
Power | 100~240 V AC, 50/60 Hz | |
Display | 4.3" TFT LCD (480 × 272) | |
Weight | 0.33 kg | |
Dimensions | 172 mm × 90 mm × 68 mm |
User Manual
Download UNI-T UTG932E User Manual.
Package Contents
- Function/Arbitrary Waveform Generator UNI-T UTG932E UNI-T UTG932E — 1 pc.
- Power Cord — 1 pc.
- BNC Cable— 1 pc.
- BNC Cable with Alligator Clips — 1 pc.
- User Manual — 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
