Fusion Splicer Jilong KL-360E
id: 894443
12 kg
Availability in stock:
HK
Warranty: 12 months Automatic fusion splicer for optic fiber splicing with core or cladding fiber alignment. Splicing time: 9 s, heating time: 15 s. Read more
Buy wholesale and save
Inform of price reduction
Suggest your price
Note! This item is shipped within 10 working days.
Your gift (list of the available gifts depends on the amount of your order)

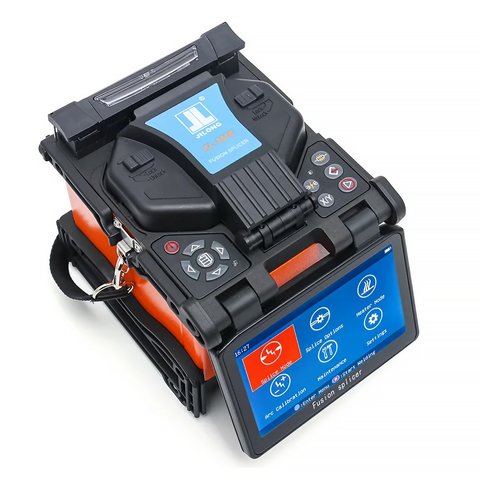

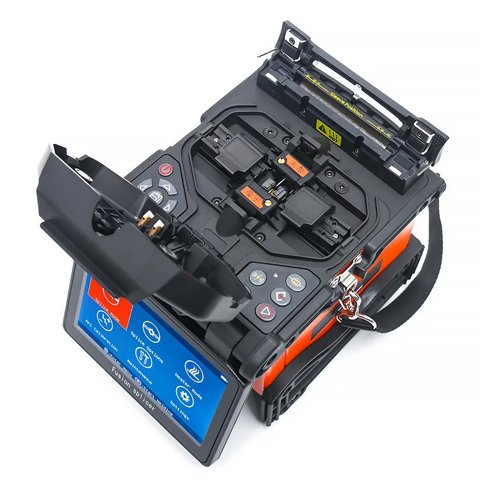

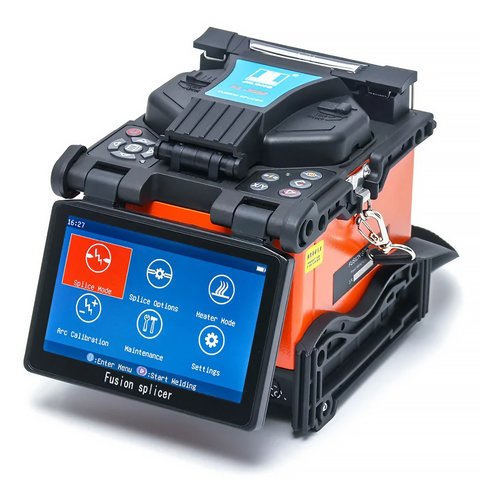

Jilong KL-360E is an automatic fusion splicer with meticulous, manual, core or cladding fiber alignment. The device is capable of splicing fiber in 9 seconds and heating a splice sleeve in 15 seconds. Jilong KL-360E is characterized by real-time & auto control of ARC power function and low splice loss control technology.
4,3-inch color LCD monitor with clear digital image displaying ensures easy and comfortable operation with Jilong KL-360E. Splicing area viewing is ensured by a single view and simultaneous view option for X or Y axes.
Features
- Core-to-core alignment by PAS Technology (PAS: Profile Alignment System).
- Clear fiber core displaying.
- Single view & simultaneous view of X or Y axes.
- Real time & auto control of ARC power.
- Auto environmental adaptation.
- Auto oxidized electrodes adaptation.
- Universal clamp.
- Auto check & display quality of cleaved end face.
- Low splice loss control technology.
- Auto compensation of low air pressure.
- Software upgrade via USB interface.
Technical Specifications
Splicing | |
---|---|
Applicable fibers | SM, MM, DS, NZDS |
Fiber cleaved length | 8 ~ 16 mm (coating diameter: 250 µm) |
Fiber diameter | Cladding diameter: 80 ~ 150 µm Coating diameter: 100 ~ 1000 μm: 16 mm |
Fiber alignment method | Meticulous, Core, Cladding, Manual |
Average splice loss | 0,02 dB (SM), 0,01 dB (MM), 0,04 dB (DS), 0,04 dB (NZDS) |
Splicing time | typical 9 sec (standard SM fiber) |
Splicing programs | 53 (templates), 100 (user adjustable) |
Return loss | > 60 dB |
Internal memory | 10 000 results |
Fiber image magnification | 320X (X or Y view) |
Splicing mode | Auto, Calibrate, Normal, Special |
Heating | |
Heating time | typical 15 seconds (fast heating control, editable heating time, editable heating temperature) |
Heating programs | 11 (templates), 40 (user adjustable) |
Applicable sleeves | 60 mm, 40 mm and other lengths |
General | |
Tension test | 2N |
Battery capacity | typical 350 cycles (splicing and heating) |
Display | 4.3 inch TFT color LCD monitor, image rotation |
Operating condition | 0 ~ 5000 m above sea level; 0 ~ 95% RH; –10 ~ 50°C, respectively; max. wind velocity of 15 m/s |
Power supply | AC 100-240 V with AC adapter DC13.5 V; inner Li-battery (5200mAH), charging time <3.5 hours |
Dimensions (L×W×H) | 161 mm × 136 mm × 141 mm |
Weight | 1.6 kg (excluding battery) 1.93 kg (including battery) |

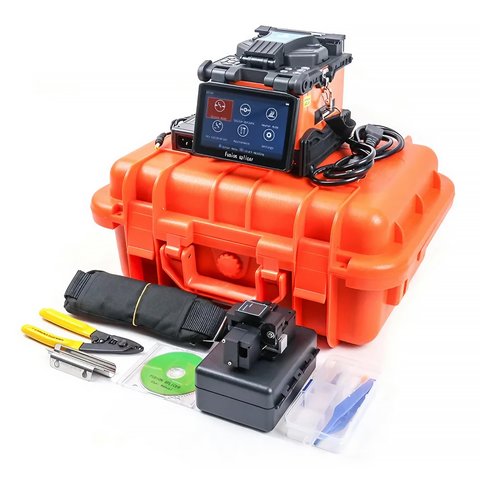

Package Contents
- Fusion Splicer Jilong KL-360E — 1 pc.
- Fiber Cleaver — 1 pc.
- Fiber Stripper — 1 pc.
- Carrying Case — 1 pc.
- Spare Electrodes — 2 pcs.
- Cooling Tray — 1 pc.
- Cleaning Tool — 1 pc.
- Manual — 1 pc.
- Power Supply Cord — 1 pc.
- USB Cable— 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
