Gas-Heated Soldering Iron Goot GP-501

id: 813228
Gas-Heated Soldering Iron Goot GP-501
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 43.32

Overview

5 (5)
0.147 kg
Availability in stock: HK
Warranty: 12 months
The most powerful gas-heated soldering iron of Portasol series. Heat power is adjustable within 25–125 W. Read more
USD 43.32
USD 43.32
Impossible to estimate the shipping cost

Frequently bought together

Soldering Tip Quick 303 B
Bestseller
ID: 857413

Soldering Tip Quick 303-B

5 (9)
USD 4.20
Replacement conical soldering iron tip (length 12 mm, radius 0.5 mm) for precision component soldering. It is compatible with QUICK-202/202D ESD, QUICK-303/303B ESD soldering stations.
Availability in stock: HK
ID: 857413 0.02 kg
Soldering Tip Quick QSS200 1.2D
ID: 864611

Soldering Tip Quick QSS200-1.2D

5 (2)
USD 1.50
Chisel Type soldering iron tip (length: 12 mm, width: 1.6 mm) for precision component soldering. Compatible with Quick 203, 203H, 204, 204H, 376, 376D, 712 ESD Soldering Stations.
Availability in stock: HK
ID: 864611 0.05 kg
Soldering Tip Quick QSS200 T 4C
ID: 856959

Soldering Tip Quick QSS200-T-4C

5 (4)
USD 2.00
Bevel Type soldering iron tip for precision component soldering (45°, working length 12 mm, diameter 4 mm). Compatible with Quick 203, 203H, 204, 204H, 376, 376D, 712 ESD.
Availability in stock: HK
ID: 856959 0.05 kg

Description

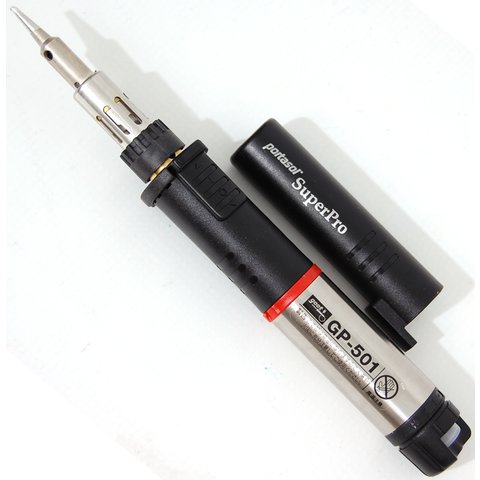

Goot GP-501 Gas-Heated Soldering Iron (Portasol Super Pro) is a most powerful stand-alone soldering iron (125 W) of Portasol series. Portasol Super Pro soldering iron with a piezoelectric ignition system allows soldering with temperature adjustment and requires no electric power supply.

Goot GP-501 soldering iron is compatible with a wide range of soldering iron tips and nozzles (optional), so it is suitable for conducting multiple soldering operations starting with indoors PCB repairing as well as outdoors soldering of connectors and massive cable lugs.

Features

  • Soldering iron may be used as a blow torch, a heat gun, and a hot knife (nozzles to be purchased separately).
  • Only 30 seconds heating up to operation temperature.
  • Heat power may be adjusted within 25–125 W.
  • Continuous operation time ~ 45 minutes (at max. power), ~ 2 hours (at min. power).
  • Easy ignition using only one button.
  • High power guarantees reliable operation even under unfavorable conditions.

Technical Specifications

Model Portasol Super Pro
Operation temperature Soldering iron 580 °C
Blow torch 1300 °C
Hot air 625 °C
Refill time 30 sec
Ignition system piezoelectric
Gas type butane, isobutane
Continuous operation time approx. 45 min (for soldering) at max temperature
Length 223 mm
Weight 147 g
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
All rights reserved. This material from gsmserver.com web site may not be published, rewritten or redistributed in whole or part without authorship indicated and backlinks provided.

Specifications

Power Consumption
  • 125 W
