Overview

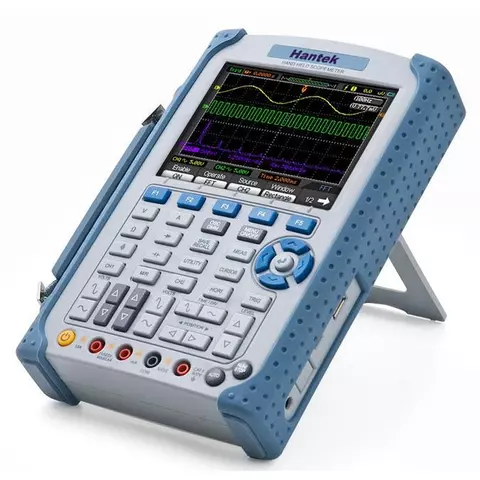

Handheld Digital Oscilloscope Hantek DSO1202B
2.4 kg 110, 220 V Warranty: 2 months
Portable dual-channel digital oscilloscope with the built-in multimeter functions, 200 MHz bandwidth, 1 GSa/s real-time sampling rate and 1 M memory depth. Read more
USD 730.00
Buy wholesale and save
USD 730.00
Impossible to estimate the shipping cost

You may also like

Description

DSO1000 Series digital oscilloscopes offer exceptional waveform viewing and measurements in a compact, lightweight package (245 × 163 × 52 mm). Hantek DSO1202B handheld digital oscilloscope is ideal for production test, field service, research, design, education and training involving applications of analog circuit tests and troubleshooting.

Hantek DSO1202B is the dual-channel digital oscilloscope with built-in digital multimeter functions, which allows operator to measure AC/DC current and voltage, resistance, capacitance, continuity and test diodes.

Hantek DSO1202B Handheld Digital Oscilloscope Features

  • Bandwidth - 200 MHz
  • Large 5.6 inch TFT color LCD display (resolution 640x480)
  • One-touch automatic setup optimizes the position, range, timebase, and triggering
  • 23 automatic measurements
  • Waveform math: add, subtract, multiply, and divide
  • Built-in FFT function
  • Functions of high precision digital multimeter(6000 counts):
    • AC/DC voltage
    • AC/DC current
    • Resistance
    • Capacitance
    • Continuity
    • Diode test
  • Automatic cursor tracking measurements
  • 1000 waveform records
  • Waveform recorder to capture/replay input waveforms from CH1 and CH2
  • Square wave output (2 V, 1 kHz)
  • USB host/device 2.0 full-speed interface

Hantek DSO1202B Handheld Digital Oscilloscope Specifications

Technical Specifications
Bandwidth 200 MHz
Real-time Sample Rate 1 GSa/s
Equivalent Sample Rate 25 GSa/s
Record Length (Sample Points)
  • Single-channel: maximum 1M
  • Dual-channel: maximum 512K
SEC/DIV Range
2 nS/div - 2000 S/div (in a 2, 4, 8 sequence)
Delay Time Accuracy 500 ps
Vertical
A/D Converter 8-bit resolution
Position Range
  • ±50 V (5 V/div)
  • ±40 V (2 V/div; 500 mV/div), 2 V (200 mV/div; 50 mV/div)
  • ±400 mV (20 mV/div; 2 mV/div)
Rise Time at BNC ≤1.7 ns
DC Gain Accuracy
  • ±4% for Sample or Average acquisition mode, 5 mV/div to 2 mV/div
  • ±3% for Sample or Average acquisition mode, 5 V/div to 10 mV/div
Trigger
Trigger Sensitivity (Edge Trigger Type)
  • DC: CH1/CH2 (Typical) 1 div from DC to 10 MHz; 1.5 div from 10 MHz to Full
  • EXT （Typical） 20 0mV from DC to 40 MHz
  • EXT/5 （Typical） 1 V from DC to 40 MHz
  • AC: Attenuates signals below 10 Hz
  • HF Reject: Attenuates signals above 80 kHz
  • LF Reject: Attenuates signals below 150 kHz
  • Noise Reject: Reduces trigger sensitivity
Trigger Level Range
  • CH1, CH2: ±8 divisions from center of screen
  • EXT: ±1.2 V EXT/5: ±6 V
Holdoff Range 100 ns - 10 s
Trigger Type
Edge Trigger on the rising or falling edge
Pulse Width
  • Trigger (when >,<,=,≠) on positive or negative pulses
  • Pulse width range: 20 ns - 10 s
Video
  • Trigger on an NTSC, PAL, or SECAM standard video signal
  • Line Range: 1-525 (NTSC), 1-625 (PAL/SECAM)
Slope
  • Trigger (when >,<,=,≠) on a positive or negative slope
  • Set Time: 20 ns – 10 s
Overtime
  • From the rising or falling edge
  • Set Time: 20 ns – 10 s
Alternate Internal trigger on edge, pulse width, video or slope
Cursors and Measurement
Cursors
  • Manual: The difference between voltage cursors △V; the difference between time cursors △T; 1/△T calculated by Hz.
  • Tracing: The voltage and time at a waveform point
Automatic Pk-Pk, Max, Min, Mean, Cyc RMS, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width
Multimeter Mode
Maximum Resolution 6,000 counts
Testing Modes AC/DC voltage, AC/DC current, resistance, capacitance, diode test, continuity
Maximum Input Voltage AC: 600 V, DC: 800 V
Maximum Input Current AC: 10 A, DC: 10 A
Input Impedance 10 MΩ
Display and General
Display Type 5.6 inch 16-digit color LCD
Resolution 640x480
Interface USB host, LAN (optional)
Dimensions 245 x 163 x 52 mm

Hantek DSO1202B Handheld Digital Oscilloscope Package Contents

  • Hantek DSO1202B oscilloscope (1 pc.)
  • Multimeter test leads (1 pair)
  • Oscilloscope probes (1 pair)
  • USB cable (1 pc.)
  • Carrying bag (1 pc.)
  • Power adapter (1 pc.)
  • Disc with software (1 pc.)
  • User manual (1 pc.)
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
