Handheld Digital Oscilloscope OWON HDS3101M-N
id: 887993
1 kg Warranty: 12 months
Single channel lightweight handheld oscilloscope with 100 MHz bandwidth, 1 GS/s sample rate, 6 K points wavelength, and a set of multimeter measurement functions. Read more
Inform of price reduction

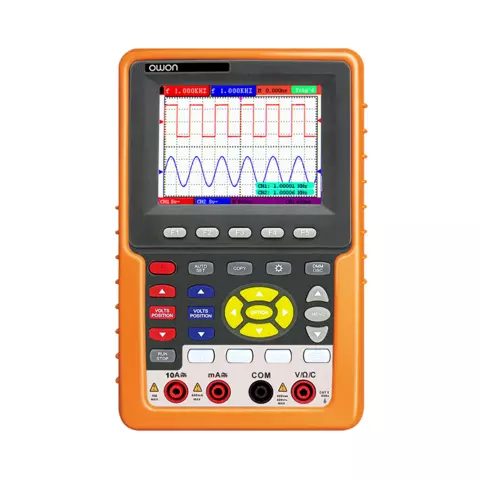

OWON HDS3101M-N is a single channel lightweight handheld oscilloscope with 100 MHz bandwidth and 1 GS/s sample rate. OWON HDS3101M-N handheld digital oscilloscope also performs multimeter measuring functions. It may be used to measure AC/DC voltage and current, resistance and capacitance.
Features
- 2 in 1 (DSO + Multimeter).
- Auto-scale function.
- 20 automatic measurements.
- Bandwidth: 100MHz.
- USB data transmission supported.
- Waveform record and replay.
- Multimeter newly supported SCPI.
- Rechargeable Li-ion battery.
- Multimeter measurement functions:
- AC/DC voltage;
- AC/DC current;
- impedance;
- capacitance.
Technical Specifications
Channels | 1 |
Bandwidth | 100 MHz |
Rise time | ≤ 3,5 ns |
Real-time sampling rate | 1 GS/s |
Vertical Sensitivity | 5 mV/div ~ 5 V/div |
Vertical Resolution | 8 bits |
Record Length | 6K points |
Trigger Type | Edge, Video, and Alternate |
Trigger Mode | Auto, Normal, and Single |
Trigger Level | ±6 divisions from screen center |
Acquisition Mode | Sample, Peak Detect, Average |
Waveform Storage | 4 waveforms |
Multimeter | |
---|---|
DC Voltage | 400 mV / 4 V / 40 V / 400 V / 1000 V: ±(1±1%) |
AC Voltage | 4 V / 40 V / 400 V: ±(1± 3%) 750 V: ±(2% ± 3%); Frequency : 40 Hz - 400 Hz |
DC Current | 40 mA / 400 mA: ±(1.5±1%) 10 A: ±(3±3%) |
AC Current | 40 mA: ±(1.5±3%), 400 mA: ±(2± 1%), 10 A: ±(5±3%) |
Impedance | 400 Ω: ±(1±3%), 40 ΚΩ- 4 ΜΩ: ±(1±1%), 40 ΜΩ: ±(1.5± 3%) |
Capacitance | 51.2 nF-100 uF: ±(3± 3%) |
General Specifications | |
Interface | mini-USB, mini-RS232 |
Multimeter Full Scale Reading | 4000 |
LCD size | 3.7" |
Power Supply | 100-240 V AC, 50/60 Hz battery 7.4 V (6 hours' backup) |
Dimensions | 180 × 115 × 40 mm |
Weight | 645 g |
Package Contents
- Handheld Digital Oscilloscope OWON HDS3101M-N — 1 pc.
- Power Cord — 1 pc.
- Sofrware CD — 1 pc.
- USB Cable — 1 pc.
- Probe — 1 set.
- Probe Adjust — 1 pc.
- Capacitance module — 1 pc.
- Output terminal for testing of 1 kHz/5 V square-wave signal — 1 pc.
- Metal Case — 1 pc.
- Multimeter Lead — 1 set.
- Adapter — 1 pc.
- User Manual — 1 pc.
