Handheld Fusion Splicer Jilong KL-500E
id: 894445
8 kg
Availability in stock:
HK
Warranty: 12 months 9 seconds splice time and 30 seconds heat time. Core-core or clad-clad alignment, PAS technology. Designed for splicing SM, MM, NZDS optical fibers. Read more
Buy wholesale and save
Inform of price reduction
Suggest your price
Note! This item is shipped within 10 working days.
Your gift (list of the available gifts depends on the amount of your order)
Jilong KL-500E is a handheld and portable fusion splicer. Splicing time: 9 seconds; heating time: 30 seconds. Core-Core or Clad-Clad Alignment. Applicable fibers are SM, MM, DS, NZDS.
Features

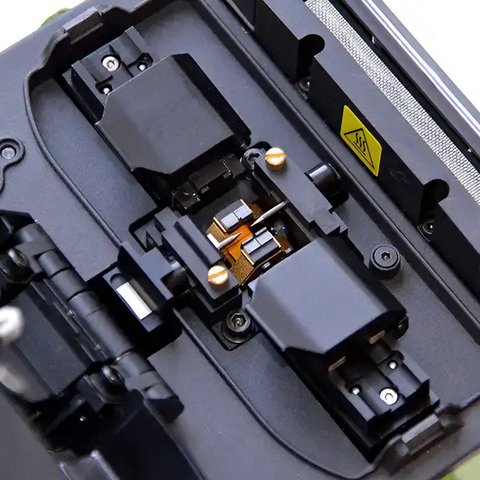

- Core-Core or Clad-Clad Alignment.
- Core-to-core alignment by PAS Technology (PAS: Profile Alignment System).
- Single view & simultaneous view of X or Y axes.
- Display: fiber cleaved angle, fiber offset angle, inside temperature, ambient temperature, heater temperature, air pressure and battery voltage.
- Image turn over.
- Auto power off.
- Device's weight is only 1.2 kg (without battery).
- 3.5 inch color LCD.
- Clear fiber core displaying.
- Splicing time: 9 seconds; heating time: 30 seconds.
- Intuitive interface and smart menu.
- SOC and 3-in-one fiber clamp available.
- Software upgrade via USB interface.
Technical Specifications
Applicable fibers | SM, MM, DS, NZDS |
Fiber diameter | Cladding diameter: 80-150 μm |
Fiber count | Single |
Fiber cleaved length | 12~16 mm (coating diameter: 250 µm) |
Average splice loss | 0.02 dB (SM), 0.01 dB (MM), 0.04 dB (DS), 0.04 dB (NZDS) |
Typical splicing time | Typical 9 sec (standard SM fiber) |
Return loss | >60 dB |
Splicing mode | Auto, Calibrate, Normal, Special |
Fiber aligning method | Meticulous, Core, Clad, Manual |
Splicing program | 53 (templet), 40 (user) |
Tube heating program | 9 (templet), 24 (user) |
Tube typical heating time | Typical 30 sec |
Applicable sleeves | 60 mm, 40 mm |
Storage of splice result | 4000 results, 20 parameter per result |
Fiber image magnification | 120X (X or Y view),60X (X and Y view) |
Battery capacity | typical 300 cycles (splicing and heating) |
Display | 3.5 inch color LCD |
Tension test | 2 N |
Electrode life | 2500 splicing cycles |
Interface | USB |
Power supply | AC 100-240V with AC adapter Inner Li-battery (5200 mAh) DC 13.5 V |
Operating condition | 0 ~ 5000 m above sea level; –10 ~ 50°C; max wind velocity of 15 m/s |
Dimensions | 125 mm × 105 mm × 113 mm |
Weight | 1.3 kg with battery |
Package Contents
- Handheld Fusion Splicer Jilong KL-500E — 1 pc.
- Fiber Cleaver — 1 pc.
- Fiber Stripper — 1 pc.

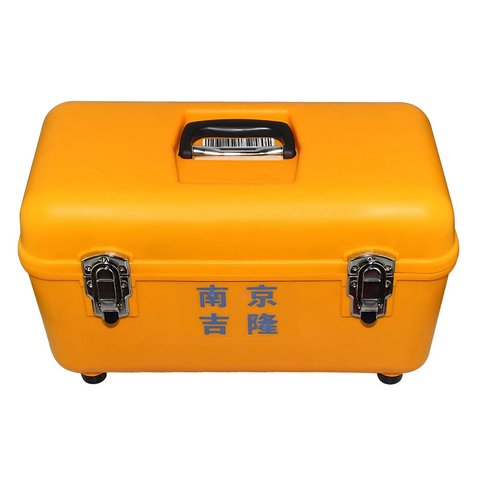

- Carrying Case — 1 pc.
- Spare Electrodes — 2 pcs.
- Cooling Tray — 1 pc.
- Cleaning Tools — 1 set
- Power Module — 1 pc.
- Manual — 1 pc.
- Power Supply Cord — 1 pc.
- USB Cable — 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
