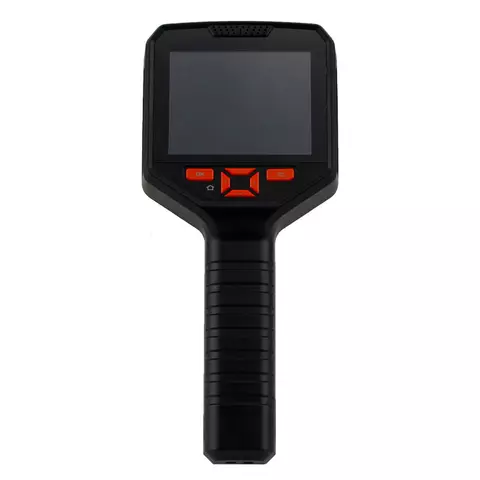

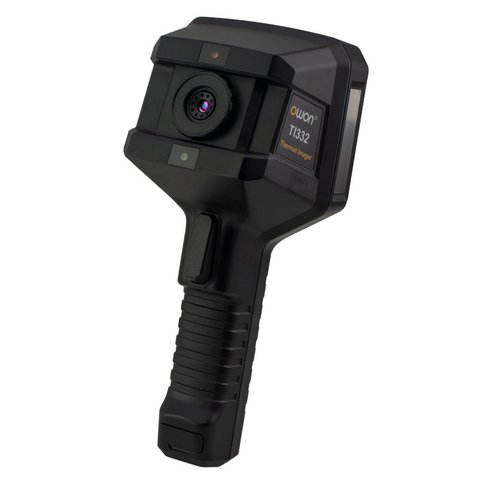

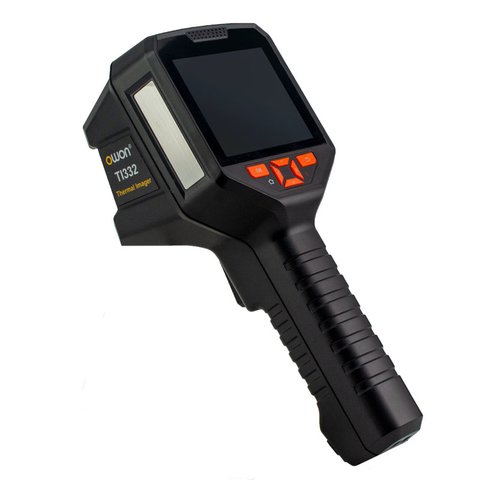

Handheld Thermal Imaging Camera OWON TI332
id: 901061
1 kg Warranty: 12 months
Handheld thermal imaging camera with 320 × 240 IR resolution, which provides complete thermal analysis in the temperature range from -20°C to +350°C. Read more
Inform of price reduction
OWON TI332 is a handheld thermal imaging camera featuring 320 × 240 IR resolution. The device can be used both as a visible camera and as an infrared camera. Thermal imaging camera has three enhancement algorithms: smooth, standard, and high contrast. The TI332 has built-in data storage and may be connected to a computer via the built-in USB-type C port.
OWON TI332 provides complete thermal analysis in the temperature range from -20°C to + 350°C, with different measurement functions (temperature limit alarm, five color palettes, and hot/cold spot automatic tracing). The device is equipped with a 3.5-inch LCD. It can also be fixed on a tripod with a screw.
Features
- Infrared thermal imaging 320 × 240 resolution.
- Three fusion modes of visible and infrared.
- Three image enhancement modes for different applications.
- Customized high and low temperature limit alarm.
- Computer analysis software meets more professional industry applications.
- Multiple measurement methods for accurate temperature determination.
- 5 color palettes (Black Hot, White Hot, Rainbow, Iron, Enhanced Iron).
- Large internal memory can store up to 20,000 images.
- Temperature measurement range -20 °C to 350 °C, accuracy ±2 °C or ±2%.
- Emissivity adjustable (0.01-0.99), default 0.95.
- Image capture using three images storage for multi-view analysis.
- 3.5-inch TFT LCD.
Technical Specifications
Infrared Imaging System | |
---|---|
Resolution | 320 × 240 |
Spectral response | 8~14 µm |
Frame rate | 9 Hz |
Noise equivalent temperature difference (NETD) | 70 mK at 25 °C |
Viewing area | 34.4° (D) × 25.8° (H) |
Lens | 6.5 mm |
Temperature measurement range | -20 °C ~ +350 °C |
Accuracy | ±2 °C or ±2% |
Temperature measuring | hot and cold spot automatic tracing, center spot, area temperature measurement |
Color palettes | Black Hot, White Hot, Rainbow, Iron, Enhanced Iron |
Visible Light Camera | |
Resolution | 640 × 480 |
Frame rate | 25 Hz |
LED backlight | + |
Display | |
Resolution | 320 × 240 |
Dimensions | 8.9 cm |
Picture Mode | outline fusion, layer fusion, picture-in-picture fusion, thermogram, visible light picture |
General Specifications | |
Working time | 5000 mAh battery, >4 hours at 25 °C |
Battery recharging | built-in rechargeable battery, support charging with 5 V/2 A power bank |
Wi-Fi (optional) | support 2.4G transmission, used to connect with computer |
Operating temperature | -20 °C…+60 °C |
Storage temperature | -40 °C…+85 °C |
IP rating | IP54 |
Thermal imaging camera dimensions | 230 mm × 100 mm × 90 mm |
Net weight | 420 g |
Packaging dimensions | 270 mm × 150 mm × 120 mm |
Gross weight | 970 g |
Data Storage | |
Internal memory | built-in, approximately 6.6 GB available, store up to 20,000 images |
Image storage mode | infrared thermal, visible light and actual picture in the field saved simultaneously |
File format | TIFF, supports full-frame images temperature analysis |
Image Analysis | |
Windows analysis software | provides full pixel temperature analysis functions |
Android OS analysis software | provides full pixel temperature analysis functions |
Interface | |
Data transmission and charging interface | USB Type C (allows battery charging and data transferring) |
User Manual
Download OWON TI332 user manual.
Software
Download OWON TI332 software.

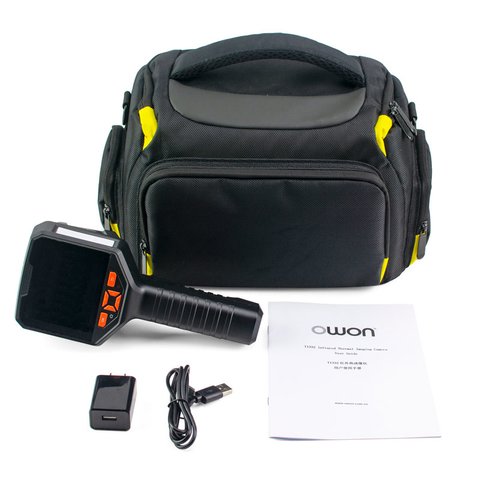

Package Contents
- Handheld Thermal Imaging Camera OWON TI332 — 1 pc.
- Power Adapter — 1 pc.
- USB Cable — 1 pc.
- User Manual — 1 pc.
- Carrying Bag — 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
