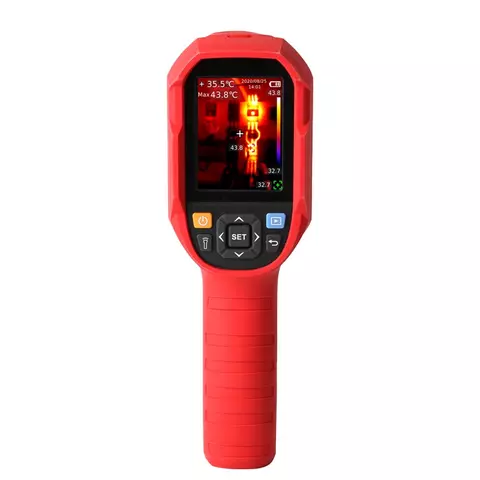

Heavy Duty Thermal Camera UNI-T UTi220B
id: 914794
1 kg Warranty: 24 months
Powerful, user-friendly, and ergonomically designed thermal camera, with 200×150 pixels IR resolution and temperature measuring range from -10°C to 400°C. Read more
Inform of price reduction
UNI-T UTi220B is a rugged and ergonomically designed thermal camera, powerful and user-friendly with great performance, with 200–150 pixel IR resolution and a buzzer alarm that can automatically track and alarm the objective’s temperature from -10°C to 400°C. It is an affordable professional troubleshooting tool widely used in many applications.
Features
- Durable and user-friendly.
- 2.8” TFT display screen (320 x 240 pixels).
- IR resolution: 200×150.
- Temperature measurement range: -10°C to 400°C, or 14°F to 752 °F.
- Auto-alarm for high/low temperatures
- Auto-tracking for hot spot/cold spot.
- On-screen analyzer : 3 points.
- Image capture.
- Image modes: thermal, visual image, and fusion.
- Buzzer alarm.
- Color palettes: 7 (Iron Bow, White Hot, Black Hot, Tyrian, Amber, Cool, Rainbow).
- LED flashlight.
- PC software analysis and real-time image projection.
- Rechargeable Li-ion battery.
- 1/4” tripod mounting hole.
- IP65.
- 2m drop proof.
Technical Specifications
IR Resolution | 200×150 pixels |
Display | 2.8” TFT LCD (320×240) |
Field of View (FOV) | 35°×26° |
Thermal Sensitivity (NETD) | ≤100 mk |
Spatial Resolution (IFOV) | 3.1 mrad |
Frame Rate | ≤9 Hz |
Spectral Range | 8~14 µm |
Focus | Focus Free |
Temperature Measurement Range | -10°C~400°c |
Accuracy | ±2°C or ±2% whichever is greater |
Emissivity | 0.01~1.00 adjustable (0.95 default) |
Functions | |
---|---|
Color Palettes | 7 (Ironbow, White hot, Black hot, Tyrian, Amber, Cool, Rainbow) |
Image Modes | thermal, visual image, fusion |
On-screen Analyzer | 3 points |
Digital Camera Resolution | 640×480 |
Hi/Lo Temperature Alarm | icon, LED flashlight, buzzer |
PC Software Analysis | available |
General Specifications | |
Battery | fixed Li-ion battery (3.6V, 5000mAh) |
Battery Operation Time | ≥ 6 hours |
USB | Type-C |
IP Rating | IP65 |
Drop Proof | 2 m |
Storage | up to 32GB Micro SD card |
Image/Video Storage Format | BMP |
Certificates | CE, FCC, RoHS |
Product Net Weight | 490 g |
Product Dimensions | 236 mm × 75.5 mm × 86 mm |
User Manual
Download UNI-T UTi220B user manual.
Software
Download UNI-T UTi220B software.
Package Contents
- Heavy Duty Thermal Camera UNI-T UTi220B — 1 pc.
- Power Adapter — 1 pc.
- Micro SD Card — 1 pc.
- Type-C USB Cable — 1 pc.
- User Manual — 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
