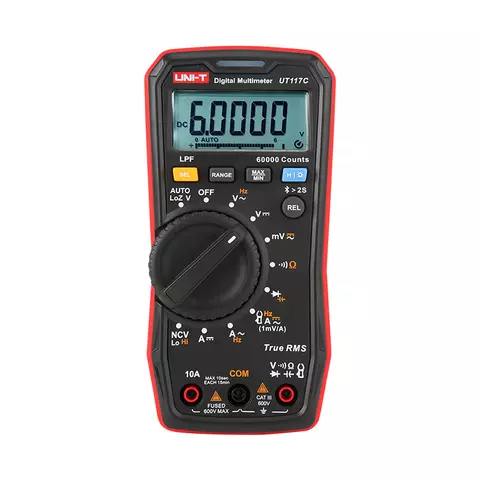

High-precision True RMS Multimeter UNI-T UT117C
id: 913851
1 kg Warranty: 24 months
Designed to measure AC/DC voltage up to 600 V, AC/DC current up to 10 A, frequency, resistance, capacitance, as well as for continuity and diode testing Read more
Inform of price reduction
UNI-T UT117C is a high-precision True RMS multimeter designed to accurately measure AC/DC voltage up to 600 V, AC/DC current up to 10 A, frequency, resistance, and capacitance, as well as for continuity and diode testing. The tool is equipped with Bluetooth functionality, LoZ and LPF features, AutoVolt, and a backlit LCD for user convenience.
Key features include fast response, high precision, compact size, and easy operation, with product accuracy maintained even after a 2-meter drop. It proves to be an excellent tool for electronic electricians.
Features
- True RMS ensures precise measurement of non-linear loads
- LoZ function prevents incorrect readings due to ghost voltage by maintaining low impedance
- AutoVolt feature automatically selects DC/AC voltage for seamless measurements
- LPF function guarantees accurate measurement of voltage and frequency for variable speed drives (VSD)
- Measures resistance, continuity, frequency, and capacitance
- Display MAX/MIN/Average values to record signal fluctuations
- White backlight facilitates reading displayed data in low-light environments
- Bluetooth communication function allows recording and reporting of testing results via the UNI-T smart measurement APP, which can also generate data diagrams and charts
- Ergonomic design enables one-handed operation for user comfort
- Magnetic hanging strap allows for hands-free measurements without holding the multimeter
- The current of a conductor can be measured externally, without changing or disconnecting the circuit, by connecting a current probe
- Drop proof: 2 m
- CAT III 600V
Technical Specifications
Function | Range | Accuracy |
---|---|---|
AC Voltage | 600.00 mV/6.0000 V/60.000 V/600.00 V | ±(1%+30) |
AC Current | 6.0000 A/10.000 A | ±(1.5%+30) |
DC Voltage | 600.00 mV/6.0000 V/60.000 V/600.00 V | ±(0.3%+10) |
DC Current | 6.0000 A/10.000 A | ±(0.5%+10) |
Auto-V LoZ | 600.0 V | ±(1%+3) |
LPF Voltage (ACV) | 600.0 V | ±(2%+3) |
Frequency | 99.99 Hz/999.9 Hz/9.999 kHz/50.00 kHz | ±(0.01%+3) |
Resistance | 600.00 Ω~6.0000 MΩ | ±(0.5%+5) |
40.000 MΩ | ±(3%+5) | |
Capacitance | 1000 nF/10.00 µF/100.0 µF | ±(1.9%+5) |
1000 µF/10000 µF | ±(2.5%+5) | |
General Specifications | ||
Display Count | 6000 | |
External Current Clamp | available, ratio: 1 mV/A | |
Continuity & Diode | ✓ | |
NCV | ✓ | |
Data Hold | ✓ | |
Manual/Auto Range | ✓ | |
Max/Min | ✓ | |
Relative Mode | ✓ | |
High Voltage Warning | ✓ | |
Audiable & Visuable Indication | ✓ | |
Low Battery Indication | ✓ | |
Auto Power Off | around 15 minutes | |
LCD Backlight | available, auto powers off after 5 minutes | |
Bluetooth | ✓ | |
Drop Test | 2 m | |
Overvoltage Category | CATIII 600V | |
Power Supply | 1.5V AAA battery × 3 pcs. | |
Dimensions | 169 mm × 84 mm × 48.8 mm | |
Weight | around 346 g |
Video
User Manual
Download UNI-T UT117C user manual.
Package Contents
- High-precision True RMS Multimeter UNI-T UT117C — 1 pc.
- Test lLeads — 1 set
- 1.5V AAA Battery — 3 pcs.
- Magnetic Hanger — 1 pc.
- User Manual — 1 pc.
