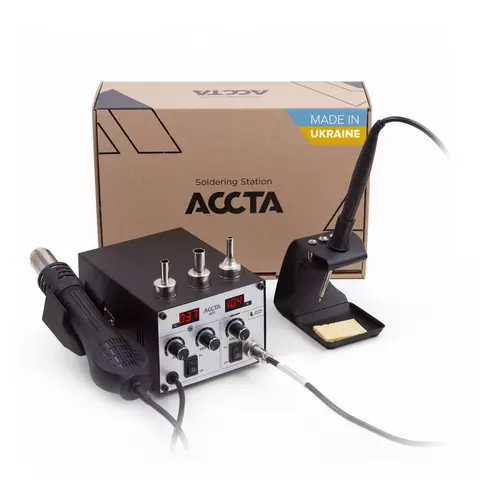

Hot Air Rework Station Accta 401

Accta 401 is a dual-channel hot air turbine soldering/desoldering station with the soldering iron for lead-free soldering of SMD components. It is designed for operation with Hakko T12 series soldering tips. The package includes a hot air gun, a soldering iron, hot air gun and soldering iron holders, Hakko soldering iron tips, and hot air nozzles.

Tired of problems with cheap soldering stations? Try Accta! This is a budget-friendly soldering station that, in terms of quality and specifications, corresponds to a much higher class of soldering equipment. The engineers have used their experience of working with dozens of stations from different manufacturers and taken into account even the smallest details to improve the design. This is why Accta stations do not have any defects that are so common for the low-budget hot air soldering stations.

Accta 401 hot air rework station is a high-power station designed for soldering with a lead-free solder. It features Hakko T12 series removable tips, heats up almost instantly, and guarantees the high temperature accuracy. Accta 401 soldering iron is very efficient: as there are no additional parts between the heating element and the soldering tip, the soldering alloy melts instantly.

By purchasing Accta soldering equipment, you get a 12-month warranty on the soldering station as well as the soldering iron and the heating elements of the hot air gun. Moreover, we provide technical support and advice.

What is the difference between Accta 301 & Accta 401?

The main difference is that Accta 301 is compatible with Hakko 900M soldering tips while Accta 401 is compatible with Hakko T12 soldering tips.

Features

• Ultra-compact design.
• Microprocessor control system.
• Soldering iron calibration system.
• Real-time temperature display.
• Allows temperature monitoring when the tip touches with the surface.
• Temperature parameters control using analog adjusting potentiometers.
• Hot air gun overheating protection.
• Soldering iron temperature accuracy ±5 °C.
• Soldering iron linear temperature characteristic.
• Soldering iron heat-up time up to 10 seconds (depends on the tip).
• Soldering iron auto sleep mode function.
• Hot air gun auto switch-off.
• Soldering iron compatibility with Hakko T12 standard replacement soldering tips (original Hakko T12 and AOYUE WQ).

Technical Specifications

Package Contents

1. Accta 401 Hot Air Rework Station – 1 pc.
2. Hot Air Gun Holder – 1 pc.
3. Hot Air Nozzles – 3 pcs.
4. Soldering Iron – 1 pc.
5. Hakko T12-BC2 Soldering Tip – 1 pc.
6. Soldering Iron Holder – 1 pc.
7. Tip Cleaning Sponge – 1 pc.
8. User's Manual – 1 pc.

Compatible Soldering Tips

HAKKO T12

Conical Soldering Tips (Shape B)
HAKKO T12-B	HAKKO T12-B2	HAKKO T12-B3
HAKKO T12-B4	HAKKO T12-BL	HAKKO T12-WB2
Conical Soldering Tips (Shape I)
HAKKO T12-I	HAKKO T12-IL	HAKKO T12-ILS
Bevel Type Soldering Tips (Shape BC/C)
HAKKO T12-BC1	HAKKO T12-BC2	HAKKO T12-BC3
HAKKO T12-BCF1	HAKKO T12-BCF2	HAKKO T12-BCF3
HAKKO T12-C08	HAKKO T12-C1	HAKKO T12-C4
HAKKO T12-CF4
Chisel Type Soldering Tips (Shape D)
HAKKO T12-D08	HAKKO T12-D12	HAKKO T12-D16
HAKKO T12-D24	HAKKO T12-D4	HAKKO T12-D52
HAKKO T12-DL08	HAKKO T12-DL12	HAKKO T12-DL32
HAKKO T12-DL52
Bent Type Soldering Tips (Shape J)
HAKKO T12-J02	HAKKO T12-JL02	HAKKO T12-JS02
Knife Type Soldering Tips (Shape K)
HAKKO T12-K	HAKKO T12-KF	HAKKO T12-KL
HAKKO T12-KR	HAKKO T12-KU
