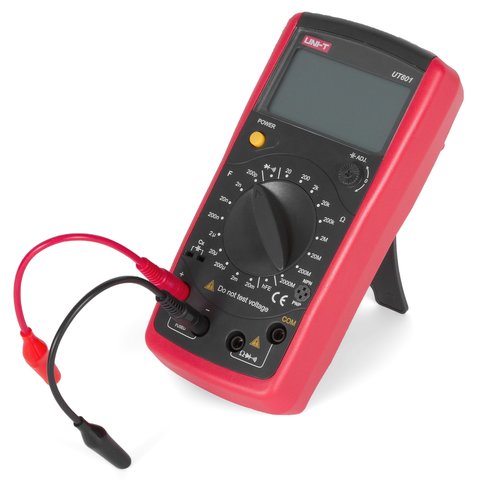

Inductance Capacitance Meter UNI-T UT601
id: 886897
Inductance Capacitance Meter UNI-T UT601
Overview
Description
Delivery
Payment
Warranty
USD 25.64
Notify
when in stock
when in stock
Overview
0.6 kg Warranty: 24 months
A digital multimeter for resistance & capacitance measurements, and for continuity, diode and transistor tests. Read more
Buy wholesale and save
Inform of price reduction
Description
UNI-T UT601 measures resistance and capacitance, and tests continuity, diodes and transistors.
Features
- Functions:
- resistance
- capacitance
- continuity test (with buzzer)
- diode test
- transistor test
- Manual ranging
- Low battery indication
Technical Specifications
| Display | 3½ (1999) digit LCD, 61 × 32 mm | |
| Resistance | Range | 20 Ω / 200 Ω / 2 kΩ / 20 kΩ / 200 kΩ / 2 MΩ / 20 MΩ / 200 MΩ / 2000 MΩ |
| Accuracy | ±(0.8%+1) | |
| Capacitance | Range | 200 pF / 2 nF / 20 nF / 200 nF / 2 µF / 20 µF / 200 µF / 2 mF / 20 mF |
| Accuracy | ±(1%+5) | |
| Sampling rate | 2-3x/s | |
| Power | 9V battery: NEDA 1604, 6F22 or 006P | |
| Dimensions (H × W × D), mm | 172 × 83 × 38 | |
| Weight, g | 312 | |

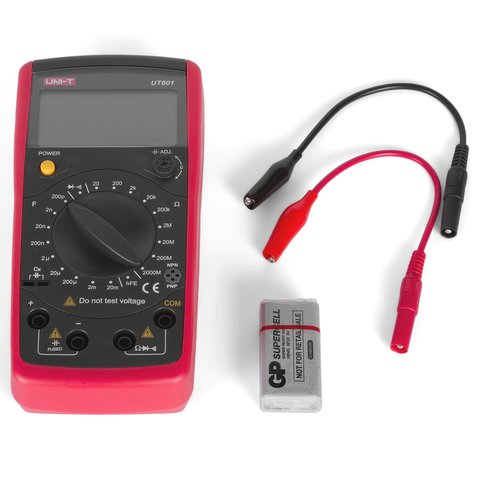

Package Contents
- UNI-T UT601 Inductance Capacitance Meter — 1 pc.
- Test clip — 1 set.
- User manual — 1 pc.
Note! Batteries are not included in the package.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
