Infrared BGA Rework Station Jovy Systems Jetronix-Eco
id: 840712
Infrared BGA Rework Station Jovy Systems Jetronix-Eco
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
Discontinued
Overview
Video
36.4 kg 220 V Warranty: 12 months
Semi-automatic infrared BGA rework system with a ceramic emisor and PC synchronization. Read more
Discontinued
You may also like
Multi-function semi-automatic infrared BGA rework system with PC synchronization and ceramic emitter for repairing PCBs of Xbox, PS3, laptops, PC motherboards, etc.
Availability in stock:
HK
ID: 841539 21 kg 220
Description

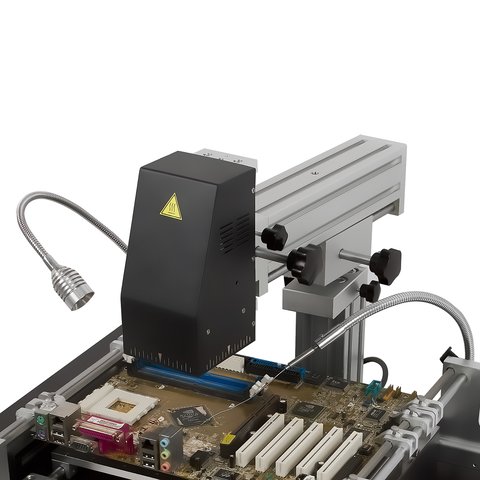

Jovy Systems Jetronix-Eco is a powerful semi-automatic infrared BGA rework system with PC synchronization.
Features
- High power: max. 3200 W.
- Three heating zones: reflow zone, inner preheating zone and outer preheating zone.
- Upper heater can move up/down, in/out and rotate 180°.
- Large preheating area: up to 245 × 245 mm.
- Three stages for full process control.
- Powerful pick-up tool.
- Wide screen LCD.
- Safety alarm function to protect PCB or application damage.
- User friendly software interface via USB 2.0.
Software
Download Jovy Systems Jetronix-Eco Software
Manuals
Download Jovy Systems Jetronix-Eco Operation Manual
Technical Specifications
| Power supply | 220 V AC, 50/60 Hz |
| Total heating power | 3200 W |
| Upper heater size | 80 mm × 80 mm |
| Upper heater power | 400 W |
| Bottom heater size | 245 mm × 245 mm |
| Bottom heater power | 2800 W |
| Max board size | up to 300 mm × 400 mm |
| Thermocouple type | K-type, built-in flexible |
| Display type | 128×64 graphical LCD |
| Suction pump | 60-90 dpi (lifting power up to 150 g) |
| Light source | 1 Watt LED |
| Memory | up to 50 profiles |
| Interface | USB 2.0 |
| Software | Jetronix-Eco Software |
| Dimensions, L × W × H | 450 × 520 × 455 mm |
| Weight | 28 Kg |
Package Contents
- Jovy Systems Jetronix-Eco Infrared BGA Rework Station Unit – 1 pc.
- Heaters – 3 pcs.
- USB Cable – 1 pc.
- Operation Manual – 1 pc.
- CD with Software and Operational files – 1 pc.
Auxiliary equipment
| Jovy Systems JV-PMC | Soldering Process Monitoring Camera |  |
| ACHI LP-56 | BGA Reballing Kit |  |
