Infrared Thermometer UNI-T UT300A+
id: 898465
0.8 kg Warranty: 24 months
An easy-to-use infrared thermometer for non-contact temperature measuring within the range from –20ºC to 400ºC. Equipped with a powerful laser and a backlit LCD. Read more
Buy wholesale and save
Inform of price reduction

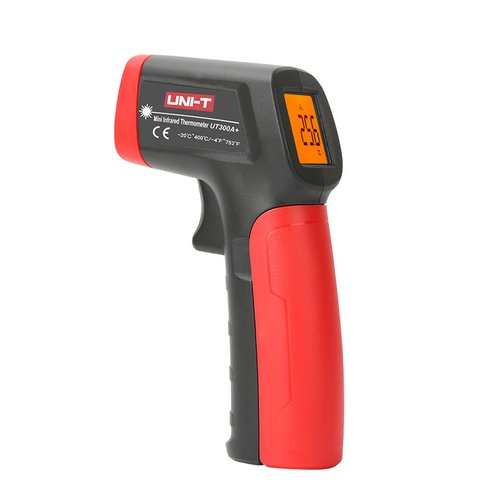

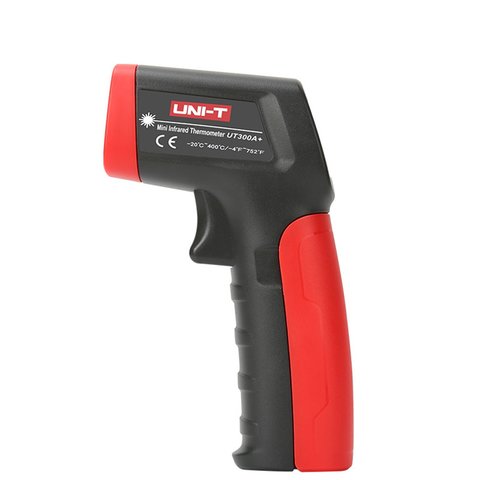

UNI-T UT300A+ is a reliable and easy-to-use infrared thermometer for non-contact temperature measuring within the range from –20ºC to 400ºC / -4℉ to 752℉. The device features a single laser (wavelength 630 nm~670 nm), backlit LCD, fast response, and 10:1 D:S ratio.
This infrared ihermometer is NOT a medical device. However, you should always maintain safety and security while working:
- make sure the laser beam don't get into your eyes;
- don't let children play with the device;
- don't use the device near surfaces that could reflect the laser beam into anyone's eyes.
Features
- Temperature measurement range: –20ºC ~ 400ºC / -4℉~752℉.
- Simple one button operation.
- Single laser targeting.
- Backlit LCD.
- Auto data hold (8 seconds).
- Auto power off.
- Low battery indication.
- ºC/ºF selectable.
- Power-off memory.
Technical Specifications
Measurement range | -20℃~400℃ |
-4℉~752℉ | |
Accuracy | >0℃: ±2.0℃ or ±2%; ≤0℃: ±(2.0℃+0.1℃/℃) |
>32℉: ±4.0℉ or ±2%; ≤32℉: ±(4.0℉+0.1℉/℉) | |
Repeatability | 1℃ or 1.0% (2℉ or 1.0%) |
D:S ratio | 10:1 |
Response time | ≤500 ms (95% of reading) |
Emissivity | 0.95 |
Spectral response | 5.5 μm~14 μm |
Laser | single laser, class 2, power < 1 mW, wavelength 630 nm~670 nm |
General Specifications | |
---|---|
Data hold | 8 seconds |
Display | LCD, 20 mm × 24 mm |
Power | 1.5V battery (LR03) × 2 pcs. |
Operating temperature | 0℃~50℃ (32℉~122℉) |
Storage temperature | -20℃~60℃ (-4℉~140℉) |
Operating humidity | <90% RH (non-condensing) |
Drop test | 1 m |
Dimensions | 135 mm × 94 mm × 36.5 mm |
Weight | 146 g |
User Manual
Download UNI-T UT300A+ user manual.
Package Contents
- Infrared Thermometer UNI-T UT300A+ — 1 pc.
- User Manual — 1 pc.
