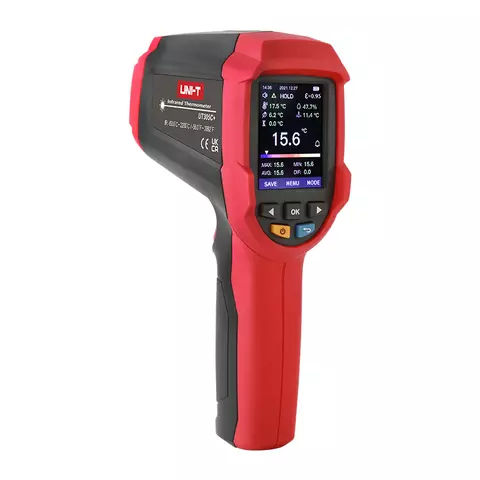

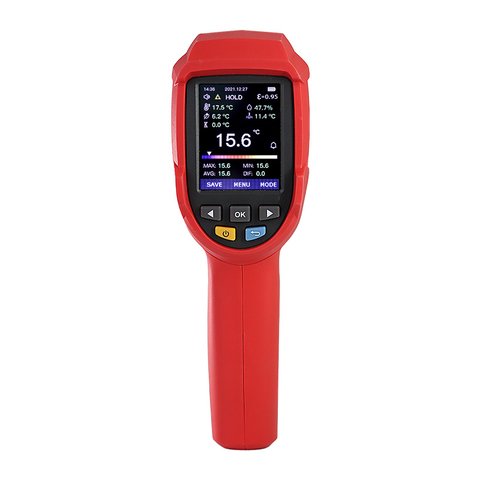

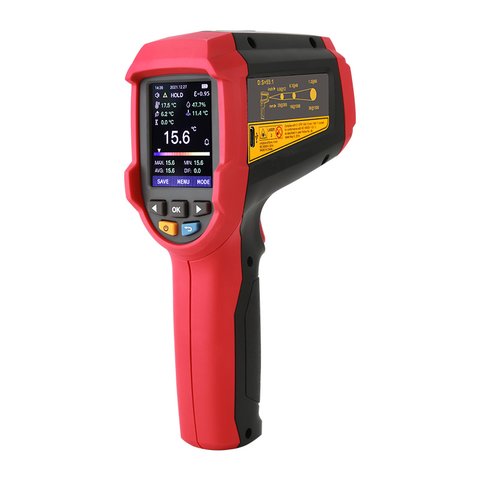

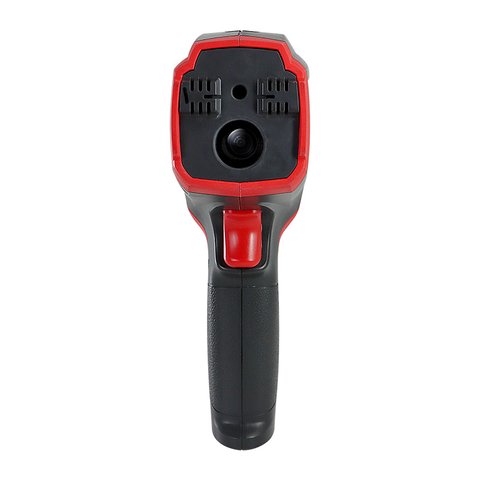

Infrared Thermometer UNI-T UT305C+
id: 914029
0.45 kg Warranty: 24 months
High-precision, high distance ratio (55:1), and wide temperature range (-50°C–2200°C) non-contact infrared thermometer. Read more
Inform of price reduction
UNI-T UT305C+ is a high-precision, non-contact infrared thermometer with a high-distance ratio of 55:1 and a wide temperature range from -50°C to 2200°C. It is designed to detect the thermal insulation performance of various types of equipment and is suitable for applications such as furnace kilns, heat transfer pipes, building thermal bridge effects, cold storage, greenhouses, floor heating, and other fields.
Features
- Infrared professional mode.
- Surface heat conduction detection mode.
- Surface dew point detection mode.
- Surface temperature comparison mode.
- High-resolution TFT color LCD.
- Trigger lock function, reservation measurement.
- 999 groups of data storage, with data output support in PDF and CSV formats.
- High precision display of ambient temperature, relative humidity, dew point temperature, and wet bulb temperature.
- Type K thermocouple temperature measurement.
Technical Specifications
Measurement range | Infrared temperature measurement | -50°C~2200°C (-58.0℉~3992℉) |
The environment temperature measurement | -10°C~50°C (14℉~122℉) | |
Relative humidity | 10% ~ 90% | |
Type K thermocouple | -50°C~1370°C (-58.0℉~2498℉) | |
Accuracy | Infrared temperature measurement | -50°C~0°C, ±(1.0℃+0.1℃/℃) -58℉~32℉, ±(2.0℉+0.1℉/℉) 0°C~2200°C, ±1.0℃ or ±0.01×t℃ (which is greater) 32℉~3992℉, ±2.0℉ or ±0.01×t℉ (which is greater) |
The environment temperature measurement | -10°C~0°C (14℉~32℉), ±1.0°C (±2.0℉) 0°C~40°C (32℉~104℉), ±0.5℃ (±1.0℉) 40°C~50°C (104℉~122℉), ±1.0℃ (±2.0℉) |
|
Relative humidity | ±5% | |
Type K thermocouple | ±(0.005×t+1.5)℃, ±(0.005×t+3.0)℉ | |
Distance ratio (D:S) | 55:1 | |
Emissivity | 0.1~1.0 (adjustable) | |
Spectral response | 8 µm~14 µm | |
Repeatability of infrared temperature measurement | ±0.005×t℃(℉) or 1℃(2℉) (which is greater) | |
Display resolution | 0.1℃(0.1℉) | |
Laser type | single laser, output <1mW, class II | |
USB communication | available | |
Temperature coefficient | ±0.1℃/℃ or ±0.1%℃/℃, ±0.1℉/℉ or ±0.1%℉/℉ (which is greater) | |
Unit conversion | ℃ / ℉ | |
Data storage | 999 groups | |
Data output format | PDF, CSV | |
Data communication or charging interface | Type-C USB | |
Power | Li-ion 3.7V 2600mAh 18650 rechargeable lithium-ion battery | |
Charging time | No more than 3 hours | |
Continuous working time | Work continuously for no less than 20 hours on full charge | |
Buzzer alarm | available | |
Trigger lock function and reservation measurement | available | |
Real time, date | available | |
Max. altitude | 2000 m | |
Drop test | 1 m | |
K-type thermocouple probe (bead type) | Measurement range | -40°C - 260°C (-40°F - 500°F) |
Accuracy | 0.075 ×T (t is measured temperature) | |
Length | 1 m (40 in) with standard micro thermocouple connector and bead probe | |
Display | 2.4-inch TFT LCD 320 × 240 pixels | |
Display dimensions | 37 mm × 49 mm | |
Thermometer dimensions | 205 mm × 65 mm × 124 mm | |
Thermometer weight | 375 g |
User Manual
Download UNI-T UT305C+ user manual.
Package Contents
- Infrared Thermometer UNI-T UT305C+ — 1 pc.
- Type-C Data Cable — 1 pc.
- Type K Thermocouple Probe (bead type) — 1 pc.
- User Manual — 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
