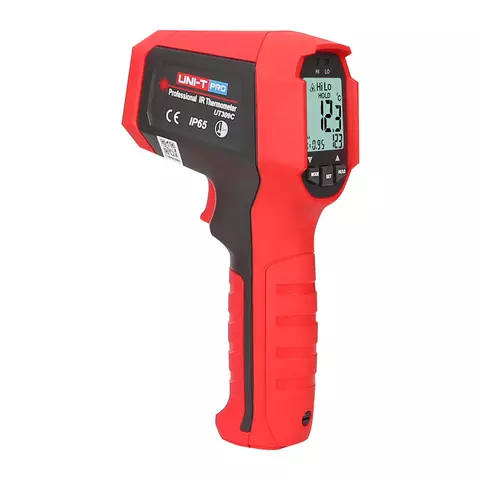

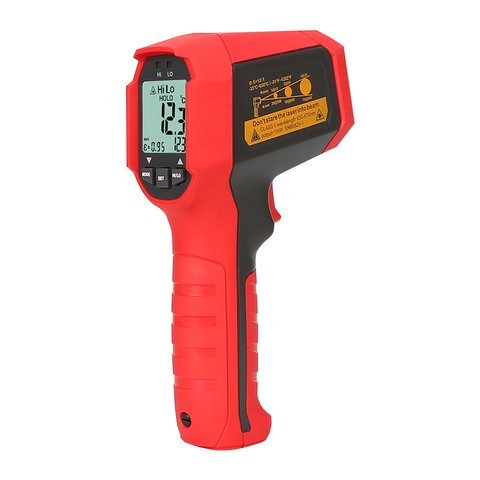

Infrared Thermometer UNI-T UT309C
id: 908749
1 kg Warranty: 24 months
An infrared pyrometer for surface temperature measurements within the range from -35 ºC to 650 ºC. Response time: 250 ms. D:S ratio: 12:1. Read more
Inform of price reduction
UNI-T UT309C is an infrared thermometer for non-contact surfaces and objects temperature measuring within the range from -35 ºC to 650 ºC. It is designed to meet some of the highest protection ratings in UNI-T's product line, IP65. UNI-T UT309A is 3 m drop proof.
With a rapid response rate of 250 ms, high measuring accuracy and multiple scanning modes, UNI-T UT309C proves to be a necessary tool for engineers and technicians working in various fields such as electrical distribution inspection, HVAC maintenance, transportation equipment inspection and instrument repair etc.
Features
- IP65 dust and water protection.
- Strong and durable case: drop test from a height of 3 m.
- Large backlit LCD.
- Scanning modes: MAX / MIN / AVG / DIF.
- High/low temperature alarm with LED indication.
- Lock measurement.
- Data hold function.
- Auto power off.
Technical Specifications
Temperature range | -35 °C ~ 650 °C |
-31 °F ~ 1202 °F | |
Accuracy | ≥0 °C: ±1.8 °C or ±1.8% |
<0 °C: ±(1.8 °C + 0.1 °C/°C) | |
≥32 °F: ±3.6 °F or ±1.8% | |
<32 °F: ±(3.6 °F + 0.1 °F/°F) | |
Resolution | 0.1 °C / 0.1 °F |
D:S ratio | 12:1 |
Response time | 250 ms (95% of reading) |
Emissivity | 0.1~1 adjustable |
Number of lasers | Dual lasers |
Laser type | Class 2 |
Laser power | <1 mW |
Laser wavelength | 630 nm-670 nm |
Spectral response | 8 μm ~ 14 μm |
Power | 9V battery (6F22) |
Display | LCD 32 mm × 29 mm |
Dimensions | 189 mm × 118 mm × 55 mm |
Weight | 292 g |
User Manual
Download UNI-T UT309C user manual.
Package Contents
- Infrared Thermometer UNI-T UT309C — 1 pc.
- PC Software CD — 1 pc.
- Carrying Bag — 1 pc.
- User Manual — 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
