Insulation Resistance Tester UNI-T UT502A
id: 854601

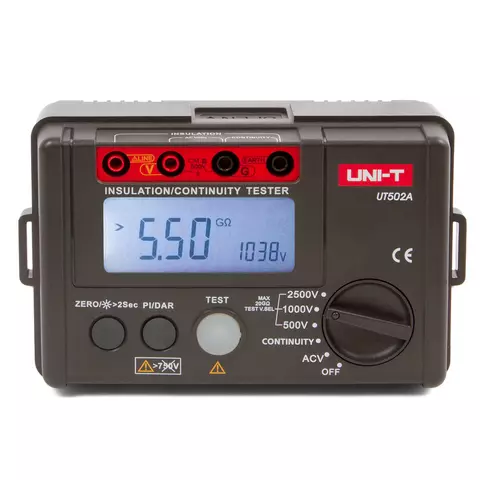

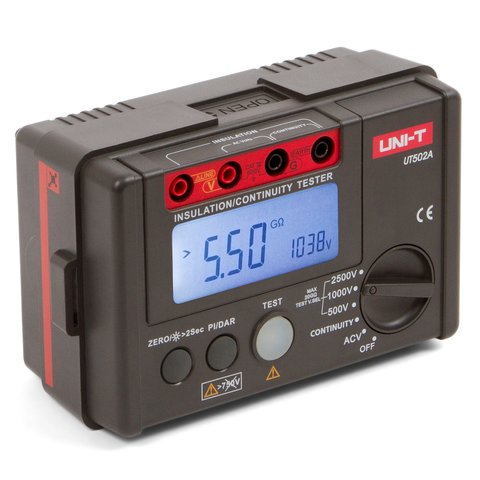

Insulation Resistance Tester UNI-T UT502A
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 78.30
Overview
1.5 kg
Availability in stock:
HK
Warranty: 24 months Measuring resistance from 0 MΩ to 20 GΩ. Test voltages may be selected between 500 V / 1000 V / 2500 V. Read more
USD 78.30
You may also like
Description
UNI-T UT502A Insulation Resistance Tester with high accuracy, stable performance and a wide range of functions.
Features
- Auto range
- Low battery indication
- LCD backlight
- Alarm buzzer
- High voltage Indication
- Overload Indication
Technical Specifications
| Function | Range | Best Accuracy | |
|---|---|---|---|
| Insulation Resistance (Ω) | Test Voltage | 500 V / 1000 V / 2500 V | 0%~10% |
| 500 V | 0.00 MΩ～99.9 MΩ | ±(3%+5) | |
| 100 MΩ ～5.5 GΩ | ±(5%+5) | ||
| 1000 V | 0.00 MΩ ～99.9 MΩ | ±(3%+5) | |
| 100 MΩ ～5.5 GΩ | ±(5%+5) | ||
| 2500 V | 0.00 MΩ ～99.9 MΩ | ±(3%+5) | |
| 100 MΩ ～9.9 GΩ | ±(5%+5) | ||
| 10.0 GΩ ～20.0 GΩ | ±(10%+5) | ||
| Load Current | 500 V (R = 500 KΩ) 1 mA | 0%~10% | |
| 1000 V (R = 1 MΩ) 1 mA | 0%~10% | ||
| 2500 V (R = 2.5 MΩ) 1 mA | 0%~10% | ||
| Short Circuit Current | <2mA | ||
| Continuity (Ω) | Test Voltages | about 5.0 V | ±(2%+3) |
| 0.01 Ω ~ 200 Ω | |||
| Max Current | >200 mA | ||
| AC Voltage (V) | 30 V ～ 750 V | ±(2%+3) | |
| General Characteristics | |||
| Power | 1.5 V Batteries (LR6) × 6 | ||
| LCD Size | 70.6mm × 34mm | ||
| Net Weight | 500 g | ||
| Size | 150 mm × 100 mm × 71 mm | ||

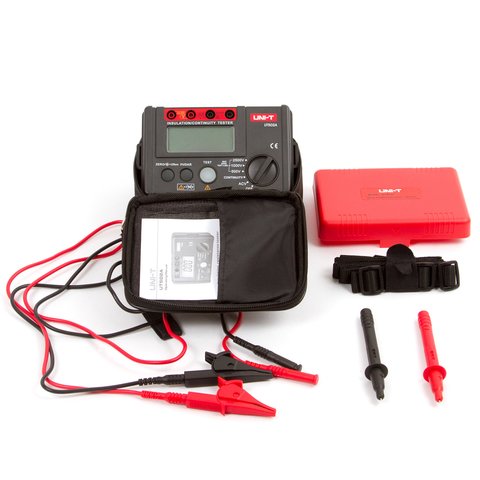

Package Contents
- UNI-T UT502A Insulation Tester — 1 pc.
- Test Lead — 2 pcs.
- Alligator Clip — 2 pcs.
- Test Probe — 2 pcs.
- User Manual — 1 pc.
- Carrying Bag — 1 pc.
- Strap - 1 pc.
Note! Batteries are not included in the package.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
