Description

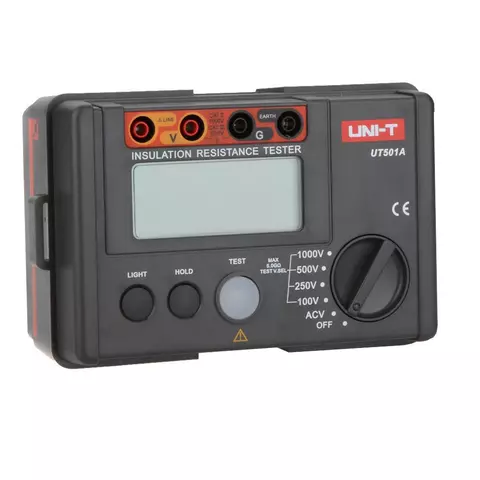

UNI-T UT501A insulation tester measures resistance, insulation resistance and AC voltage.
Features
- Auto ranging
- Alarm light display and buzzer
- Low battery indication
- LCD backlight
- High voltage indication
- Overload indication
Technical Specifications
| Function | Range | Accuracy | |
|---|---|---|---|
| Insulation Resistance | Test Voltage | 100 V / 250 V / 500 V / 1000 V | 0%~10% |
| 100 V | 0.00 MΩ~100 MΩ | ±(3%+5) | |
| 250 V | 0.00 MΩ~99.9 MΩ | ±(3%+5) | |
| 100 MΩ~5.5 GΩ | ±(5%+5) | ||
| 500 V | 0.00 MΩ~99.9 MΩ | ±(3%+5) | |
| 100 MΩ~5.5 GΩ | ±(5%+5) | ||
| 1000 V | 0.00 MΩ~99.9 MΩ | ±(3%+5) | |
| 100 MΩ~5.5 GΩ | ±(5%+5) | ||
| Load Current | 50V(R=50KΩ) 1 mA | 0%~10% | |
| 100V(R=100KΩ) 1 mA | 0%~10% | ||
| 250V(R=250KΩ) 1 mA | 0%~10% | ||
| 500V(R=500KΩ) 1 mA | 0%~10% | ||
| 1000V(R=1MΩ) 1 mA | 0%~10% | ||
| Short Circuit Current | < 2 mA | ||
| AC Voltage | 30 V~750 V | ±(2%+3) | |
| General Characteristics | |||
| Power | 6 × AA battery | ||
| Display | LCD with backlight, 70.6 × 34 mm | ||
| Dimensions (H × W × D), mm | 150 × 100 × 71 mm | ||
| Weight | 500 g | ||
User Manual
Download UNI-T UT501A User Manual.
Package Contents
- Megaohmmeter UNI-T UT501A — 1 pc.
- Test leads — 1 set
- Test probes — 1 set
- Alligator clip — 1 pc.
- Carrying bag — 1 pc.
- Strap — 1 pc.
- User manual — 1 pc.
Note! Batteries are not included in the package.
