Insulation Tester UNI-T UT533
id: 830021
1.1 kg Warranty: 24 months
Multimeter and insulation tester in a single compact unit that is capable of measuring DC and AC voltage, DC and AC current, resistance, capacitance and temperature. Read more
Buy wholesale and save
Inform of price reduction

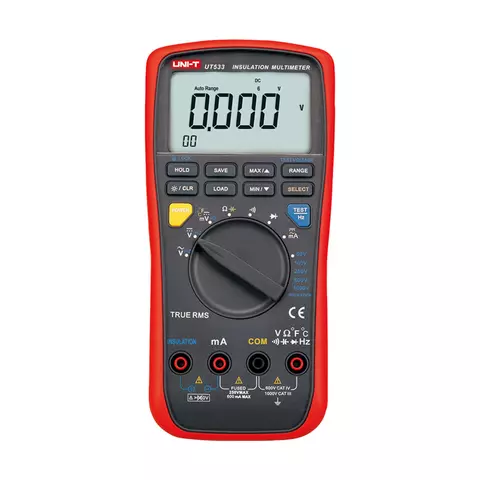

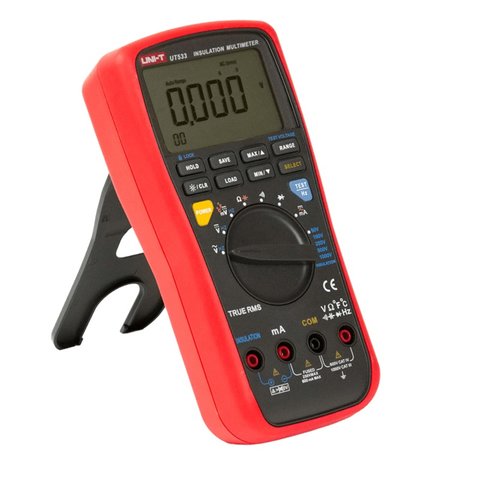

UNI-T UT533 is a multimeter and insulation tester in a single compact unit that is capable of measuring DC and AC voltage, DC and AC current, resistance, capacitance and temperature.
User Manual
Download UNI-T UT533 Insulation Tester User Manual
Features
- Measurement functions:
- insulation resistance
- resistance
- capacitance
- frequency
- DC voltage
- AC voltage
- DC current
- AC current
- Auto ranging
- Data hold
- Low battery indication
Technical Specifications
Display | LCD with backlight, 81 × 46 mm | |||
Insulation Resistance Measurement | Range | 50 V: 0.1 MΩ ~ 50.0 MΩ 250 V: 0.2 MΩ ~ 99.9 MΩ 500 V: 0.5 MΩ ~ 99.9 MΩ 1000 V: 4.0 MΩ ~ 99.9 MΩ |
||
Accuracy | ±3% | |||
Current | Range | 250 V | 60 mA / 600 mA | |
500 V | ||||
1000 V | ||||
Accuracy | ±1.0% | |||
Voltage measurement | 60 mV / 600 mV / 6 V / 60 V / 600 V / 1000 V | |||
Accuracy | 0.09% +6 | |||
Power | 1.5 V Battery (6 pcs.) | |||
Dimensions (H × W × D), mm | 97 × 203 × 46 | |||
Weight, kg | 0.55 |

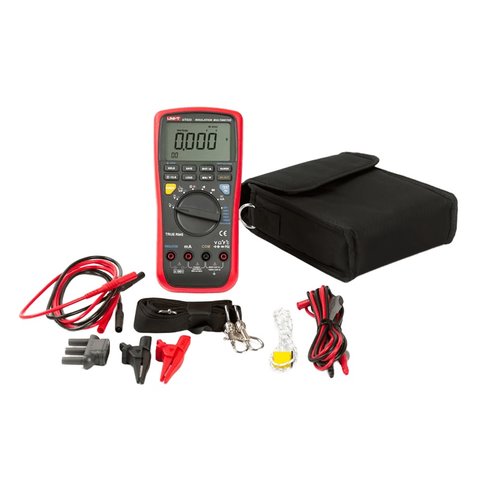

UNI-T UT533 Insulation Tester Package
- Insulation tester UNI-T UT533 (1 pc.)
- Test lead (1 pc.)
- Alligator clip (1 pc.)
- Point contact (1 pc.)
- Temperature probe (1 pc.)

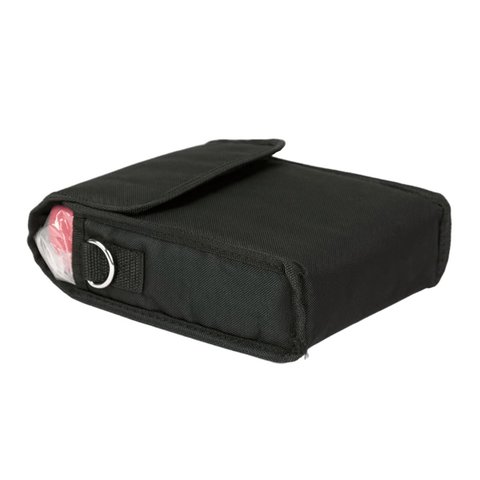

- Carrying bag (1 pc.)
- User manual (1 pc.)
Note! Batteries are not included in the package.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
