Overview

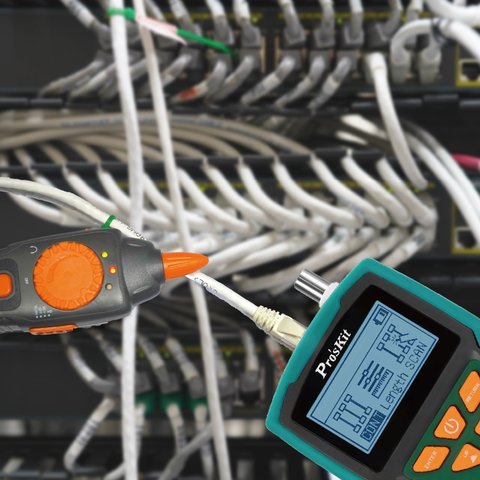

The Toner and Probe set is used to measure cable length and quickly trace and identify cables or wires within a group and also check the operation of telephone lines. Read more
Inform of price reduction
Description

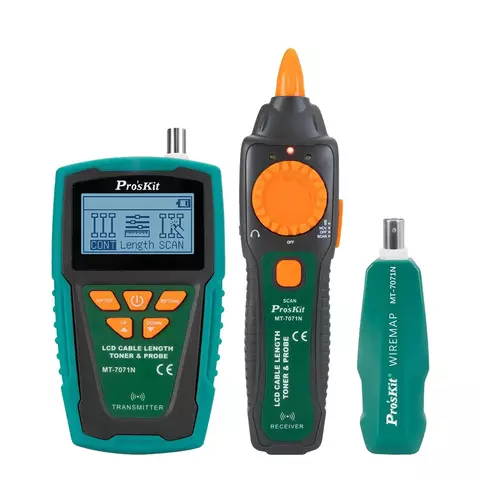

Pro'sKit MT-7071N is a cutting-edge LCD Cable Length Toner & Probe Kit. This high-tech tool quickly measures cable length, identifies wires, and tests telephone lines. Its advanced features include noise elimination, an LCD with language options, and compatibility with various networks and cables. Ideal for telecom, networking, monitoring, CATV, and wiring projects, the MT-7071N ensures efficiency and reliability in one compact kit.
Features
- Offers precise cable length measurement, making it a must-have for accurate network and wiring installations.
- With cutting-edge high-frequency filter circuit technology, it effectively eliminates noise and interference, ensuring clear cable tracking and identification.
- LCD provides clear and intuitive information, with language options in both Chinese and English for user convenience.
- Suitable for ordinary networks, PoE setups, UTP/STP cables, and port identification, this kit adapts to various networking needs.
- Equipped with network cable and BNC coax map testing functionality, it ensures successful wiring projects for telecommunications, network communications, monitoring, CATV installations, and indoor or outdoor wiring projects.
Technical Specifications
| Transmitter | ||
|---|---|---|
| Display | LCD 128×64 pixels, 50 mm × 27.5 mm | |
| Language | Chinese, English | |
| Connectors | RJ45 × 2 pcs., BNC × 1 pc. | |
| Battery | 9V: 6LR61 or 6F22 | |
| Cable Mapping | Cable Type | CAT.5E; CAT.6; CAT.6A; CAT.7 cable; telephone cable; BNC coax |
| Max Range | 300 m | |
| Display | LCD: R&M 1-8/G | |
| Cable Length Measurement | Cable Type | CAT.5E; CAT.6 cable; telephone cable |
| Range | 2.5 m-200 m | |
| Units | meters/ yards / feet, selectable option | |
| Accuracy | ±5% | |
| Cables Tracing | Cable Type | CAT.5E; CAT.6; CAT.6A; CAT.7 cable; telephone cable; BNC coax |
| Scan Range | 600 m | |
| Frequency | 455 kHz | |
| Max. Signal Voltage | 9V±1Vp-p | |
| Port Flash | Flash Frequency | 3 sec/time |
| Link Test | 10M/100M/1000M; FDX/HDX; Auto-Nego/Non-Auto Nego | |
| Back Light | 5 s/10 s/15 s/on/off | |
| Auto OFF | 15 min/30 min/1 hour/off | |
| Working Current | ≤150 mA | |
| Protection | ≤60V DC | |
| Dimension | 138 mm × 80 mm × 35 mm | |
| Receiver | ||
| Switch | 4 positions | |
| Key Press | 1 | |
| Response Frequency | 455 kHz | |
| Sound dB | ≥85 dB | |
| Receiver Signal | elimination of noise | |
| Tone Mode | 1 mode | |
| Sensitivity | knob-operated control | |
| Indicator | 3 LEDs | |
| Flashlight Lighting | 1 LED | |
| Connector | RJ45 | |
| Earphone Jack | Φ3.5 mm×1 | |
| Battery | 9V: 6LR61 or 6F22 | |
| Working Current | ≤100 mA | |
| Dimension | 202 mm × 50 mm × 32 mm | |
| Remote Unit | ||
| Connectors | RJ45×1, BNC×1 | |
| Dimension | 106 mm × 32 mm × 30 mm | |

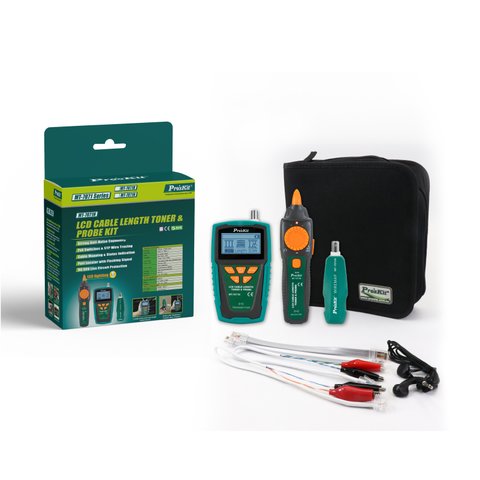

Package Contents
- Transmitter — 1 pc.
- Receiver — 1 pc.
- Remote Unit — 1 pc.
- Earphone — 1 pc.
- RJ45-RJ45 Cable — 1 pc.
- RJ11-RJ11Cable — 1 pc.
- RJ45 Alligator Clips — 1 set
- RJ11 Alligator Clips — 1 set
- User Manual — 1 pc.
- Storage Bag — 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
