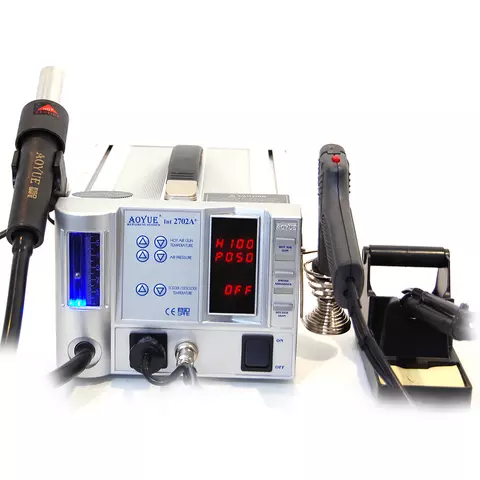

Lead-Free Hot Air Soldering Station AOYUE 2702A+ (110 V)

AOYUE 2702A+ is a lead-free hot air soldering station which combines hot air gun, soldering iron, desoldering gun and smoke absorber functions. AOYUE 2702A+ can be used to work with the full range of electronic components (DIP, SOIC, CHIP, QFP, BLCC, BGA, etc).

AOYUE 2702A+ lead-free hot air soldering station review at Toolboom online store

Features

• 4 in 1: hot air gun, soldering iron, desoldering gun, and smoke absorber.
• Microprocessor controlled ESD safe unit.
• Set and actual temperature of hot air gun, soldering iron, air pressure and desoldering gun temperature digital control and display.
• Auto-sleep mode: setting up time (1 to 20 minutes), after which soldering station automatically comes to sleep mode and returns to previous settings when the handle is held up again.
• Programmable auto reworking time (20 to 9999 s).
• Auto-cool function: increasing the reliable operation of the station and its components.
• Compatibility with AOYUE air nozzles
• Compatibility with AOYUE LF-series tips

Applications

• In medium and large scale service centers
• Mobile and radio systems devices repair
• Cellular phones, PDAs, handhelds, laptops, notebooks, and motherboards repair
• LAN, network nodes, and military communications systems equipment repair
• BGA reballing.

Technical Specifications

Video

You'll find even more video reviews in the Video tab. Go and check it out!

User Manual

  Download AOYUE 2702A+ User Manual.

Package Contents

• Main station — 1 pc.
• Hot air gun — 1 pc.
• Hot air gun holder — 1 pc.
• Soldering iron with smoke absorber — 1 pc.
• Soldering iron holder — 1 pc.
• Soldering iron tip with heater cartridge — 1 pc.
• Air nozzles (1124, 1130, 1197, 1313, 1919) — 5 pcs.
• Nozzle cleaning pin — 1 pc.
• Spare hot air gun heating element — 1 pc.
• Vacuum suction pen — 1 pc.
• IC popper — 1 pc.
• Power cord (1 m) — 1 pc.
• User manual — 1 pc.

Compatible Soldering Tips

Conical Soldering Tips
AOYUE WQ-LI	AOYUE WQ-I	AOYUE WQ-LB
AOYUE WQ-B	AOYUE WQ-2B
Bevel Type Soldering Tips
AOYUE WQ-1BC	AOYUE WQ-2BC	AOYUE WQ-3BC
AOYUE WQ-1C	AOYUE WQ-4C
Chisel Type Soldering Tips
AOYUE WQ-08D	AOYUE WQ-12D	AOYUE WQ-16D
AOYUE WQ-24D	AOYUE WQ-4D	AOYUE WQ-52D
AOYUE WQ-08LD	AOYUE WQ-12LD
Bent Type Soldering Tips
AOYUE WQ-02J
Knife Type Soldering Tips
AOYUE WQ-K	AOYUE WQ-KL	AOYUE WQ-KU
Microwave Type Soldering Tips
AOYUE WQ-2BCM	AOYUE WQ-3BCM
Tunnel Type Soldering Tips
AOYUE WQ-1401	AOYUE WQ-1402	AOYUE WQ-1403
AOYUE WQ-1404
