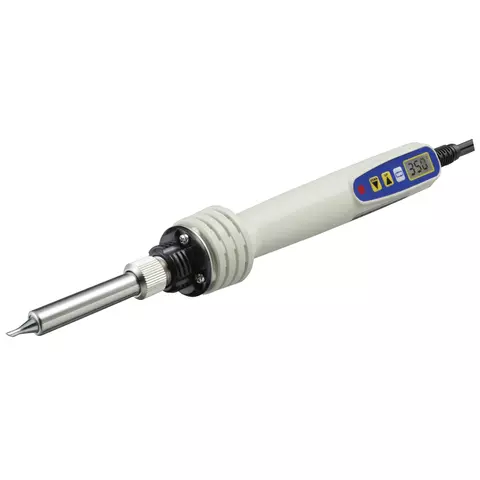

Lead-Free Temperature Controlled Soldering Iron Goot PX-280
id: 910349
0.5 kg
Availability in stock:
HK
Warranty: 12 months Smart and compact soldering iron with digital display and ceramic heating element (50W max.) for lead-free soldering. Temperature setting range from 200°C to 500°C. Read more
Inform of price reduction
Suggest your price
Goot PX-280 is a compact temperature controlled soldering iron with a ceramic heating element designed for lead-free soldering. This model features excellent heat recovery, as well as SLEEP and SHUTDOWN functions to extend soldering tip life, and avoid troubles from unplugging the iron.
Goot PX-280 is equipped with a digital display, with the UP / DOWN keys used to adjust the temperature from 200°C to 500°C in 1°C increments.
Features
- Power consumption: 50 W.
- Temperature setting range: from 200°C to 500°C.
- Digital display with KEY LOCK option.
- Lead-free applicable.
- Excellent heat recovery. Can be used for continuous soldering work at the manufacturing site.
- SLEEP / SHUTDOWN functions.
- Fast heating: gets to 350°C in just 30 seconds with a standard tip.
- With a high-power heater and sensor, there is almost no temperature fluctuation during heavy-duty continuous operation.
- Comfortable, ergonomic grip.
- Compatible with soldering iron stands for ceramic-heater soldering irons (ST-76, ST-77).
- Goot PX-28RT-S2C soldering iron tip included.
Technical Specifications
Voltage | 220-240 V AC 50/60 Hz |
Power Consumption | 50 W max. |
Temperature Setting Range | from 200°C to 500°C |
Ripple Temperature | ±5°C (unloaded) |
Insulation Resistance (500 V DC) |
100 MΩ or more |
Heater | ceramic |
Power Cable Length | 1.5 m |
Soldering Iron Length (without power cable) | 219 mm |
Weight (without power cable) | 70 g |
Video
Package Contents
- Lead-Free Temperature Controlled Soldering Iron Goot PX-280 — 1 pc.
- Soldering Tip Goot PX-28RT-S2C — 1 pc.
Compatible Soldering Tips
PX-28RT-S2C |
PX-28RT-S2CF |
PX-28RT-B |
PX-28RT-SB |
PX-28RT-1BC |
PX-28RT-2.3BC |
PX-28RT-3BC |
PX-28RT-3BCF |
PX-28RT-4BC |
PX-28RT-4BCF |
PX-28RT-1C |
PX-28RT-1CF |
PX-28RT-5C |
PX-28RT-1.6D |
PX-28RT-2.4D |
PX-28RT-3.2D |
PX-28RT-5D |
PX-28RT-3K |
PX-28RT-5K |
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
