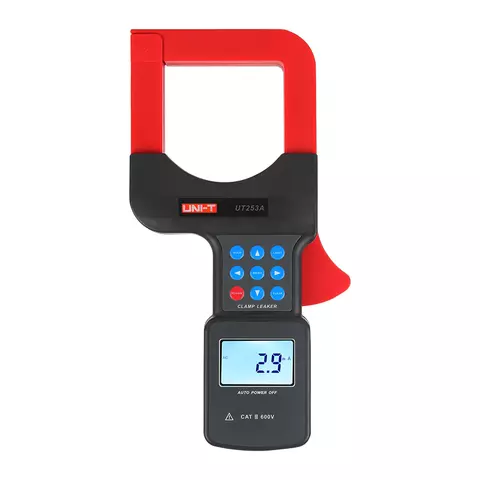

Leakage Current Clamp Meter UNI-T UT253A
id: 912310
2.8 kg Warranty: 24 months
High-precision leakage clamp meter that can measure up to 1200 A with a large 80×80 mm jaw to clamp up to 96 mm cables and flat-steel ground wires Read more
Inform of price reduction
UNI-T UT253A is a is a high-precision professional leakage clamp meter capable of measuring up to 1200A. It features a large 80×80 mm jaw, allowing it to clamp large-diameter cables and flat-steel ground wires for precise measurements of leakage current, current, and three-phase AC voltage. Advanced CT and digital integration technologies, automation functions, and substantial clamp diameter make it suitable for various applications such as electric power installations, communications facilities, railway infrastructure, oil fields, and construction sites.
Features
- Large 80 × 80 mm jaw can enclose 80 mm conductor cables or 96 × 4 mm flat steel ground wires;
- Simultaneous measurement and display of one-way leakage current and three-way voltages;
- Clamp iron core made with special alloy and the use of advanced magnetic screening technology to avoid magnetic interference and provide high measurement accuracy;
- Data hold function with the ability to save 99 measurement data sets;
- An option to transmit data to a PC for further analysis via a USB port;
- Automatic function switchover;
- Intelligent design for quick and efficient operation;
- Display backlight;
- Overload display;
- Auto power off;
- Low battery indication
Technical Specifications
Specifications | Range | Accuracy |
---|---|---|
Leakage current (A) | 0 mA ~ 300 A | ±(1.5%+3) |
300 A ~ 1200 A | ±(2%+3) | |
0 - 600 V (50 - 60 Hz) | ±(1.5%+3) | |
Resolution | 0.01 mA | |
Product Details | ||
Display | 128 × 64 (47 × 28.5 mm) LCD | |
Clamp size | 80 × 80 mm | |
Data logging | 200 | |
Sample rate | 2 times per second | |
Testing mode | Clamp-shape CT, integral mode | |
Power | 6 V DC / LR6 1.5V AA battery × 4 | |
Battery life | 12 hrs | |
Insulation strength | AC 2 kV/rms (between iron core and housing) | |
Operating temperature | -10 ~ 40°C | |
Storage temperature | -10 ~ 60°C | |
Dimensions | 275 × 145 × 40 mm | |
Weight | 830 g (with batteries) |
User Manual
Download UNI-T UT253A/UT253B Leakage Current Clamp Meter User Manual.
Package Contents
- UNI-T UT253A leakage current clamp meter — 1 pc.
- Test leads — 4 pcs.
- 1.5V AA battery (LR6) — 4 pcs.
- PC software CD — 1 pc.
- User manual — 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
