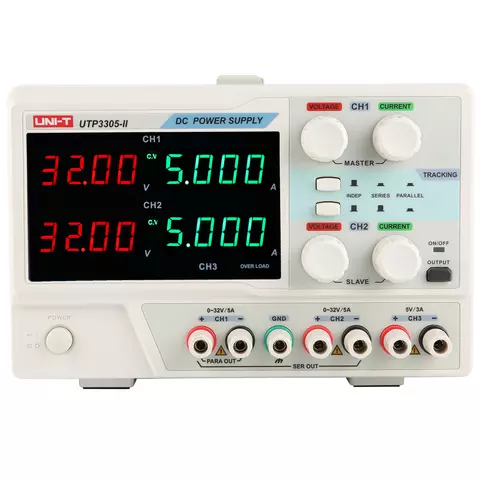

Linear DC Power Supply UNI-T UTP3305-II
id: 907385
11.5 kg Warranty: 24 months
Three-channel linear DC power supply with overvoltage/current/temperature protection. Output voltage: 0~32 V. Output current: 0~5 A Read more
Inform of price reduction
UNI-T UTP3305-II is a linear DC power supply that features two fully adjustable channels and one fixed channel. The adjustable channels provide 0~32V output voltage and 0~5A output current. The third channel provides a fixed output of 5V and 3A. The power supply is equipped with a temperature-controlled cooling system and OVP, OCP, OTP, and reverse polarity protection. Besides, the device features tracking and series/parallel output.
Features
- Two fully adjustable channels (0~32 V) and one fixed channel (5 V).
- Display mode: LED displaying voltage and current simultaneously.
- Low ripple and noise.
- Overvoltage/current/temperature protection.
- Reverse polarity protection.
- Parallel/series output function.
- Output on/off control.
- Intelligent temperature control fan.
Technical Specifications
Output Voltage (CH1/CH2) | 0~32 V |
Output Voltage (CH3) | 5 V |
Output Current (CH1/CH2) | 0~5 A |
Output Current (CH3) | 3 A |
Output Power | 335 W |
Load Regulation | CV: <0.01%+3 mV; CC: <0.2%+3 mA |
Ripple and Noise | CV: ≤1 mVrms; CC: ≤3 mArms |
Output Regulation Resolution | CV: 10 mV (typical), CC: 1 mA (typical) |
Tracking Bias | CC: ±(0.3% of reading + 10 mA) |
Reliability | MTBF(e): ≥2000 hours |
Display Mode | 4-bit voltage and current dual display |
General Specifications | |
---|---|
Power | input voltage: 115 V AC/230 V AC; frequency: 47 Hz~63 Hz |
Display | 4 windows, LED |
Dimensions | 226 mm × 146 mm × 319 mm |
Weight | 10.5 kg |
Package Contents
- UNI-T UTP3305-II linear DC power supply — 1 pc.
- Power cord — 1 pc.
- Crocodile clip cable — 2 pcs.
- User manual — 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
