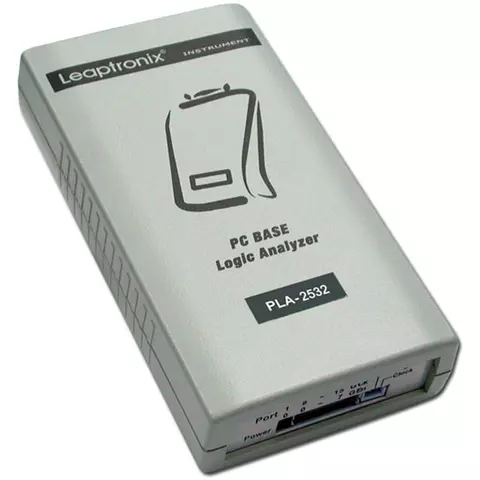

Logic Analyzer Leaptronix PLA-2532
id: 840069
1 kg Warranty: 6 months
PC based 32 channel logic analyzer with 250 MSa/s and 100 MHz bandwidth. Read more
Buy wholesale and save
Inform of price reduction
Leaptronix PLA-2532 is a reliable 32-channel logic analyzer with 100 MHz bandwidth and 250 MSa/s sample rate. Leaptronix PLA-2532 logic analyzer is compatible with software produced by other manufacturers which enables creation of the automatic testing systems. PLA-2532 can be used in digital troubleshooting, debugging process, chip making, computer and networking industries.
Leaptronix PLA-2532 Logic Analyzer Features
- Internal (asynchronous) and external (synchronous) capture
- The cursor mark shows timing of each trigger point
- Binary code and hexadecimal list modes of display
- Data and waveform saving
- High-speed zoom in / zoom out function
- Text file for waveform binary code saving
- Powered by USB
Leaptronix PLA-2532 Logic Analyzer Technical Specifications
Sample Rate (asynchron) | 250 MHz (4 ns) |
Sample Rate (synchron) | 100 MHz |
Bandwidth | 100 MHz |
Channels | 32 |
RAM Size | 2 MB |
Memory depth | 512 KBits per 36 channels |
Trigger counter | 1 to 255 |
Trigger mode | Pattern / Edge / AND / OR |
Trigger channel | 32 channels |
Continious or discontinious trigger | yes |
Trigger output | yes (TTL level) |
Trigger pulse width | yes |
Bus analysis | yes |
Glitch capture | yes |
Reference voltage range | -4 V to 4 V (±50 mV) |
Max. input voltage | ±30 V |
Input impedance | 100 KΩ ~ 10 pF |
PC interface | USB 2.0 |
Power input | USB |
Dimensions | 15 × 8 × 3 cm |
Weight | 475 g |
Leaptronix PLA-2532 Logic Analyzer Package
- Logic analyzer Leaptronix PLA-2532
- Signal capture cable
- USB cable
- CD with software, driver and manual
- Service warranty card
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
