Mini Clamp Meter UNI-T UT210D
id: 886870
Mini Clamp Meter UNI-T UT210D
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 45.57
Overview
0.8 kg Warranty: 24 months
AC/DC voltage, AC/DC current, resistance, frequency, capacitance, temperature. Diode, continuity tests. NCV measurements. Read more
USD 45.57
Buy wholesale and save
Description

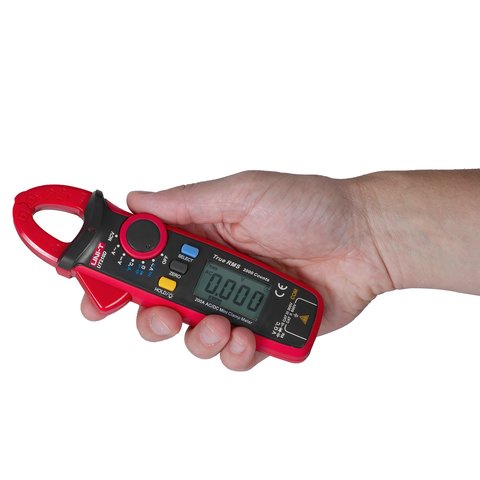

UNI-T UT210D Mini Clamp Meter designed for operation in limited space environments. Perfect for mechanical and electrical equipment maintenance, home appliance installation and electrician duties.
Features
- NCV measurements
- ZERO mode
- Auto range
- 2~3 times/s sampling rate
- True RMS
- Continuity buzzer
- Data hold function
- Auto power off function
- Low battery indication
- LCD backlight
- Ergonomic and lightweight
Technical Specifications
| Function | Range | Accuracy |
|---|---|---|
| AC current | 200 A | ±(2%+10) |
| DC current | 200 A | ±(2%+3) |
| AC voltage | 600 V | ±(1%+3) |
| DC voltage | 600 V | ±(0.7%+3) |
| Resistance | 20 MΩ | ±(1%+2) |
| Frequency | 60 kHz | ±(0.1%+4) |
| Capacitance | 20 mF | ±(4%+5) |
| Temperature | -40~1000℃ | ±(1%+3) |
| -40~1832℉ | ±(1.5%+5) | |
| Diode test | Around 3.0V | |
| General Characteristics | ||
| Jaw opening | 17 mm | |
| Power | 1.5 V battery (R03) x 2 | |
| Display | LCD, 39.3 × 26.5 mm | |
| Size | 175 × 60 × 33.5 mm | |
| Weight | 170 g | |
Video

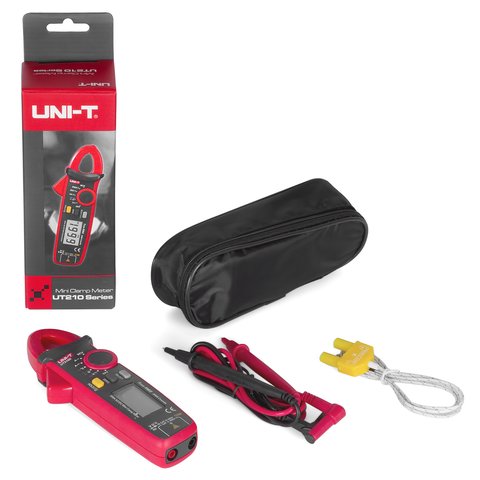

Package Contents
- UNI-T UT210D Mini Clamp Meter — 1 pc.
- Test leads — 1 set
- Point contact temperature probe — 1 pc.
- Carrying case — 1 pc.
- User manual — 1 pc.
Note! Batteries are not included in the package.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
