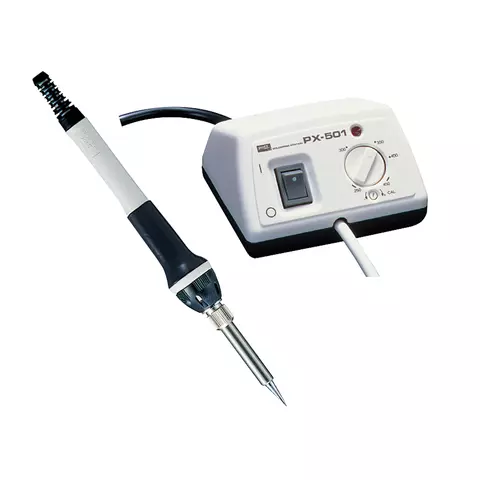

Mini-Soldering Station Goot PX-501
id: 10586
Mini-Soldering Station Goot PX-501
Overview
Description
Specifications
Delivery
Payment
Warranty
Discontinued
Find substitute
Overview
Made in Japan
0.65 kg 220 V Warranty: 12 months
High performance model that offers accurate temperature control and easy operation. Read more
You may also like
Add to wishlist
ID: 813234
Mini-Soldering Station GOOT PX-501AS
USD 91.53
Add to wishlist
Add to cart
Reaches the preset temperature extremely fast due to the Quick Start circuit. Newly designed ergonomic grip cover. Temperature setting range: 250—450 °C
Made in Japan
Availability in stock:
HK
ID: 813234 1.1 kg 220
Add to wishlist
ID: 10567
Temperature Controlled Soldering Iron Goot PX-201
USD 43.00
Add to wishlist
Add to cart
Compact and lightweight soldering iron with high output ceramic heater (70 W max.). Temperature setting range from 250°C to 450°C.
Made in Japan
Availability in stock:
HK
ID: 10567 0.5 kg 220
Description
GOOT PX-501 Mini-Soldering Station:
high performance model that offers accurate temperature control and easy operation.
Made in Japan
Main Fearures :
- Reaches the preset temperature extremely fast due to the Quick Start circuit.
- Newly designed ergonomic grip cover.
- Optional: Replacement Tip GOOT PX-60RT-SB
- Temperature setting range : 250—450°C
| Voltage | 110-130, 220-240 V AC 50/60 Hz | |||
| Power consumption | 80-85 W | |||
| Soldering unit voltage | 110, 220-240 V AC / 80 W | |||
| Temp. setting range | 250—450°C | |||
| Temp. control system | Sensor feedback ( ON-OFF control) | |||
| Insulation resistance (500 V DC) | Over 100 MΩ | |||
| Dimensions | Soldering unit | 195 mm (w/o cord bushing) | ||
| Control unit | 85(L)× 100(W)× 57(H) mm | |||
| Weight | Soldering unit | 41g (w/o cord) | ||
| Contol unit | 266g (w/o cord) | |||
| Ripple temp. without load | ± 3° C | |||
| Leak voltage | Less than 0.1 mV | |||
| Ground resistance | Less than 0.1 Ω | |||
| Control unit to soldering unit cord Length | 1.2 m | |||
| Power cord length | 1.5 m (3 core cable) ground plug | |||
Goot PX-501 – mini-soldering station: high performance model that offers accurate temperature control and easy operation. Made in Japan
Features
- Reaches the preset temperature extremely fast due to the Quick Start circuit.
- Newly designed ergonomic grip cover.
- Optional: Replacement Tip GOOT PX-60RT-SB.
- Temperature setting range : 250—450°C.
Technical specifications
| Voltage | 110-130, 220-240V AC 50/60Hz | |
| Power consumption | 80-85W | |
| Soldering unit voltage | 110, 220-240V AC / 80W | |
| Temp. setting range | 250—450°C | |
| Dimensions | Soldering unit | 195 mm (w/o cord bushing) |
| Control unit | 85(L)× 100(W)× 57(H) mm | |
| Weight | Soldering unit | 41g (w/o cord) |
| Control unit | 266 g (w/o cord) | |
| Ripple temperature without load | ±3 °C | |
| Leak voltage | Less than 0.1 mV | |
| Ground resistance | Less than 0.1 Ω | |
| Control unit to soldering unit cord Length | 1.2 m | |
| Power cord length | 1.5 m (3 core cable) ground plug | |
| Insulation resistance (500 V DC) | Over 100 MΩ | |
| Temperature control system | Sensor feedback ( ON-OFF control) | |
GOOT PX-501 Compatibility
- Soldering Iron Tip Goot PX-60RT-1C
- Soldering Iron Tip Goot PX-60RT-1CR
- Soldering Iron Tip Goot PX-60RT-1.5C
- Soldering Iron Tip Goot PX-60RT-1.6D
- Soldering Iron Tip Goot PX-60RT-2C
- Soldering Iron Tip Goot PX-60RT-2CR
- Soldering Iron Tip Goot PX-60RT-2.4D
- Soldering Iron Tip Goot PX-60RT-3C
- Soldering Iron Tip Goot PX-60RT-3CR
- Soldering Iron Tip Goot PX-60RT-3.2D
- Soldering Iron Tip Goot PX-60RT-4C
- Soldering Iron Tip Goot PX-60RT-4CR
- Soldering Iron Tip Goot PX-60RT-5K
- Soldering Iron Tip Goot PX-60RT-B
- Soldering Iron Tip Goot PX-60RT-LB
- Soldering Iron Tip Goot PX-60RT-SB
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
