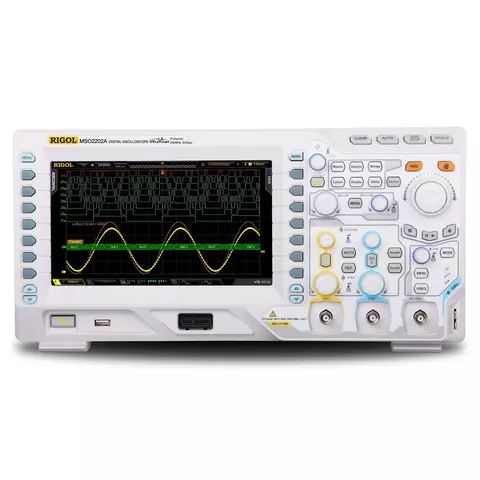

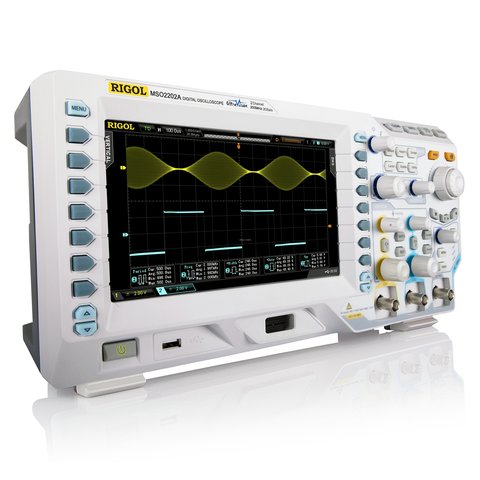

Mixed Signal Oscilloscope RIGOL MSO2202A
id: 859629
Mixed Signal Oscilloscope RIGOL MSO2202A
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 1049.00
Overview
8 kg 110, 220 V Warranty: 36 months
2-channel Mixed Signal Oscilloscope, 200 MHz bandwidth, 2 GSa/s maximum real-time sample rate, 14 MB memory depth, 50,000 wfms/s capture rate, 8-inch LCD display. Read more
USD 1049.00
Buy wholesale and save
You may also like
4 channel Super Phosphor Oscilloscop with a 200 MHz bandwidth, a sample rate of 2 GSa/s, a maximum memory depth of 200 MB and a 10.1" display.
Availability in stock:
HK
ID: 893075 9 kg
Description
RIGOL MSO2202A is dual channel Mixed Signal Oscilloscope with 200 MHz bandwidth and 2 GSa/s maximum real-time sample rate.
Features
- Wider vertical range (500 uV/div ~ 10 V/div)
- Lower overshoot (<5%)
- 200 MHz bandwidth
- 16 bit digital inputs for mixed signal applications with 1 GSa/s sampling
- Max. sample rate - 2 GSa/s
- Standard memory depth up to 14 Mpts, optional memory depth up to 56 Mpts
- Innovative "UltraVision" technology
- 50 Ohm impedance included
- 16 Digital Channels for Mixed Signal Analysis
Technical Specifications
| Analog Channels | 2 |
| Digital Channels | 16 |
| Bandwidth | 200 MHz |
| Max. Waveform Capture rate | 50,000 wfms/s |
| Vertical Resolution | Analog channel: 8 bits; Digital channel: 1 bit |
| Sample Rate | Analog Channels: 2 GSa/s (single channel); 1 GSa/s (dual channels); Digital Channels: 1 GSa/s (8 CH), 500 MSa/s (16 CH) |
| Max Memory Depth | 14 Mpts (standard), 56 Mpts (option) |
| Display | 8 inch LCD display |
| Standard Interface | USB Host & Device, RS-232, P/F Out |
| Output Voltage | ~ 3 V, peak-peak |
| Power Supply | 100 V to 240 V, 45 Hz to 440 Hz |
| Size | 361.6 mm × 179.6 mm × 130.8 mm |
| Weight | 3.9 kg ± 0.5 kg |
Additional Information
Download RIGOL MSO2202A Data Sheet.
Download RIGOL MSO2202A User Guide.
Video
Package Contents
- RIGOL MSO2202A Mixed Signal Oscilloscope — 1 pc.
- Passive Probes (350 MHz) — 2 pcs.
- LA Probe — 1 set.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
