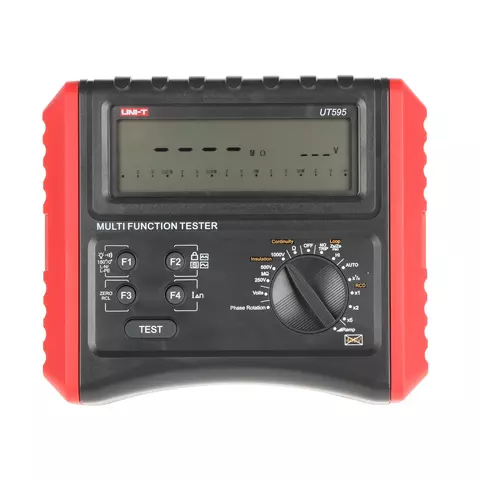

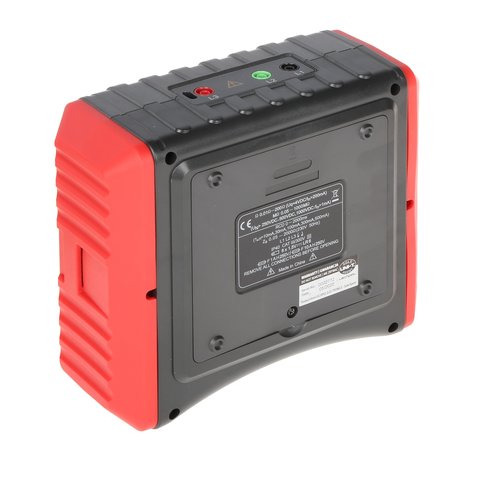

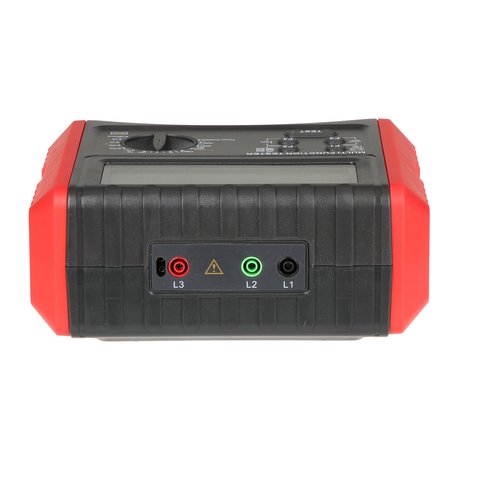

Multifunction Installation Tester UNI-T UT595
id: 903508
4 kg Warranty: 24 months
Insulation resistance tester measuring insulation resistance up to 1000 MΩ in the ranges of 250 V, 500 V, and 1000 V Read more
Inform of price reduction
UNI-T UT595 is a multifunction electrical installation tester designed to test RCD, loop/line impedance, frequencies within the range between 20 Hz and 100 Hz, earth resistance continuity from 0 to 200 mA, insulation resistance in the ranges of 250 V, 500 V, and 1000 V DC, and AC/DC voltage from 0 to 440 V. UNI-T UT595 is particularly useful for electrical installation works, home inspection and repairs, and in construction industry.
Features
- Auto ranging
- 9999-count LCD white backlight display with analogue bar graph
- Loop impedance/Prospective Fault Current (PFC)/Prospective Short Current (PSC) test
- Lock test
- RCD trip time test and the data storage with a single key
- RCD trip trigger current test
- AC/DC voltage auto check and test
- Connection check with status real-time display
- Auto power-off and sleep mode
- Test data logging
- Overload indication
- Low battery indication.
Technical Specifications
Measurements
Output voltage | 250V/500V/1000V | ±10% | |
Insulation resistance | 250 V | 0.05 MΩ ~ 250 MΩ | ±5%+5 |
500 V | 0.05 MΩ ~ 500 MΩ | ||
1000 V | 0.05 MΩ ~ 1000 MΩ | ||
Short-circuit current | < 2 mA | ||
Low-resistance continuity test | Range | 0.00 Ω ~ 199 Ω | ±2%+5 |
Test current | 0.00 ~ 2 Ω: >200 mA | √ | |
Line impedance | Range | 0.01 Ω ~ 2000 Ω | ±5%+5 |
Operating voltage (Frequency) | 230 V (45 Hz ~ 65 Hz) | √ | |
Test current | 20 A | ||
PFC test | 0 kA ~ 26 kA | ||
Loop impedance | Range | 0.01 Ω ~ 2000 Ω | ±5%+5 |
Operating voltage (Frequency) | 195 V ~ 253 V (45 Hz ~ 65 Hz) | √ | |
Test current | 20 A | ||
PFC test | 0 kA ~ 26 kA | ||
Non-trip loop impedance | Range | 1.00 Ω ~ 2000 Ω | ±5%+5 |
Operating voltage (Frequency) | 195 V ~ 253 V (45 Hz ~ 65 Hz) | √ | |
Test current | 15 mA | ||
PFC test | 0 kA ~ 26 kA | ||
RCD test | Operating voltage (Frequency) | 195 V ~ 253 V (45 Hz ~ 65 Hz) | √ |
Test current | 10 mA / 30 mA / 100 mA / 300 mA / 500 mA | ±10% | |
Trip time | 0 ms ~ 2000 ms | ±5%+5 | |
Phase sequence test | Operating voltage (Frequency) | 100 V ~ 440 V (45 Hz ~ 65 Hz) | √ |
Display | Phase sequence: L1 → L2 → L3, forward rotation; L1 → L3 → L2 reverse rotation | ||
Ramp RCD test | Test current | 10 mA / 30 mA / 100 mA / 300 mA / 500 mA | √ |
AC voltage | Range | 0 V ~ 440 V | √ |
Frequency response | 45 Hz ~ 60 Hz | ||
Resolution | 1 V |
General
Display count | 9999 | ||
Display | LCD with backlight, 125 × 37 mm | ||

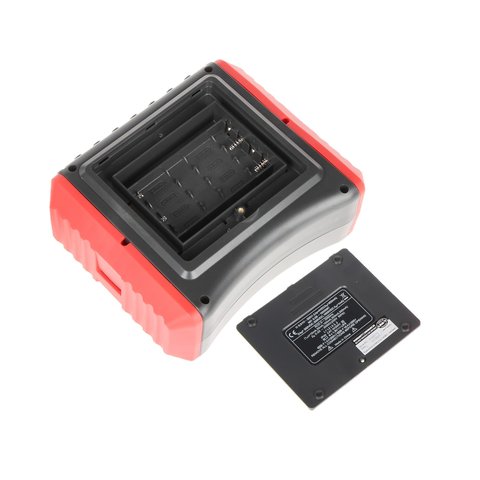

Power | 1.5 V alkaline battery × 8 pcs | ||
Dimensions | 210 × 175 × 90 mm | ||
Product weight | 1.0 kg |
User Manual
Download User Manual for UNI-T UT595.

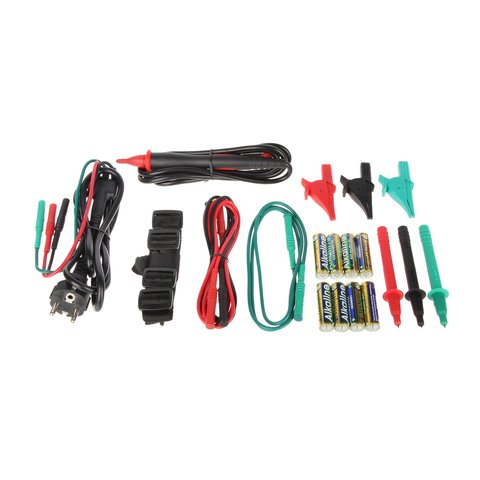

Package Contents
- Insulation resistance tester UNI-T UT595 – 1 pc.
- Test leads – 1 pc.
- Batteries – 8 pcs.

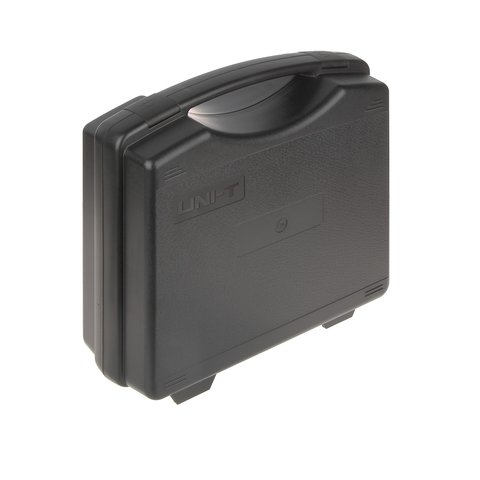

- Carrying bag – 1 pc.
- User manual – 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
