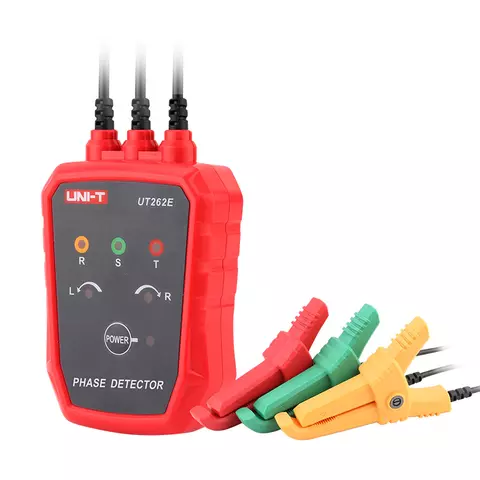

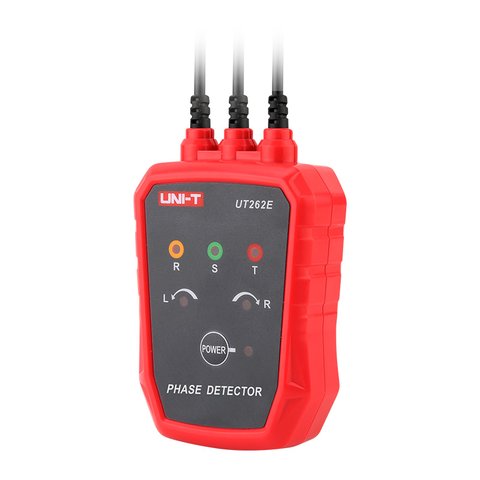

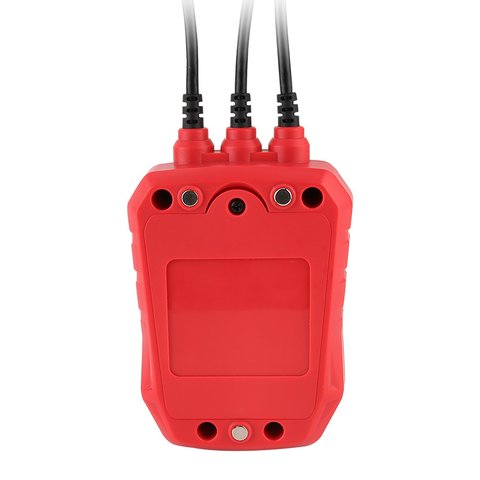

Non-Contact Phase Detector UNI-T UT262E
id: 910443
Non-Contact Phase Detector UNI-T UT262E
Overview
Description
Delivery
Payment
Warranty
Price coming soon
Contact
sales team
sales team
Overview
0.5 kg Warranty: 24 months
The clamp-type non-contact phase detector is designed for phase detection, live wire examination, power inspection, phase loss judgment, finding breakpoints, and positioning breakpoints. Read more
Inform of price reduction
Description
UNI-T UT262E is a clamp-type non-contact phase detector. It avoids electric sparks caused by contact with bare wires, thereby reducing the risk of electrical shock for electricians and other professional personnel. The UT262E can also be used for live wire detection, simple electrical inspection, phase identification, missing-phase judgment, wire breaker searching.
It is an excellent tool for phase sequence detection, motor installation, and wire maintenance. It enhances the safety of field testing, ensures the well-being of operators, and improves productivity.
Features
- Phase-detection
- Phase missing detection
- Phase sequence detection
- Non-contact detection
- Three-phase AC voltage: 70-1000V AC
- LED & Buzzer indication
- Automatic power off
Technical Specifications
| Function/Application | Phase detection, live wire examination, power inspection, phase loss judgment, breakpoints finding, breakpoints positioning | |
| Measurement method | Non-contact | |
| Phase wire position | Put the wires at the position between “▲” and “▼” marked on the clamp | |
| Voltage range | Three-phase voltage, 70-1000V AC (45Hz ～ 66Hz) | |
| Operating frequency | 50 Hz / 60 Hz (±10%) | 50 Hz / 60 Hz, automatically identify within the range of frequency error of standard power grid, the frequency range of other variable-frequency power supply is not examined |
| Test method | Non-contact clamping | Diameter of wires can be clamped: ø2 mm～ø40 mm Double-insulated LDPE clamp (0.5 mm²*1C+B), OD: 3.5 mm, extension wire length: 0.6 m |
| Power supply | 1.5V AA × 2 alkaline batteries | Continuous working time: more than 20 hours |
| Power consumption | Power-off current is less than 10 uA@3 V | Maximum average working current: 70 mA@3 V |
| Low battery indication | <2.4 V | The indicator light flashes slowly to indicate low battery |
| <2 V | The buzzer beeps twice to indicate power off | |
| Auto power off | After the detector is turned on for about 5 minutes, it will power off automatically and the buzzer will beep twice | |
| Operating temperature | 0～50°C (32～122°F) | |
| Operating humidity | >85% (Non condensing) | |
| Storage temperature | -20～60°C (4～140°F) | |
| Altitude | < 2000 m | |
| Button life | 10000 cycles | |
| Insulation intensity | 3.7kVrms | |
| Buzzing decibel | 65～70 dB | |
| IP rating | IP52 | |
| Safety certification | CE, UKCA | EN61010-1: 2001, EN61010-031: 2002 |
| Safety rating | Pollution Class 2, CAT Ⅳ (600V), CAT III(1000V), 8000V transient overvoltage (only for the clamp) | |
| Product dimension | 88 mm × 30 mm × 66 mm | |
| Product weight | 237.7 g (with batteries) / 191.5 g (without batteries) | |
Video
User Manual
Download UNI-T UT262E user manual.
Package Contents
- Non-Contact Phase Detector UNI-T UT262E — 1 pc.
- User Manual — 1 pc.
- Carrying Bag — 1 pc.
- AA Alkaline Battery — 2 pcs.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
