Optical Fiber Fusion Splicer Signalfire AI-7C

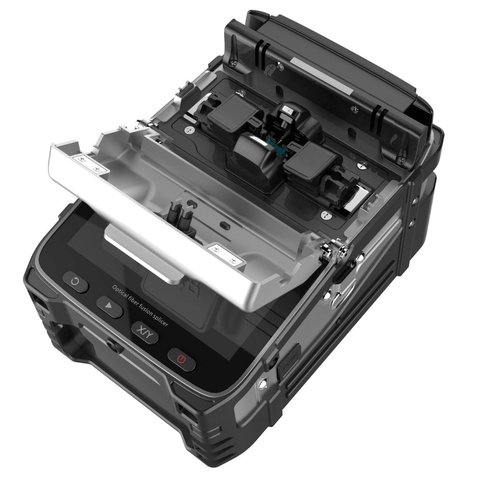

Signalfire AI-7C is a fusion splicer utilized for splicing fiber optic cables in the construction of medium and short-distance highways, as well as the installation of FTTH networks.
This splicing device boasts exceptionally rapid splicing and heating times, at 8 and 18 seconds respectively, employing advanced core alignment technology with six motors and autofocus. It fully complies with all recognized standards for fiber optic cable splicing.
The Signalfire AI-7C is equipped with ceramic holders designed to accommodate single/multi-mode, multi-core cable/bare fiber, tail fiber, jumper fiber, drop cables. Ceramics are known for their high hardness and durability, maintaining their shape even at high temperatures. The V-groove ensures stable fiber retention throughout the splicing process.
Moreover, the device comes with a flashlight, allowing work to continue at night, drawing power from the device and adjustable to any convenient direction. Additionally, the Signalfire AI-7C adjusts screen brightness for optimal use in bright sunlight. It even provides the capability to charge your smartphone using a USB cable, ensuring connectivity even when far from the nearest outlet.
For convenience, the Signalfire AI-7C splicer is packaged with a rugged carrying case containing all necessary accessories. The set also includes a stool, greatly facilitating the work process. In the manufacturing process of the key components of the Signalfire AI-7C device, high-quality materials from reputable foreign companies were utilized, including Siemens and Roth ROUST (Germany), as well as Sanyo (Japan).
Features
- The battery capacity is sufficient for splicing and heating 240 fibers.
- The 5-inch color screen boasts a high resolution of 800 × 480 pixels.
- The 300x magnification for focusing greatly enhances fiber viewing.
- With its industrial 4-core processor, this device is among the fastest on the market.
- Optical fibers converge along the core with the benefit of autofocus.
- The splicing time is just 8 seconds.
- The heating process takes 18 seconds.
- It operates 50% more efficiently compared to conventional fusion splicers.
- Features a Li-ion battery with a capacity of 7800 mAh.
- Supports fibers with a diameter ranging from 80 to 100 μm.
- Software updates can be done through a mobile application with device synchronization via Bluetooth.
- You can control the device using an Android or iOS smartphone with the manufacturer's pre-installed application.
- Unlimited record storage is available in cloud storage.
Technical Specifications
| Fiber Alignment | core/cladding alignment; manual alignment |
| Typical Splicing Time | 8 s |
| Typical Heating Time | 18 s |
| Heating mode | automatic (preliminary) |
| Focus mode | six motors, autofocus |
| Applicable Fibers | SM (G.652&G.657), MM (G.651), DS (G.657), NZDS (G.655) |
| Splice Loss | 0.025 dB (SM), 0.01 dB (MM), 0.04 dB (DS/NZDS) |
| Control Technology | real-time Fusion ARC monitoring and calibration |
| Return Loss | >60 dB |
| Fiber Diameter | cladding diameter 80-150 μm; coating diameter 100-1000 μm |
| Fiber Cleave Length | 8 ~ 16 mm (coverage up to 250 μm), 16 mm (coverage 250-1000 μm) |
| Boot Time | 1 second |
| Languages | Chinese, English, French, Russian, Italian, Portuguese, Polish, Spanish, Thai, Arabic |
| Tensile Testing | standard 2N |
| Fiber Holders | 3 in 1 ceramic fiber holders (suitable for single/multi-mode, multi-core cable/bare fiber, tail fiber, jumper fiber, drop cables) |
| Magnification | 300x and 150x for X or Y axis viewing |
| Display | 5" TFT color display |
| Splicing Mode | conventional/high precision splicing |
| Splicing Methods | automatic, semi-automatic |
| Storing Splicing Results | unlimited, machine storage 1000 groups, the excess part can be stored in the server, can export data. |
| Built-in Battery | 7800mAh large capacity lithium battery, charging time ≤ 3.5 hours, about 240 splicing and heating cycles |
| Power Supply | AC input 100-240 V 50/60 Hz, DC output 13.5 V/4.8 V |
| Operating Conditions | temperature -15 ~ +50 ℃ humidity <95% working altitude: 0 ~ 5000 m max. wind speed: ≤ 15 m/s |
| Heat Shrinkable Tube | 60 mm, 50 mm, 40 mm, 25 mm |
| Product Protection | waterproof, dustproof and fall proof |
| Splicer Dimensions | 135 mm × 198 mm × 122 mm |
| Splicer Weight | 2.08 kg (with battery) 1.60 kg (without battery) |
| Case Dimensions | 270 mm × 293 mm × 237 mm |
| Total Case Weight | 7.1 kg (with splicer and accessories) |
Package Contents
- Optical Fiber Fusion Splicer Signalfire AI-7C — 1 pc.
- FTTH Stripping Tool — 1 pc.
- Fusion Splicer Carrying Strap — 1 pc.
- Toolbox Carrying Strap — 1 pc.
- Fiber Optic Stripper — 1 pc.
- Alcohol Bottle — 1 pc.
- Spare Electrodes — 1 set
- Brush — 1 pc.
- Fiber Cleaver — 1 pc.
- Power Cord — 1 pc.
- Stool — 1 pc.
- Carrying Case — 1 pc.
