Optical Fiber Loss Tester Grandway FHM2B02
id: 873306
2 kg Warranty: 12 months
Multimeter for optical fiber network installation and maintenance. It combines a power meter and a 3-wavelength laser source. Read more
Buy wholesale and save
Inform of price reduction

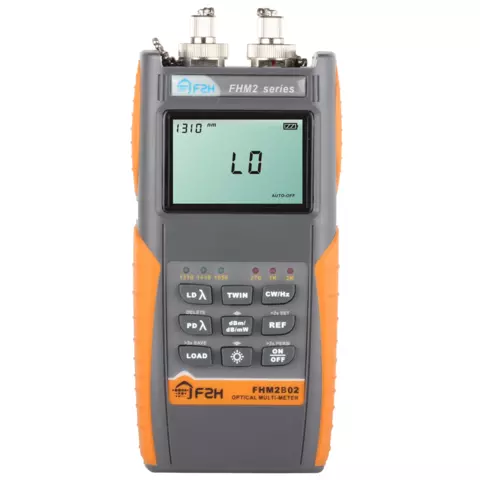

Grandway FHM2B02 – multimeter for optical fiber network installation and maintenance. It combines a power meter and a 3-wavelength laser source. With the large capacity of data storage, it's very convenient for field testing and transfering the test results to PC through USB interface.
Features
- Auto wavelength recognition.
- Data storage up to 999 items.
- USB interface and PC associated software available.
- Reference values.
- Replacement connectors.
- Auto power off.
Technical Specifications
Model | FHM2A01 | FHM2A02 | FHM2B01 | FHM2B02 |
---|---|---|---|---|
Power Meter | ||||
Calibration wavelength | 850/1300/1310/1490/1550/1625 nm | |||
Measuring range | from -70 to +10 dBm | from -50 to +26 dBm | ||
Measuring accuracy | ± 0,2% ±1 mW | ± 5% ±1 nW | ± 0,2% ±10 mW | ± 5% ±1 nW |
Reference value | Yes | |||
Tone detection | 270 Hz / 1 kHz / 2 kHz | |||
Laser Source | ||||
Output wavelength | 1310/1550 nm | 1310/1490/1550 nm | 1310/1550 nm | 1310/1490/1550 nm |
Modulation frequencies | 270 Hz, 1 kHz, 2 kHz | |||
Output Power | -5 dBm ±0,5 dB | |||
Stability (8 h) | ±0,1 dB @ 1310/1550 nm; ±0,2 dB @ 1490 nm | |||
Stability (15 min) | ±0,05 dB @ 1310/1550 nm; ±0,1 dB @ 1490 nm | |||
Wavelength recognizing code | Yes | |||
General Specifications | ||||
Memory | Yes | |||
Power Supply | NiHM 1.2 V batteries (2 pcs), 2000 mAh; AC/DC Adaptor | |||
PC interface | USB | |||
Battery Life | > 100 hours (laser off) | |||
Operating Temperature | -10°C ~ +50°C | |||
Dimensions (l × w × h) | 168 × 76 × 43 mm | |||
Weight | 310 g |
Package Contents
- Grandway FHM2B02 Optical Fiber Loss Tester — 1 pc.

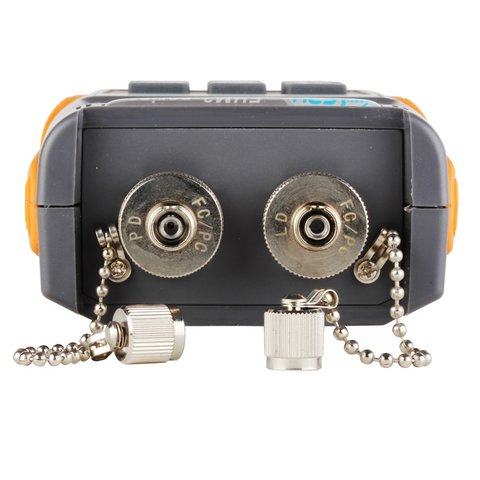

- FC/PC, SC/PC replacement connectors — 1 set.
- AA batteries — 2 pcs.
- AC/DC power adaptor — 1 pc.
- USB cable — 1 pc.
- PC software — 1 pc.
- Manual — 1 pc.
- Bag — 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
