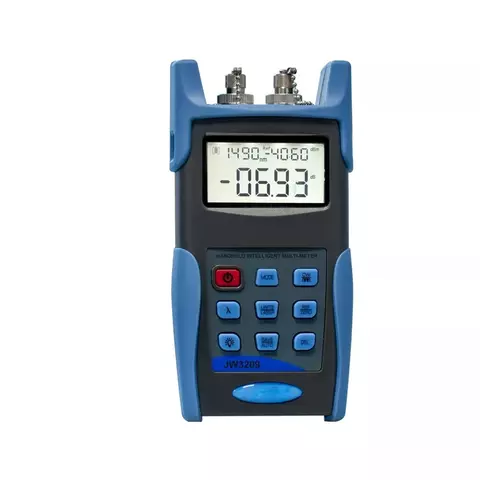

Optical Power Meter JOINWIT JW3209C
id: 901199
Optical Power Meter JOINWIT JW3209C
Overview
Description
Delivery
Payment
Warranty
USD 195.00
Add to cart
Overview
1.2 kg
Availability in stock:
HK
Warranty: 6 months The device is used to measures 6 wavelengths (850 nm, 1300 nm, 1310 nm, 1490 nm, 1550 nm, 1625 nm) with an accuracy of ±0.25 dBm. Dynamic range: -50 dBm ~ +26 dBm Read more
Buy wholesale and save
Inform of price reduction
Suggest your price
Your gift (list of the available gifts depends on the amount of your order)
Description
JOINWIT JW3209C is a portable high-precision device that combines the functions of an optical power meter and an optical light source. The device features six calibration wavelengths (850 nm, 1300 nm, 1310 nm, 1490 nm, 1550 nm, 1625 nm) with an accuracy of < ±0.25 dBm. The testing range is from -50 dBm to +26 dBm.
The JOINWIT JW3209C meter has data storage and auto power off functions. The device is widely used in the fiber-optic line project construction, testing and maintenance, such as digital data network, telecommunication network and cable television.
Features
- Easy mode switching function.
- Detection of the frequency light.
- High stability of the output power.
- Data storage is up to 1000.
- USB communication port for saved testing records download.
- Alkaline battery and mini USB adapter for power supply.
Application
- Telecom maintenance.
- CATV maintenance.
- DDN maintenance.
- Fiber optic lab testing.
- Other fiber optic measurements.
Technical Specifications
| Optical Power Meter Specifications | |
|---|---|
| Detector Type | InGaAs |
| Received Signal Wavelength Range | 800 - 1700 nm |
| Calibration Wavelength | 850 nm, 1300 nm, 1310 nm, 1490 nm, 1550 nm, 1625 nm |
| Testing Range | - 50 ~ + 26 dBm |
| Resolution | 0.01 dBm |
| Uncertainty | < ± 0.25 dBm |
| Frequency ID Range | < 10000 Hz |
| Optical Light Source Module Specifications | |
| Working Wavelength | 1310 / 1550 nm |
| Typical Output Power | - 5 dBm |
| Stability (30 min, 20°C) | ≤ 0.1 dB |
| Modulation Frequency | CW, 270 Hz,1000 Hz, 2000 Hz |
| Data Storage | up to 1000 test records |
| General Specifications | |
| Display | LCD |
| Auto-off Time | 10 minutes |
| Communication Interface | Mini USB |
| Working Temperature | - 10°C ~ + 60°C |
| Storage Temperature | - 25°C ~ + 70°C |
| HR | 20 - 95% |
| Battery Continuous Operation Time | > 50 hours (Optical Light Source Module is ON) > 200 hours (Optical Light Source Module is OFF) |
| Power Supply | 3 × AA 1.5V battery / Mini USB 5V adapter |
| Dimensions | 175 mm × 90 mm × 44.5 mm |
| Weight | 265 g |
User Manual
Download JOINWIT JW3209C user manual.
Package Contents
- Optical Power Meter JOINWIT JW3209C — 1 pc.
- Soft Carrying Case — 1 pc.
- User Manual — 1 pc.
- CD with Software — 1 pc.
- USB Adapter — 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
