Optical Time Domain Reflectometer AFL FS200-100-BAS-P0-W0 - FS200 OTDR Basic Kit
id: 912197
1 kg
Availability in stock:
HK
All-in-one solution for detecting, identifying, locating, and resolving single-mode optical network issues. Wavelength: 1310/1550 nm, dynamic range: 32/30 dB. Read more
Buy wholesale and save
Inform of price reduction
Suggest your price
Note! This item is shipped within 10 working days.
Your gift (list of the available gifts depends on the amount of your order)

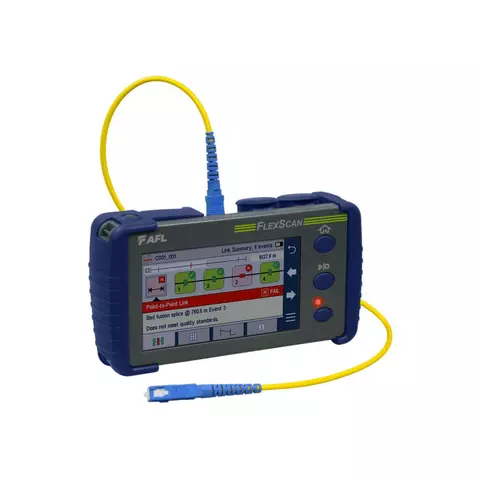

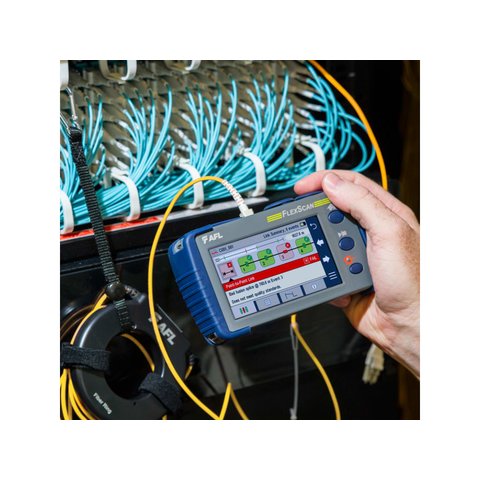

AFL FS200-100-BAS-P0-W0 - FS200 OTDR Basic Kit is an all-in-one solution for detecting, identifying, locating, and resolving single-mode optical network issues. It is designed for both novice and expert technicians working in a range of environments, from FTTH PON to point-to-point networks. It applies industry-standard or user-set pass/fail criteria and displays results using LinkMap color-coded icons that immediately show the health of the network. The FlexScan FS200 automates test setup, shortens test time, and simplifies result interpretation, improving efficiency and reducing costs.
Features
- Easy-to-understand LinkMap® results with pass/fail indications.
- Single, dual, or triple wavelength single-mode.
- Single port for in- and out-of-service OTDR tests.
- Integrated VFL (visual fault locator).
- Integrated MPO switch control via USB.
- Rugged, lightweight, and hand-held for field use.
Application
- PON, or point-to-point network verification or troubleshooting
- OTDR testing plus insertion loss and power measurements
- Locate faults exceeding industry or user pass/fail thresholds
- Visually pinpoint the location of macro-bends or breaks.
Technical Specifications
Emitter Type | Laser |
Safety Class | Class I |
Fiber Type | Single-mode |
Wavelengths (nm) | 1310/1550 |
Center λ Tolerance | ±20 nm (CW mode) |
Dynamic Range (dB) | 32/30 |
Event Dead Zone (m) | 0.8 |
Atten. Dead Zone (m) | 3.6 |
Pulse Widths | 3, 5, 10, 20, 30, 50, 100, 200, 300, 500 ns; 1, 2, 3, 10 µs; 20 µs |
Range Settings | 250 m to 240 km |
Data Points | Up to 300,000 (Expert mode .SOR file) |
Data Spacing | 5 cm to 16 m |
Group Index of Refraction | 1.3000 to 1.7000 |
Distance Uncertainty (m) | ±(1 + 0.003% x distance + data point spacing) |
Linearity (dB/dB) | ±0.05 |
Trace File Format | Telcordia SR-4731 Issue 2 compatible .SOR |
Trace File Storage Medium | 4 GB internal memory (>5000 traces typical); External USB memory stick |
Data Transfer to PC | USB cable or Bluetooth® or WiFi (option) |
Standard OTDR Modes | SmartAuto, Expert, Real Time |
Display Modes | LinkMap Summary, LinkMap Events, Trace |
Real-time Refresh Rate | Up to 4 Hz |
Live Fiber Protection | No OTDR damage with input power ≤ +15 dBm for wavelength(s) in range 1260 to 1675 nm |
Live Fiber Detection | Reports live fiber with input signal ≥ -35 dBm for wavelength(s) in range 1260 to 1675 nm |
Live PON Filter Isolation | >50 dB for wavelength(s) in range 1260 to 1600 nm |
Live PON OTDR Test | 1650 nm using filtered detector |
VISUAL FAULT LOCATOR (VFL) | |
---|---|
Emitter Type | Visible red laser, 650 ±20 nm |
Safety Class | Class II |
Output Power (nominal) | 0.8 mW into single-mode fiber |
Modes | CW, 2 Hz flashing |
General Specifications | |
Dimensions | 86 mm × 160 mm × 43 mm |
Weight | 0.4 kg |
Working Temperature | -10 °C to +50 °C, 0 to 95 % RH (non-condensing) |
Storage Temperature | -40 °C to +70 °C, 0 to 95 % RH (non-condensing) |
Power | Rechargeable Li-Pol or AC adapter |
Battery Life | >12 hours, Telcordia test conditions |
Display | 4.3 in color touchscreen LCD, 480 × 272, backlit |
USB Ports | 1 host; 1 micro-USB function |
Video
User Manual
Download AFL FS200-100-BAS-P0-W0 - FS200 OTDR Basic Kit.
Package Contents
- Optical Time Domain Reflectometer AFL FS200-100-BAS-P0-W0 - FS200 OTDR Basic Kit — 1 pc.
- Wrist Strap — 1 pc.
- Soft Carry Case — 1 pc.
- Quick Reference Guide — 1 pc.
- TRM 2.0 Basic Test Results Manager Software — 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
All rights reserved. This material from gsmserver.com web site may not be published, rewritten or redistributed in whole or part without authorship indicated and backlinks provided.
