Optical Time Domain Reflectometer EXFO Maxtester MAX-720C-SM1
id: 897776
Made in Canada
3.8 kg
Availability in stock:
HK
Complex Device, Tailored Solutions: We're Here to Help!
This device is highly sophisticated. If needed, we're ready to assist you in finding the best model for your specific needs.
Wavelength: 1310/1550 nm. Dynamic range: 36/35 dB. Event dead zone: 0.7 m. Attenuation dead zone: 3 m. Read more
Buy wholesale and save
Inform of price reduction
Suggest your price
Note! This item is shipped within 10 working days.
Your gift (list of the available gifts depends on the amount of your order)

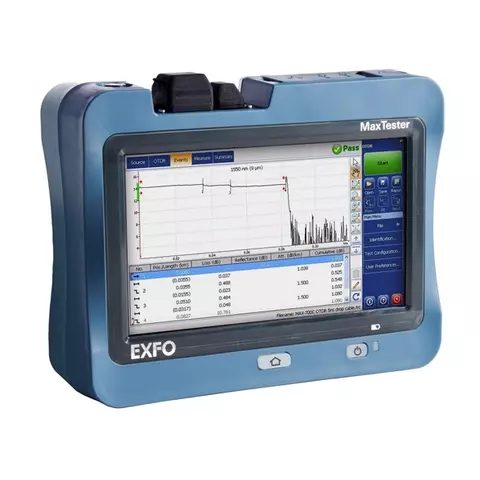

EXFO Maxtester MAX-720C-SM1 is a powerful lightweight handy OTDR with 7-inch outdoor-enhanced touchscreen display, tablet-inspired design, 12-hour battery operation, rugged design for outdoor operation.
EXFO Maxtester MAX-720C may be supplied with iOLM software: intelligent and dynamic application that turns complex OTDR trace analysis into a one-touch task
Features
- Handy, lightweight, powerful, tablet-inspired design.
- Wavelength: 1310/1550 nm.
- Test fiber type: SM (singlemode).
- 7-inch, outdoor-enhanced touchscreen.
- 12-hour autonomous operation.
- Dynamic range of up to 36/35 dB.
- Fully featured and integrated field test solution.
Technical Specifications
Wavelength | 1310 ± 20 nm, 1550 ± 20 nm | |
Dynamic range | 36/35 dB | |
Event dead zone | 0.7 m | |
Attenuation dead zone | 3 m | |
PON dead zone | 35 m | |
Distance range | 0.1-260 km | |
Pulse width | 3-20 000 ns | |
Launch conditions | EF-compliant | |
Linearity | ±0,03 dB | |
Loss threshold | 0.01 dB | |
Loss resolution | 0.001 dB | |
Sampling resolution | 0.04 to 10 m | |
Sampling points | up to 256 000 | |
Distance uncertainty | ±(0.75 m + 0.005 % × distance + sampling resolution) | |
Measurement time | user-defined (60 minutes max.) | |
Reflectance accuracy | ±2 dB | |
Typical real-time refresh | 4 Hz | |
Display | 7-in (178-mm) outdoor-enhanced touchscreen, 800 × 480 TFT | |
Interfaces | Two USB 2.0 ports RJ45 LAN 10/100 Mbit/s |
|
Storage | 6 GB internal memory (20 000 OTDR traces, typical) | |
Batteries | rechargeable lithium-polymer battery (12 hours of operation) | |
Power supply | power supply AC/DC adapter, input 100-240 VAC, 50-60 Hz | |
Operating temperature | –10 °C to 50 °C (14 °F to 122 °F) | |
Storage temperature | –40 °C to 70 °C (–40 °F to 158 °F) | |
Relative humidity | 0 % to 95 % non-condensing | |
Dimensions (H × W × D) | 166 mm × 200 mm × 68 mm | |
Weight (with battery) | 1.5 kg |
User Manual
Download EXFO MAX-720C-SM1 User Manual.
Spec Sheet
Download EXFO MAX-720C-SM1 Spec Sheet.
Package Contents
- Optical Time Domain Reflectometer EXFO Maxtester MAX-720C-SM1 — 1 pc.
- Hand Strap — 1 pc.
- Battery — 1 pc.
- 20 W Power Supply — 1 pc.
- Soft Carrying Case — 1 pc.
- Stylus — 1 pc.
- Calibration Certificate — 1 pc.
- CD — 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
