Overview
2 kg Warranty: 12 months
Dual-channel oscilloscope with a built-in signal generator. 100 MHz bandwidth, 10M record length, 1 GS/s sampling rate, and 14-bit vertical resolution. Read more
Inform of price reduction
Description

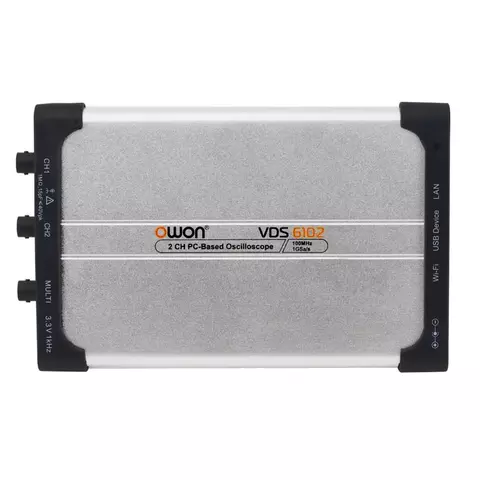

OWON VDS6102A is a dual channel PC based oscilloscope with built-in function signal generator. The device has 100 MHz bandwidth, a large memory capacity of 10M points, and 1 GS/s sampling rate.
OWON VDS6102A oscilloscope is compatible with Android, iOS, Windows 10, Windows 8, Windows 7, Windows NT, Windows XP, VISTA. It has standard interfaces USB, LAN, WiFi (optional).
Features
- Ultra-thin body (only 18 mm high).
- 100 MHz bandwidth, 1 GS/s real-time sampling rate.
- Built-in signal generator (5 MHz frequency).
- Vertical resolution: 14 bits.
- Record length 10M.
- Simultaneous display of FFT or X-Y mode results and waveform.
- Standard SCPI protocol supported.
- LabVIEW supported.
- USB Type-C powered, faster data transmission.
Technical Specifications
| Model | VDS6102 | VDS6102A |
|---|---|---|
| Bandwidth | 100 MHz | |
| Channel | 2 + 1 (Function Generator) | |
| Sample rate | 1 GSa/s | |
| Rise time | ≤3.5 ns | |
| Horizontal scale | 5 ns/div~100 s/div, step by 1~2~5 | |
| Sampling mode | sample, peak detect, average | |
| Record length | 10M | |
| Input coupling | DC, AC, ground | |
| Input impedance | 1 MΩ ± 2%, in parallel with 15 pF ± 5 pF | |
| Vertical sensitivity | 2 mV/div~5 V/div | |
| Vertical resolution | 8 bits | 14 bits |
| Max. input voltage | 40 V (DC + AC Peak) | |
| Probe attenuation factor | 1X, 10X, 100X, 1000X | |
| Channel isolation | 50 Hz: 100:1, 10 MHz: 40:1 | |
| Interpolation | Sin(x)/x | |
| Vertical range | ±2 V (2 mV/div – 50 mV/div)； ±20 V (100 mV/div – 500m V/div)； ±40 V (1 V/div – 5 V/div) |
|
| LF respond (AC, -3dB) | ≥5Hz (at input, AC coupling, -3dB) | |
| Trigger type | Edge, Video, Slope, Pulse | |
| Line/Field frequency (video) | supported standards: NTSC, PAL and SECAM broadcast systems | |
| Trigger mode | auto, normal, single | |
| Mode XY | bandwidth: full bandwidth, phase difference: ±3 degrees | |
| Automatic measurement | Vpp, Vmax, Vmin, Vtop, Vbase, Vamp, Vavg, Vrms, Overshoot, Preshoot, Freq, Period, Rise Time, Fall Time, Delay A→B, Delay A→B, +Width, -Width, +Duty, -Duty | |
| Interface | USB (Type-C), LAN; Wi-Fi (optional) | |
| Power Consumption | ≤8 W | |
| Dimensions | 190 × 120 × 18 mm | |
| Weight | 380 g | |
| Built-in Signal Generator | ||
| Standard waveforms | Sine (0.1 Hz - 5 MHz), Square（0.1 Hz-200 kHz), Ramp（1 Hz-10 kHz), Pulse（1 Hz-10 kHz） | |
| Frequency output | 5 MHz | |
| Sampling rate | 25 MSa/s | |
| Channel | 1 | |
| Vertical resolution | 8 bit | |
| Amplitude range | 10 mVpp - 5 Vpp | |
| DC offset range (AC+DC) | ±2.5 V | |
| Output impedance | 50 Ω (typical) | |
User Manual
Download OWON VDS6102A User Manual.
Package Contents
- PC Based Digital Oscilloscope OWON VDS6102A — 1 pc.
- Power Cord — 1 pc.
- Power Adapter — 1 pc.
- Type-C Cable — 1 pc.
- Q9 Cable — 1 pc.
- Probe — 2 pcs.
- CD with Software — 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
