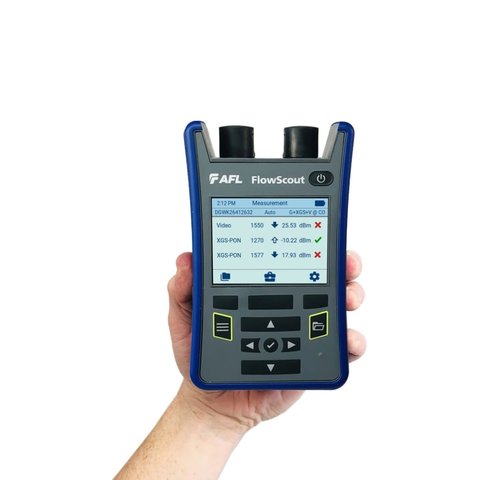

PON Optical Power Meter AFL TPPM-XG - FlowScout
when in stock
AFL TPPM-XG - FlowScout is a PON power meter that identifies, measures, and qualifies both downstream and upstream signal levels in FTTx PON networks. It is perfect for technicians responsible for activating and maintaining networks carrying a mix of GPON/EPON, video, and next-gen PON (XG/XGS-PON, 10GEPON) wavelengths. The FlowScout is suitable for both novice and expert technicians and requires no setup, with little, if any, training needed. Fast and easy reporting capabilities are provided by a built-in QR code generator to speed up results sharing with coworkers.

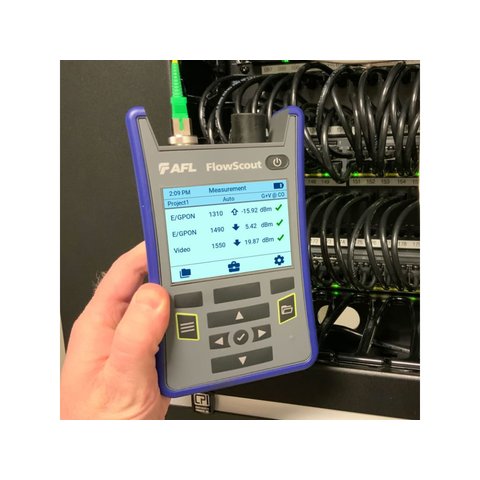

The FlowScout PON power meter is designed to meet the demands of the outside plant environment. It easily withstands the one-meter drop test and has splash-resistant controls that are easy to use, even with gloves on. A range of field-swappable output adapters enables access for cleaning optical ports and supports multiple connector styles. The efficient design provides a long test time from a rechargeable Li-Polymer battery and is equipped with an auto-off feature to save power.
Features
- Plug-and-play device: automatically performs measurements without requiring additional settings.
- Verify upstream & downstream signal levels at multiple locations.
- Detects GPON, XGS-PON, and Video signals all at once.
- Fast and easy reporting capabilities.
- QR code generation speeds up sharing results with coworkers.
- Rugged and water-resistant, with an IP54 rating.
- Field-swappable connector adapters.
- Large color touchscreen display, daylight viewable.
Technical Specifications
| Upstream | Wavelength | 1270 nm | 1310 nm | |
| Measurement Range | -28 to +13 dBm | -28 to +13 dBm | ||
| Downstream | Wavelength | 1490 nm | 1550 nm | 1577 nm |
| Measurement Range | -50 to +13 dBm | -35 to +26 dBm | -50 to +17 dBm | |
| Accuracy | ±0.50 dB @0 dBm | |||
| Resolution | 0.01 dB | |||
| Insertion Loss | 1.7 dB typical | |||
| Inline ORL | 55 dB typical | |||
| Measurement Units | dBm, μW | |||
| General Specifications | ||||
|---|---|---|---|---|
| Power | rechargeable Li-Polymer battery | |||
| Adapter Caps | SC APC standard, LC APC available | |||
| Battery Life | >8 hours | |||
| Recharge Time | ~4 hours | |||
| Operating Temperature | -10 °C to 50 °C, 95 % RH (non-condensing) | |||
| Storage Temperature | -20 °C to 60 °C, 95 % RH (non-condensing) | |||
| Dimensions (H × W × D) | 171 mm × 104 mm × 46 mm (6.75 × 4.1 × 1.8 in) | |||
| Weight | 0.59 kg (1.3 lb) | |||
Video
User Manual
Download AFL TPPM-XG - FlowScout user manual.
Package Contents
- PON Optical Power Meter AFL TPPM-XG - FlowScout — 1 pc.
- SC/APC to SC/APC Test Jumpers, 2m — 2 pcs.
- USB-A to USB-C Charge and Data Transfer Cable — 1 pc.
- SC One-click mini cleaner (500) — 1 pc.
- AC Adapter — 1 pc.
