Programmable DC Electronic Load SIGLENT SDL1020X
id: 894371
7 kg Warranty: 36 months
200 W DC programmable electronic load. Input voltage: 0~150 V. Input current: 0~30 A. Operating modes: CV, CC, CR, CP. Read more
Buy wholesale and save
Inform of price reduction

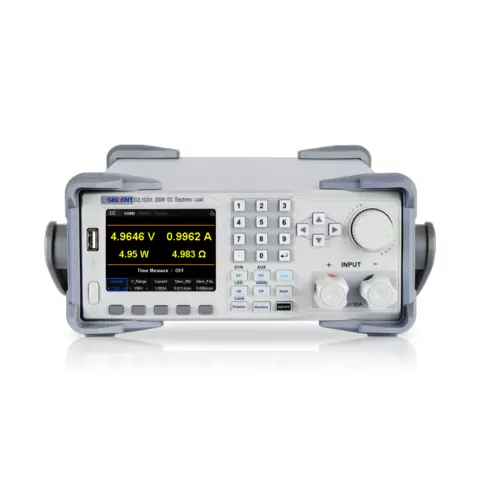

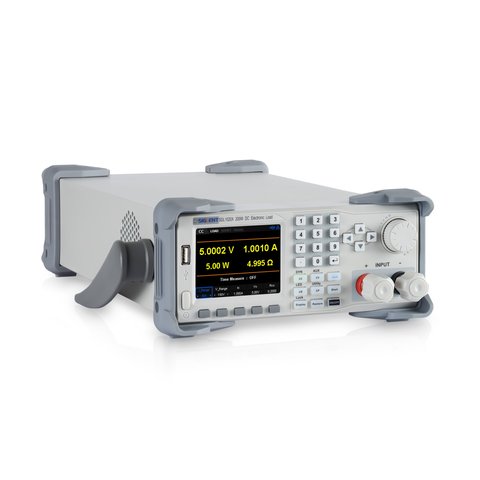

SIGLENT SDL1020X is a 200 W single-channel programmable DC electronic load, which has a 3.5 inch TFT-LCD display, a user-friendly interface and superb performance specifications.
Features
- DC 150 V/30 A, total power up to 200 W.
- 4 static modes / Dynamic mode: CC/CV/CR/CP.
- CC Dynamic mode: Continuous, pulsed, toggled.
- CC Dynamic mode: 25 kHz, CP Dynamic mode: 12.5 kHz, CV Dynamic mode: 0.5 Hz.
- Measuring speed of voltage and current: up to 500 kHz.
- Adjustable current rise time range: 0.001 A/us~2.5 A/us.
- Min. readback resolution: 0.1 mV, 0.1 mA.
- Short-circuit, Battery test, CR-LED mode, and factory test functions.
- 4-wire SENSE compensation mode function.
- List function supports editing as many as 100 steps.
- Program function supports 50 groups of steps.
- OCP, OVP, OPP, OTP and LRV protection.

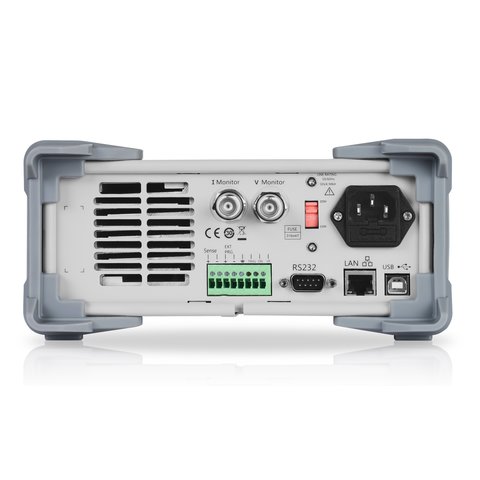

- External analog control.
- Voltage, Current monitoring via 0-10 V.
- 3.5 inch TFT-LCD display, capable of displaying multiple parameters and states simultaneously.
- Built-in RS232/USB/LAN communication interface, USB-GPIB module (optional).
- Waveform trend chart and easy-to-use file storage and call functions.
- Includes PC software: Supports SCPI, LabView driver.
Technical Specifications
Input Rating (0~40 °C) |
Input voltage |
0~150 V | |
Input current | 0~5 A | 0~30 A | |
Input power | 200 V | ||
Minimum Operating Voltage |
0.15 V at 5 A | 0.9 V at 30 A | |
CV Mode | Range | 0~36 V | 0~150 V |
Resolution | 1 mV | ||
Accuracy | ± (0.05%+0.025%FS) 50 ppm / °C | ||
CC Mode | Range | 0~5 A | 0~30 A |
Resolution | 1 mA | ||
Accuracy | ± (0.05%+0.05%FS) 100 ppm / °C | ||
CR Mode | Range | 0,03 Ω ~ 10 Ω | |
Resolution | 1 mA / Vsense | ||
Accuracy | 0.01%+0.0008 s | ||
CP Mode | Range | 200 W | |
Resolution | 10 mW | ||
Accuracy | 0.1%+0.1% FS | ||
Measuring Range | |||
---|---|---|---|
Readback Voltage | Range | 0~36 V | 0~150 V |
Resolution | 0.1 mV | 1 mV | |
Accuracy | ± (0.025%+0.025% FS) 20 ppm / °C | ||
Readback Current | Range | 0~5 A | 0~30 A |
Resolution | 0,1 mA | ||
Accuracy | ± (0.05%+0.05% FS) 50 ppm / °C | ||
Readback Power | Range | 200 W | |
Resolution | 10 mW | ||
Accuracy | ± (0.1%+0.1% FS) | ||
Readback Resistance | Range | 0.03 Ω ~10 KΩ | |
Accuracy | 0.001 Ω | ||
Over Power Protection | 210 W | ||
Over Current protection | 5.1 A | 31 A | |
Overvoltage Load Protection | 41 V | 155 V | |
Over Temperature Protection | 85 °C | ||
Battery Measurement | Battery Input: 0,5~150 V |
||
Input Resistance | >200 kΩ | ||
Dimension | 256 × 115 × 410 mm (W × H × D) | ||
Weight | 5.8 kg |
User Manual
Download SIGLENT SDL1020X user manual.
Programming Guide
Download SIGLENT SDL1020X programming guide.
Data Sheet
Download SIGLENT SDL1020X data sheet.
Package Contents
- Programmable DC Electronic Load SIGLENT SDL1020X — 1 pc.
- Power Cord — 1 pc.
- USB Cable — 1 pc.
- User Manual — 1 pc.
- Calibration Certificate — 1 pc.
