Programmable DC Power Supply SIGLENT SPD1168X
id: 877048

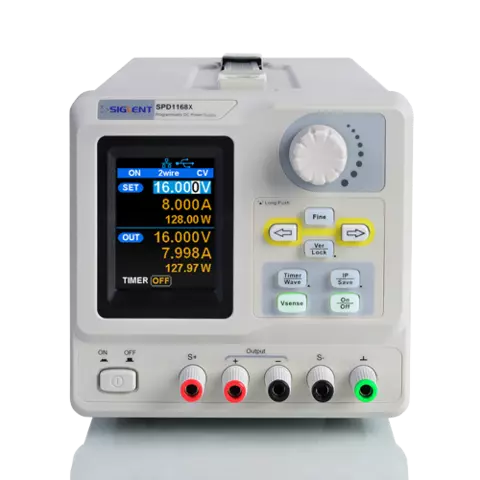

Programmable DC Power Supply SIGLENT SPD1168X
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
USD 219.19
Overview
Video
6 kg Warranty: 36 months
Constant current (0-8 A) and voltage (0-16 V) single-channel precision programmable power supply. Read more
USD 219.19
Buy wholesale and save
You may also like
Description
SIGLENT SPD1168X is a programmable linear DC power supply with total power up to 128 W. High functionality and excellent technical characteristics makes it ideal for educational institutions and research labs.
Features
- Timer function.
- Supports front panel timing output functions.
- Intelligent temperature-controlled fan reduces noise.
- Overload and overheating protection.
- Remote computer control capability.
- Includes Easypower PC software.
Technical Specifications
| Channels | 1 |
| Voltage and Current Range | Voltage: 0 - 16 V Current: 0 - 8 A |
| Output Power |
128 W |
| Minimum Voltage and Current Resolution | 1 mV, 1 mA |
| Setting Accuracy | Voltage: ±(0,03%+10 mV) Current: ±(0,3%+10 mA) |
| Readback Accuracy | Voltage: ±(0,03%+10 mV) Current: ±(0,3%+10 mA) |
| Constant Voltage Mode | load regulation: < 0,01% + 2 mV line regulation: < 0,01% + 2 mV ripple and noise: ≤ 350 uVrms/3 mVpp; < 2 mArms (20 Hz - 20 mHz) recovery time: 50 μs (50% load change, minimum load 0.5 A) |
| Constant Current Mode | load regulation: < 0,2% + 3 mA line regulation: < 0,2% + 3 mA ripple and noise: < 3 mArms |
| Display | TFT-LCD 2,8" |
| Display Resolution | 5 digit voltage/4 digit current |
| Locking Key | + |
| Memory Save/Recall | 5 Sets |
| Power Source | AC 100 V/120 V/220 V/230 V ± 10%; 50/60 Hz |
| Standard Configuration Interface | LAN, USB Device |
| Insulation | case to terminal: ≥ 20 MΩ case to AC line: ≥ 30 MΩ (DC 500 V) |
| Operating Environment | temperature: 0°C - 40°C relative humidity: ≤ 70% |
| Storage Environment | temperature: -10°C - 70°C relative humidity: ≤ 70% |
| Dimension | 155 × 145 × 280 mm |
| Weight | 5,5 kg |
Video
Data Sheet
Download SIGLENT SPD1168X Data Sheet.
Package Contents
- Programmable DC Power Supply SIGLENT SPD1168X — 1 pc.
- Calibration Certificate — 1 pc.
- USB Cable — 1 set.
- Warranty Card — 1 pc.
- Power cable — 1 pc.
- USB cable — 1 pc.
- Software CD — 1 pc.
- Quick start guide — 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
