Overview
6 kg Warranty: 36 months
4-channel HR oscilloscope with 100 MHz bandwidth, 2 GSa/s sample rate, 12-bit A/D converter, 50 Mpts memory depth, and a vertical sensitivity of 500 μV/div to 10 V/div Read more
Inform of price reduction
Description

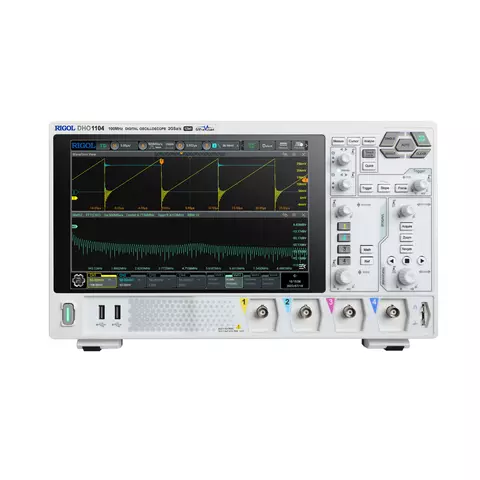

RIGOL DHO1104 is a high-performance 4-channel high-resolution oscilloscope featuring a 10.1" 1280×800 HD touch display with an interactive user-friendly interface, a bandwidth of 100 MHz, a real-time sample rate of up to 2 GSa/s, and waveform capture rate of up to 1,500,000 wfms/s in UltraAcquire mode. Four analog channels and an additional EXT channel ensure versatile signal analysis, while the 12-bit vertical resolution enhances the accuracy and fidelity of captured waveforms. The oscilloscope's memory depth can be expanded up to 100 Mpts for an ample storage capacity for waveform data.
RIGOL DHO1104 maintains a low noise floor at minimum settings, enabling precise measurements even in low-amplitude scenarios, and includes built-in serial decoders for popular protocols such as I²C, SPI, RS232/UART, and CAN to simplify the analysis of communication signals and facilitate protocol debugging.
Features
- Brand-new Centaurus chipset developed by RIGOL;
- 3 trigger modes: Auto, Normal, Single;
- 4 analog channels and 1 external channel;
- 12-bit vertical resolution;
- Analog channel bandwidth of 100 MHz;
- Real-time sample rate up to 2 GSa/s;
- Low noise floor at minimum settings;
- Memory depth up to 100 Mpts (optional);
- Minimum vertical sensitivity of 500 μV/div, enabling the capture of small signals in the microvolt range;
- Waveform capture rate up to 1,500,000 wfms/s in the UltraAcquire mode;
- User-friendly Flex Knobs for effortless interaction;
- Standard photoelectric encoder operating knobs, extending the device's service life;
- Standard USB Device & Host, LAN, and HDMI interfaces;
- Supporting web control interface (to display the oscilloscope's operation interface, input the device's IP address into a web browser);
- Wide range of compatible accessories
Technical Specifications
| Operational Specifications | ||
|---|---|---|
| Analog bandwidth (-3 dB) | 100 MHz | |
| Channels | 4 analog channel inputs, 1 EXT channel input | |
| Rise time (10% to 90%, typical) | ≤ 3.5 ns | |
| Sampling mode | Real-time sampling | |
| Sample rate of analog channels | 2 GSa/s (1 channel) | |
| 1 GSa/s (2 channels) | ||
| 500 MSa/s (4 channels) | ||
| Memory depth (standard) | 50 Mpts (1 channel) | |
| 25 Mpts (2 channels) | ||
| 12.5 Mpts (4 channels) | ||
| Memory depth (maximum, as an option) | 100 Mpts (1 channel) | |
| 50 Mpts (2 channels) | ||
| 25 Mpts (4 channels) | ||
| Waveform capture rate | Vector mode: 50,000 wfms/s | |
| UltraAcquire mode: 1,500,000 wfms/s | ||
| Vertical resolution | 12 bits | |
| Hardware real-time waveform recording and playback | max. 500,000 frames | |
| Peak detect | 2 ns | |
| Vertical System Analog Channels | ||
| Input coupling | DC, AC, GND | |
| Input impedance | 1 MΩ ± 1%, 50 Ω ± 1% | |
| Input capacitance | 19 pF ± 3 pF | |
| Maximum input voltage | CAT I 300 Vrms, 400 Vpk (DC + Vpeak) | |
| Input sensitivity range | 500 μV/div to 10 V/div | |
| Dynamic range | ±4 div (12 bits) | |
| Bandwidth limits (typical) | 20 MHz, FULL; selectable for each channel | |
| DC vertical offset accuracy | ≤200 mV/div (± 0.1 div ± 2 mV ± 1.5% of offset setting) | |
| >200 mV/div (± 0.1 div ± 2 mV ± 1.0% of offset setting) | ||
| ESD tolerance | ±8 kV (for input BNC) | |
| Horizontal System Analog Channels | ||
| Time base range | 2 ns/div to 1 ks/div | |
| Time base resolution | 400 ps | |
| Time-base delay time tange | Pre-trigger | -5 div |
| Post-trigger | 1 s or 100 div, the greater of the two values | |
| Analog channel-to-channel delay (typical) | ≤2 ns | |
| Acquisition System | ||
| Acquisition mode | Normal | Default mode |
| Peak detect | Capture of glitches as narrow as 2 ns | |
| Average | Selectable from 2, 4, 8, 16 up to 65536 | |
| High resolution | 14 bits, 16 bits | |
| UltraAcquire | Up to 1,500,000 wfms/s | |
| Trigger System | ||
| Trigger modes | Auto, Normal, Single | |
| Trigger sources | Analog channel (1~4), external trigger, AC Line | |
| Trigger bandwidth | Internal | Analog bandwidth |
| External | 200 MHz | |
| Trigger sensitivity | Internal | 0.50 div, ≥50 mV/div |
| 0.7 div (with noise rejection enabled) | ||
| External | 200 mVpp, from DC to 100 MHz | |
| 500 mVpp, from 100 MHz to 200 MHz | ||
| External trigger impedance | 1 MΩ±1%, BNC connector | |
| Trigger type | Edge trigger, Pulse trigger, Slope trigger, Video trigger, Pattern trigger, Duration trigger, Timeout trigger, Runt trigger, Window trigger, Delay trigger, Setup/Hold trigger, Nth Edge trigger, I2C, SPI, RS232/UART, CAN, LIN | |
| Product Specifications | ||
| AutoScale | Minimum voltage over 10 mVpp, duty cycle over 1%, frequency over 35 Hz | |
| Digital voltmeter | DC, AC+DCrms, ACrms | |
| Display | 10.1-inch 1280×800 capacitive multi-touch display | |
| Processor | Cortex-A72, 1.8 GHz, Hexa-Core | |
| System memory | 4 GB RAM | |
| Internal non-volatile memory | 8 GB | |
| Operating system | Android | |
| Power voltage | AC 100 to 240 V, 50 to 60 Hz | |
| Power | 400 VA max. (connect various interfaces, USB storage device, and active probes) | |
| Operating temperature | 0 to +50°C | |
| Dimensions | 358 × 215 × 121 mm | |
| Weight | 3.8 kg (net) / 5.4 kg (shipping) | |
User Manual
Download DHO1000 Oscilloscope Series User Manual.
Package Contents
- RIGOL DHO1104 digital oscilloscope — 1 pc.
- Power cord — 1 pc.
- USB cable — 1 pc.
- PVP3150 passive HighZ test probe — 4 pcs.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
