SIGLENT SHA852A Spectrum and Network Analyzer
sales team

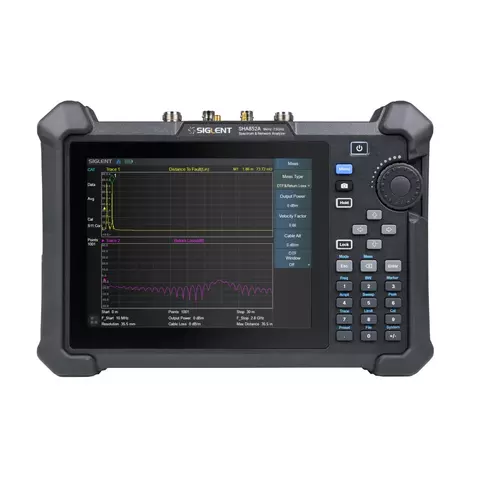

SIGLENT SHA852A is a versatile handheld spectrum analyzer and cable-and-antenna tester, offering a wide frequency range of up to 7.5 GHz. Designed with field engineers in mind, the SHA852A boasts an 8.4'' large touchscreen interface with convenient knob and key operation.
SIGLENT SHA852A provides automatic measurements and has various operation modes, making it highly suitable for tasks such as broadcast monitoring, channel power scanning, wireless interference detection, power monitoring, and electromagnetic compatibility testing. It also includes a built-in amplifier and independent signal source for added flexibility.
The cable-and-antenna tester functionality of the SIGLENT SHA852A is equipped with features like built-in DC voltage bias and a 1-path-2-port vector network analysis capability. This allows it to perform tasks such as TDR measurements, VSWR analysis, port matching debugging, insertion loss measurement, tower amplifier debugging, cable fault location, and Smith chart analysis.

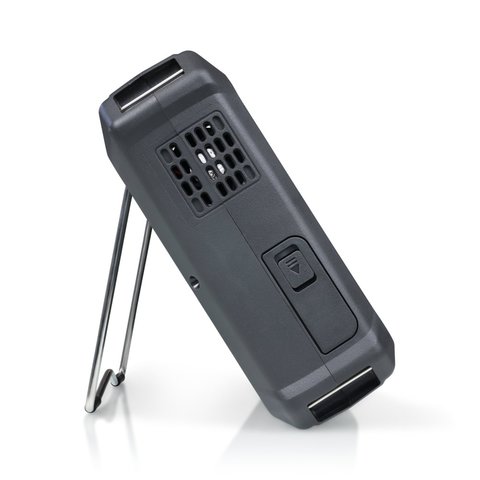

SIGLENT SHA852A comes with a standard bag and hand strap to either carry it over the shoulder or hold it securely by hand and has a working time of up to 4 hours on a single battery. For enhanced functionality, it can also be equipped with GPS and directional antenna options, making it a dependable tool for outdoor applications.
Features
- Spectrum analyzer frequency range: 9 kHz - 7.5 GHz;
- 3 modes: standard SA and CAT modes and an optional VNA mode;
- Cable and antenna test frequency range: 100 kHz - 7.5 GHz;
- Channel power, ACPR, harmonics, and TOI measurement option;
- Standard preamplifier;
- 8.4'' touch screen;
- 4-hour battery working time;
- Options:
- Full bandwidth source;
- Analog and digital signal modulation analysis mode;
- Advanced measurement kit with waterfall chart;
- GPS receiver and GPS logging
Technical Specifications
| Model | SHA851A | SHA852A |
|---|---|---|
| Spectrum Analyzer | ||
| Frequency range | 9 kHz - 3.6 GHz | 9 kHz - 7.5 GHz |
| Displayed average noise level | -165 dBm/Hz | |
| Phase noise (1 GHz, typical) | -104 dBc/Hz @ 10 kHz offset | |
| Preamplifier | Standard | |
| Cable and Antenna Analyzer | ||
| Frequency range | 100 kHz - 3.6 GHz | 100 kHz - 7.5 GHz |
| Vector Network Analyzer (Optional) | ||
| Frequency range | 100 kHz - 3.6 GHz | 100 kHz - 7.5 GHz |
| Dynamic range | 114 dB | |
| Additional functions | Advanced measurement kit, analog modulation analysis, digital modulation analysis, GPS location, independent source, DC bias out | |
| Modulation types (optional) | AM, FM, PM, ASK, FSK, MSK, PSK, DPSK, QAM | |
| Communication interface | LAN, USB Device, USB Host (USB-GPIB) | |
| Display | TFT LCD, 800 x 600 pixels, 8.4" multi-touch screen | |
| Battery life | 4 hours | |
| Dimensions | 33 × 23 × 10 cm | |
| Weight | 3.175 kg | |
User Manual
Download SIGLENT SHA850A Series Quick Guide.
Data Sheet
Download SIGLENT SHA850A Data Sheet.
Package Contents
- SIGLENT SHA852A spectrum analyzer — 1 pc.
- AC-DC adapter — 1 pc.
- Power cord — 1 pc.
- USB type-C cable — 1 pc.
- Rechargeable lithium battery — 1 pc.
- Portable bag — 1 pc.
- Quick start guide — 1 pc.
Compatibility
- SIGLENT SHA850-AMA Analog Modulation Analysis Software Option
- SIGLENT SHA850-DMA Digital Modulation Analysis Software Option
- SIGLENT SHA850-VNA Vector Network Analyzer Software Option
- SIGLENT SHA850-SOR Independent Signal Source Option
