Signal Generator FNIRSI SG-003A
id: 902550
0.5 kg
Availability in stock:
HK
Warranty: 6 months Compact 1-channel digital signal generator in a protective silicone case. Generates square waveforms with a frequency range of 0.001 Hz - 180 kHz. Read more
Inform of price reduction
Suggest your price

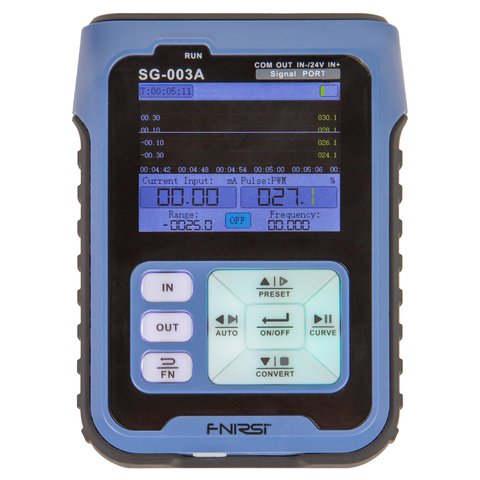

FNIRSI SG-003A is a pocket-sized single-channel digital signal generator that is supplied in a protective silicone case. The device generates voltage and current signals, simulating signals from sensors, control systems, and PWM signals. This signal generator is mainly used for debugging of industrial field PLC, process instrumentation, electric valve, etc.
Features
- An easy-to-use device with a user-friendly interface.
- Pocket-sized and weight is only 123 g.
- Auto power off function.
- Low battery indicator.
- Overcurrent protection.
- Backlight buttons and display.
- Built-in 3000 mAh battery; charged by USB-C.
Technical Specifications
Channels | 1 |
Frequency range | 0.001 Hz-180 kHz |
Waveform | square |
Active current output | 0-24 mA, accuracy ± (0,1%+0,005), resolution 0.01 mA, maximum load: 750 Ω |
Passive current output | 0-24 mA, accuracy ± (0,1%+0,005), resolution 0.01 mA, external power supply: 0-30 V |
Voltage output | 0-15 V, accuracy ± (0,1%+0,005), resolution 0.01 V |
PWM output (frequency) | 0-20 kHz, 45 kHz, 90 kHz, 180 kHz, accuracy ± 2%, resolution 1 Hz |
PWM output (operational cycle) | 0-100%, accuracy ± 2%, resolution 1% |
Current input measurement | 0-24 mA, accuracy ± (0,1%+0,05), resolution 0.01 mA |
Voltage input measurement | 0-30 V, accuracy ± (0,1%+0,05), resolution 0.01 V |
General Specifications | |
---|---|
Display | 2-inch LCD, 320×240 |
Interface | USB Type-C (5 V) |
Power | built-in 3.7V lithium battery with 3000 mAh capacity |
Continuous battery life | around 8 hours |
Working temperature | -0℃ ~ 50℃ |
Dimensions | 92 mm × 72 mm × 30 mm |
Net weight | 123 g |
Gross weight | 160 g |

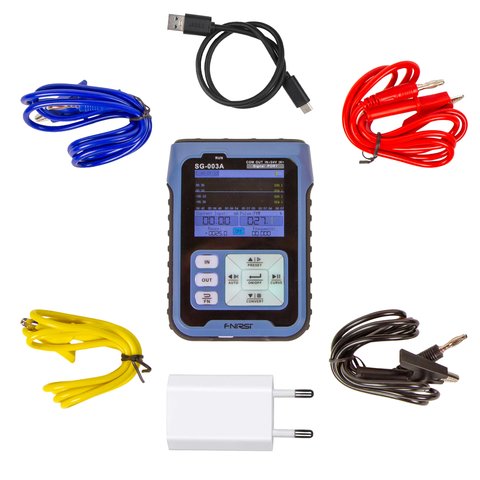

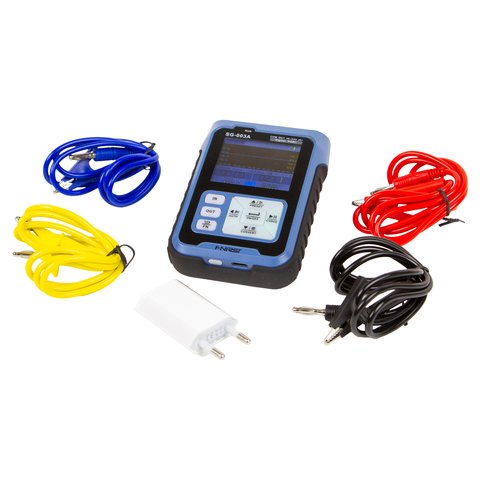

Package Contents
- Signal Generator FNIRSI SG-003A — 1 pc.
- Storage Bag — 1 pc.
- Power Cable — 1 pc.
- USB Cable — 1 pc.
- Alligator Clips — 1 set
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
