Overview
9 kg Warranty: 36 months
Single-channel signal generator with a frequency range of 9 kHz~4 GHz (CW mode). Frequency resolution: 0.001 Hz. Modulation types: AM, FM, PM. Read more
Buy wholesale and save
Inform of price reduction
Description

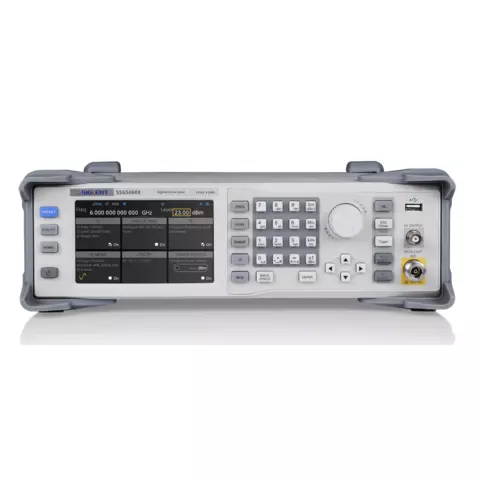

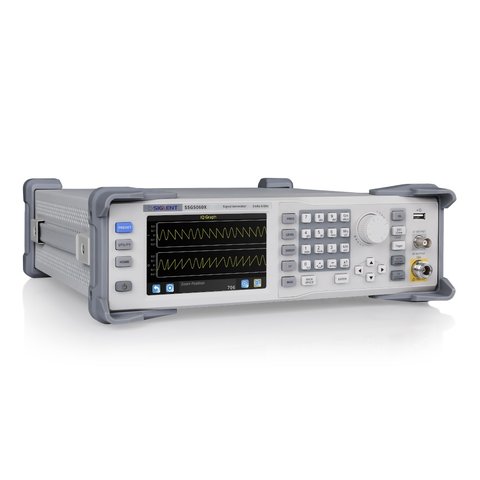

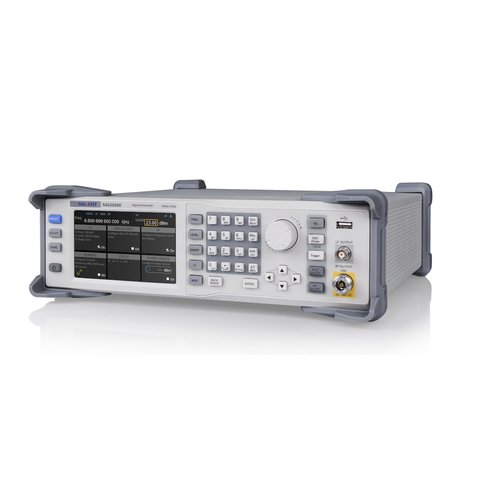

SIGLENT SSG5040X is a single-channel signal generator with a frequency range of 9 kHz ~ 4 GHz (CW MODE). The device can generate analog and vector signals. The SSG5000X series features the industry-leading performance in phase noise, spectral purity, bandwidth, EVM and output power measurements.
The SIGLENT SSG5040X is a powerful and reliable signal generator that is perfect for research and development, as well as for educational and industrial purposes.
Features
- Frequency range: 9 kHz - 4 GHz (CW MODE).
- Frequency resolution: 0.001 Hz.
- Phase noise: -120 dBc/ Hz @ 1 GHz, 20 kHz offset (typ.).
- User programmable flatness correction.
- Modulation: AM, FM, PM.
- Built-in digital communication standard waveform files such as 5G-NR, LTE, WCDMA, WLAN, Bluetooth, CDMA.
- Analog differential I/Q outputs.
- External analog I/Q input.
- 5 inch TFT capacitance touch screen, mouse and keyboard supported.
- Remote control.

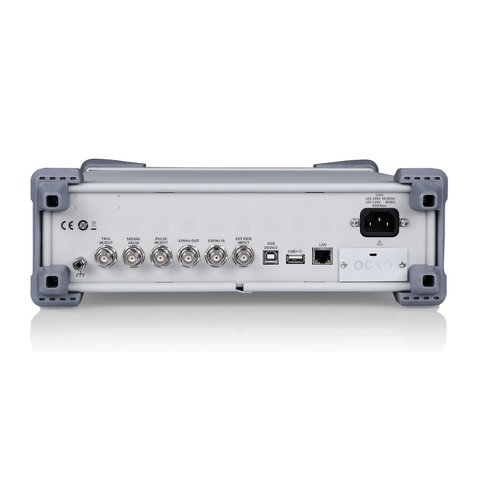

- Standard interfaces includes USB Host, USB Device (USBTMC), LAN (VXI-11, Socket, Telnet).
- Optional interface: GPIB.
Technical Specifications
| Model | SSG5040X | SSG5060X | SSG5040X-V | SSG5060X-V |
| Frequency Range | 9 kHz - 4 GHz (CW MODE) |
9 kHz - 6 GHz (CW MODE) |
9 kHz - 4 GHz (CW MODE); 10 MHz - 4 GHz (IQ MODE) |
9 kHz - 6 GHz (CW MODE); 10 MHz - 6 GHz (IQ MODE) |
| Frequency Resolution | 0.001 Hz | |||
| Amplitude Resolution | 0.01 dB | |||
| Level Accuracy | 0.7 dB (typ.) | |||
| Phase noise | -120 dBc/Hz @1 GHz, offset 20 kHz (typ.) | |||
| Display | 5 inch capacitance touch screen, RGB (800×480) | |||
| Dimensions | 338×113×369 mm | |||
| Weight | 5.3 kg | |||
User Manual
Download SIGLENT SSG5040X User Manual.
Datasheet
Download SIGLENT SSG5040X Datasheet.
Quick Start
Download Quick Start for SIGLENT SSG5040X.
Package Contents
- Signal Generator SIGLENT SSG5040X — 1 pc.
- Quick Start Guide — 1 pc.
- Guarantee Card — 1 pc.
- Power Cord — 1 pc.
- USB Cable — 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
